| Prod Model: |
LD4531A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimensions: |
25X19X8mm |
| Digit Height: |
0.45 Inch(11.5mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
None |
| Digit Number: |
3 Digit |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description
Features
Ø 11.5 mm (0.45 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins

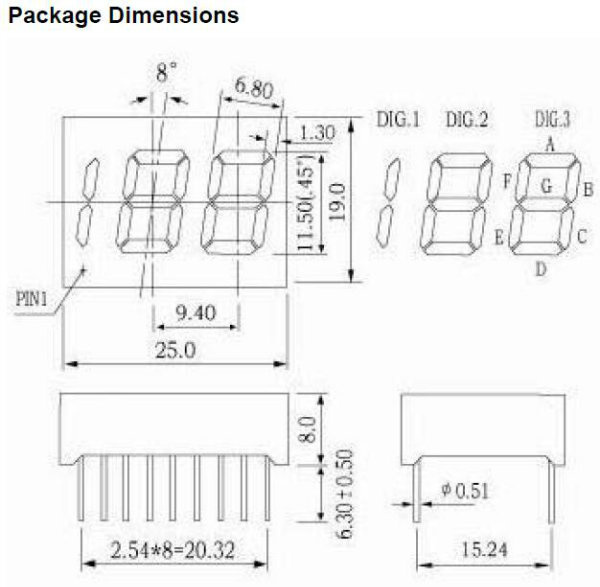

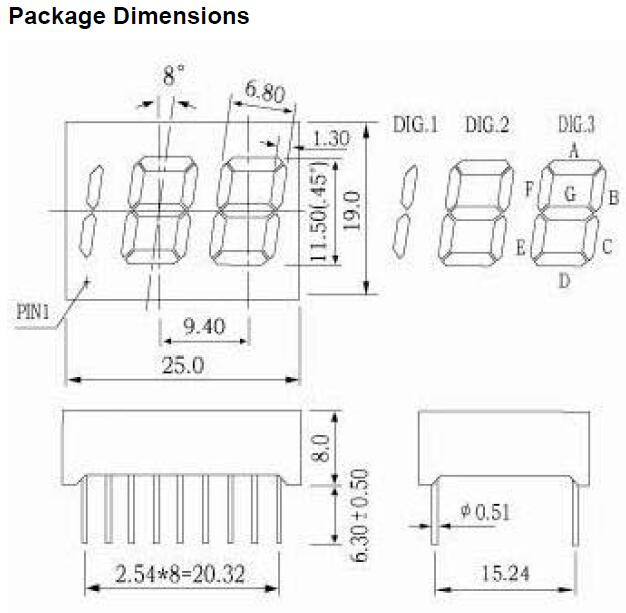

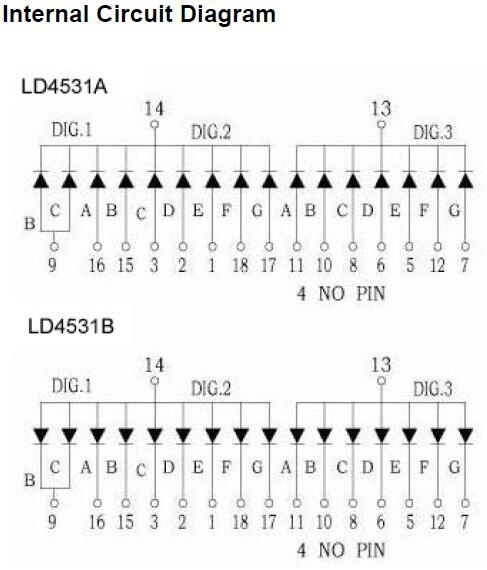

Selection Guide (Ta = 25 °C )
| Three Digits 7 Segment LED Display, Digit Height: 11.50mm(0.45inch), External Dimensions: 25x19x8mm (L x W x H) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD4531AR | LD4531BR | GaAlAs | Super Red | 645 | 8 | 10 | 8 | 10 |
| LD4531AD | LD4531BD | GaAlAs | Hi-Red | 645 | 18 | 25 | 18 | 25 |
| LD4531AO | LD4531BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD4531AY | LD4531BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD4531AG | LD4531BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD4531AUR | LD4531BUR | AlGaInP | Ultra Red | 645 | 30 | 45 | 30 | 45 |
| LD4531AUO | LD4531BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD4531AUA | LD4531BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD4531AUY | LD4531BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD4531AUG | LD4531BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD4531APG | LD4531BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD4531AUB | LD4531BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD4531AUW | LD4531BUW | InGaN | Ultra White | \ | 100 | 120 | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
How to produce these item?

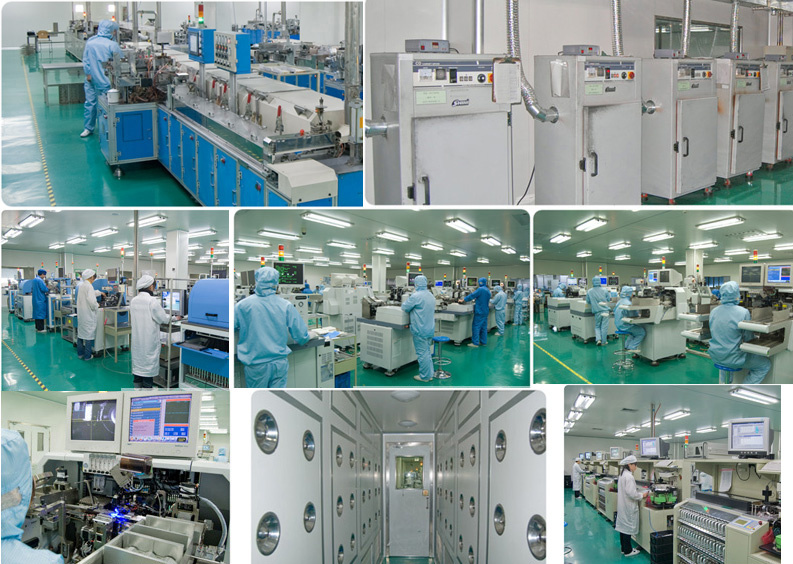

Factory viewing:
