| Prod Model: |
VV-42A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: 42 Inch TFT-LCD: |
Brightness (Nits):800CD/M2 |
| Maximum Resolution: 1920X1080 Pixels: |
Display Ratio: 16:9 |
| Application: |
Indoor |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Screen Size: |
≤17" |
| Interface Type: |
AV |
Product Description
Main Specification

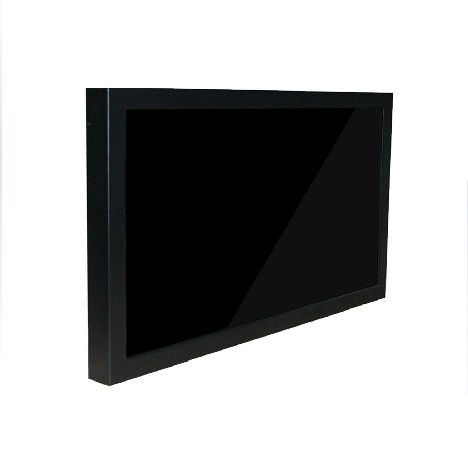

Model: 42 inch LCD CCTV monitor
Panel size: 42TFT-LCD/LED
Panel material: Metal casing
Display area(mm): 930(W)× 523(H)16: 9
Maximum resolution: 1920× 1080 pixels
Display color: 16.7M
Pixel Pitch(mm): 0.4845(H)× 0.4845(V)
Brightness (nits): 800CD/m2
Contrast: 2000: 1
Visual angle: 178° /178°
Response time: 5ms
Horizontal frequency: 30-75kHz
Vertical frequency: 56-75kHz
Life(hrs): >60, 000(hrs)
Input and output
Composite video input 3 (BNC× 2)
Y, Pb, Pr/Y, CB, Cr input 3 (BNC× 3)
S-video-Y/C input 2(BNCx2)
D-15 pin RGB input 1
HDMI 1
DVI 1
Composite video output 2 (BNC× 1)
Audio Left (RAC*2); Right (RAC*2)
Video
Color system: PAL/NTSC/SECAM
Compatible HDMI input/DVI: 480P, 576P, 720P, 1080I, 1080P
3D Comb filter: Yes
Video reduction noise: Yes
Menu language: Chinese/English( multiple language option required)
Power
Power supply: AC100V~240V, 50/60Hz
Maximum power consumption: 52W
Standby power consumption: 3W
Temperature
Working temperature: 0° C~50° C
Storage temperature: -20° C~60° C
Working humidity: 60%
Storage humidity: 60%
Appearance
Panel/appearance: White, black, customized
Panel material: Plastic casing
Installation wall-mounted, desktop (optional)
Vast vision industry Co., Ltd, Established in 2004, is a high-tech enterprise specialiazed in development, production and marketing of LCD/LED monitors and modulaes. We our campany emphasize small size ranging froam 2.4" to 20.1", can offer OEM/ODM service.
As a professional manufacture and exporters, we gain much honor in various field, u can see our monitor in security monitoring, hospital, supermarket, bank, on bus/car/truck/board, factory production line, BGA station, laboratory and some other special circumstance.
