41.5inch Elongated LCD Display
| Price: |
US $ 1100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P,Paypal |
| Prod Model: |
DE415TXP01 |
| Application: |
Semi Outdoor AD Player |
| Screen Size: |
40-50 Inches |
| Type: |
Network Version AD Player |
| Touch Screen Type: |
Infrared |
| Screen Technology: |
LCD |
| Interface Type: |
D-Sub(',VGA) |
| Remote Control: |
With Remote Control |
| OS: |
Android |
| Customized: |
Customized |
| Installation: |
Ertical Wall-Mounted Combined |
Product Description

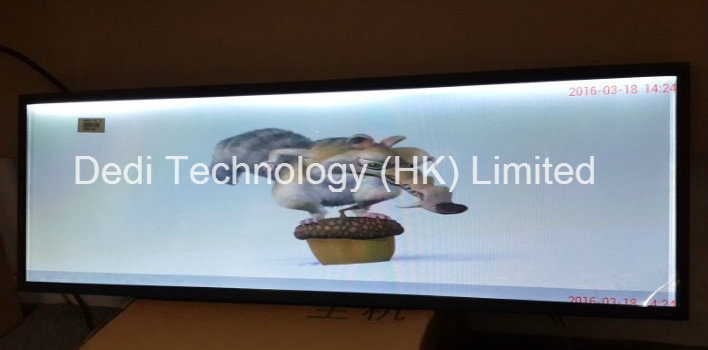

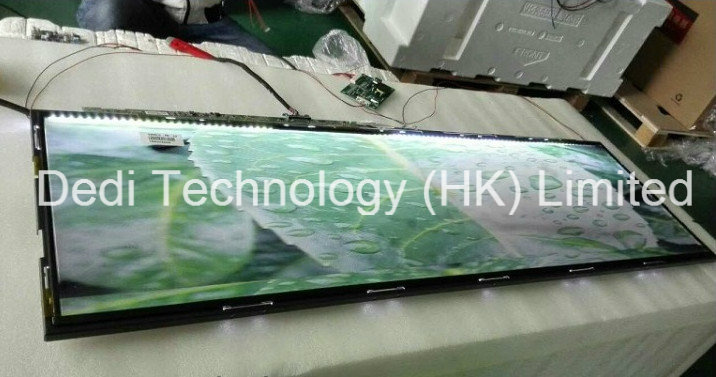

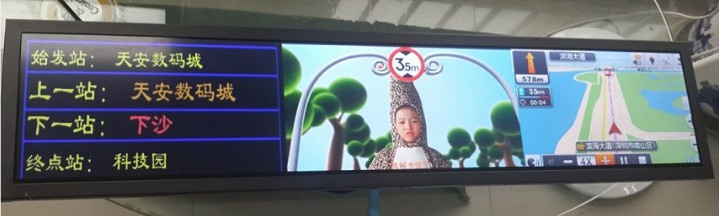

DE415TXP01 is a 41.5" TFT Liquid Crystal Display product with driver ICs and 2ch-LVDS interface. This product supports 1920 x 540 Full HDTV format and can display 16.7M colors (8-bit/color).
| Items | Specification | Unit | Note |
| | | | |
| Active Screen Size | 41.5 | inch | |
| | | | |
| Number of Pixels | 1920 X 540 | Pixel | |
| | | | |
| Display Area | 1018.01(H) x 285.5(V) | mm | |
| | | | |
| Pixel Pitch | 0.53025(H) x 0.53025(W) | mm | |
| | | | |
| Bezel Opening | 1021.5(H) x 289.5(V) | mm | |
| | | | |
| Outline Dimension | 1057.5(H) x 326.5(V) x 29.6(D) | mm | |
| | | | |
| Display Colors | 8 bit, 16.7M | Colors | |
| | | | |
| Display Operation Mode | Normally Black | | |
| | | | |
| Pixel Arrangement | RGB vertical stripe | | |
| | | | |
| Luminance, White | 700 (Center 1 point,Typ.) | cd/m2 | |
| | | | |
| Power Consumption | Total = 46 (Typ.) | W | LCD Open Cell = 11.76 W(Typ.) |
| Backlight = 46 W(Typ.) |
| | | |
| | | | |
| Surface Treatment | Anti-Glare, 3H | | Haze=2% |
