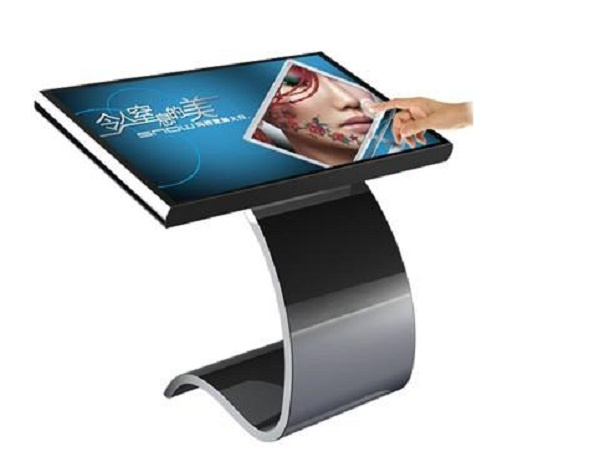

42inch Touch Screen
| Price: |
US $ 850-1100/Piece |
| Trade Terms: |
FOB,DAP,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
D420DR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
42inch |
| Resolution: |
1920*1080 |
| Brightness: |
1500nit |
| Contrast: |
4000:1 |
| Application: |
Indoor |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1920x1080 |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
8ms |
| 3D: |
Not 3D |
| Screen Size: |
42inch |
| Interface Type: |
USB,HDMI,VGA,DVI |
Product Description
42inch Wall Mouted PC LCD AD Screen
Specifications |
| Model No. | D420DR |
| Panel size | 42" TFT-LCD |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 4000:01:00 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Waterproof | Support |
| Touch Panel |
| Specification | Infrared Touch |
| positioning accuracy | ±2mm |
| Touch Media | Finger/touch pen opaque objects |
| Transmittance | ≥92% |
| Glass Hardness | 7H |
| Click Mode | two points |
| Response Time | ≤10ms |
| ClickLife Time | >=60M times |
| PC |
| Motherboard | H61 |
| CPU | I3-2100 dual cores four threads 3.1G |
| Memory | DDR3 1333MHZ 4GB |
| Hardware | SATA II320GB |
| Keyboard and Mouse(Optional) | wireless waterproof keyboard and mouse set |
| Interface | USB*4,VGA*1,DVI*1,HDMI*1,RJ45*1,Audio*1,MIC*1 |
| Software environment | Windows XP/ Windows 7/ Windows 2003 Server Enterprise Edition /Linux |
| Video |
| Color system | PAL/NTSC/SECAM |
| OSD display( screen menu display) |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power |
| Power supply | 100-240V AC 12V/ DC |
| Maximum power consumption | 230W |
| Standby power consumption | <3W |
| Temperature |
| Working temperature | -20°C~+80°C |
| Storage temperature | -40°C~+80°C |
| Working humidity | 25%~85% |
| Storage humidity | 20%~90% |
| Support signal format |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P/1080P |
| Appearance |
| Body dimension(Lx W x H)mm | 1000*500.*1300.2 ((for reference) |
| Panel color/appearance | White, black, customized |
| Panel material | Metal case SPCC |
| Installation | Floor-standing |
| Quality Standard | ISO9001,CCC |
| Sample leading time | 3-7 working days |
| Bulk order leading time | 12~15 working days |
| Payment term | T/T or Western union |
| Warranty | 1 year |
MOQ: 1 SET
Payment Tearm:100% TT
Warranty:1 Year
Packaging:Wooden Boxes
