| Prod Model: |
WVT-TP4-10.1A0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transparency: |
≥ 80% |
| Product Status: |
Stock |
| Working Voltage: |
5.0V |
| Certificate: |
CE, RoHS |
| Product Name: |
Resistive Touch Screen for LCD Display |
| Operate System: |
Windows 2000-XP/98/CE |
| Warranty: |
1 Year |
| Life Time: |
Over 1 Million Touches |
| Touch Technology: |
Resistive Touch Screen |
| Size: |
1.8"-23" |
Product Description
4 Wire Resistive Touch Screen for LCD display
4 wire resistive touch screen
Feature:
Panel size: 1.8'' to 23"
Power: USB
Response time: 10ms
Life span: > 1, 000, 000 touches
Linearity: ≤ 1.5%
Transmittance: ≥ 82%
Resistance: 200 ~ 950 0Hms
Surface durability: ≥ 3H
Operating temperature: -10° C - 60° C
4 Wire Resistive Touch Screen for LCD display
4 wire resistive touch screen
Works With The Operating Systems:
Windows 2000-XP
Windows 98
Windows CE
Linux
DOS
Ideal for use as POS (point of sale) or for giving directions or instructions touch screens are an eye-catching and technologically advanced way to communicate in pretty much any business:
4 Wire Resistive Touch Screen for LCD display
4 wire resistive touch screen
Advantage:
--Low cost solution, Low power consumption
--To be activated with any device
--Finger, gloved hand and stylus activation
--High accuracy and sensitivity
--High durability and reliability
--Contaminant proof and liquid resistance.
4 Wire Resistive Touch Screen for LCD display
4 wire resistive touch screen
Application
--Light industrial
--Home appliances
--Portable sport devices
--Access control terminals
--Portable medical devices
--Personal computer and office.
4 Wire Resistive Touch Screen for LCD display
4 wire resistive touch screen

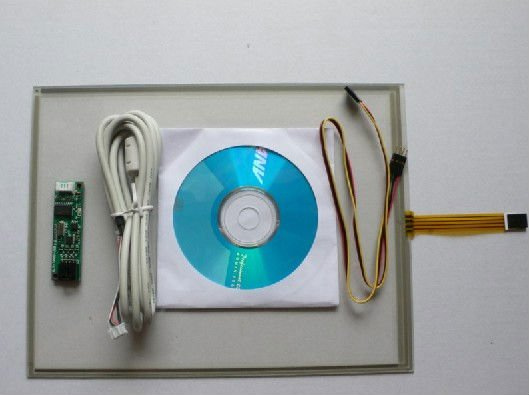

Package included:
Controller board
Connecting cable
Software
USB cable
Product Name Model Size Outside Area(mm) Viewing Area(mm) Active Area(mm
4 Wire Small Size WVT-PAC6.2A 6.2inch 150.00*90.00 140.30*80.00 137.50*77.20
4 Wire Small Size WVT-PAC6.2AI 6.2inch 150.00*90.00 139.50*78.70 135.50*74.70
4 Wire Small Size WVT-PAC6.2B 6.2inch 154.00*89.00 138.50*78.00 134.5*74.00
4 Wire Small Size WVTPAC6.2C1 6.2inch 154.5*92.50 141.00*81.00 135.10*74.7
4 Wire Small Size WVT-PAC6.2C 6.2inch 154.5*92.50 141.00*81.00 138.00*78.00
4 Wire Small Size WVT-PAC6.2D 6.2inch 148.00*90.00 139.00*79.00 137.00*77.00
4 Wire Small Size WVT-PAC6.2E 6.2inch 154.00*91.50 141.50*80.50 137.50*77.30
4 Wire Small Size WVT-PAC6.2F 6.2inch 139.00*99.50 132.00*89.50 128.00*85.50
|
Size |
1.8" - 23" |
|
Constrcution |
Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating |
|
Operating Force |
10g~100g |
|
Chattering |
≤12ms |
|
Surface Hardness |
Moths 3 |
|
Life Time |
More than 1 million touches in one location without failure |
|
Transparency |
≥80% |
|
Working Voltage |
5.0V |
|
Circuit grade |
DC5V 1mA |
|
Insulation impedance |
≥20MΩ(25V DC) |
|
Linearity |
≤1.5% |
|
Operating Temperature |
-30°C to 80°C |
|
Storage Temperature |
-40°C to 90°C |
|
Operating Humidity |
20%RH ~ 90%RH |
|
Storage Humidity |
10%RH ~ 90%RH |
|
Warranty |
1year |
|
No noted size common difference |
±0.20 |
