| Prod Model: |
WVT-M2R-19T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
USB |
| Product Name: |
Touch Screen |
| Size: |
10.4"-82" |
| Thickness: |
7.5mm for Sizes Below 24". |
| Open Frame: |
Optional (6.5mm) |
| Touch Technology: |
Infrared |
| Touch Points: |
2 Points |
| Installation: |
Built-out |
| OS: |
Windows,Linux,Mac,Android (with Wivi Android PC) |
| Warranty: |
1 Year |
Product Description

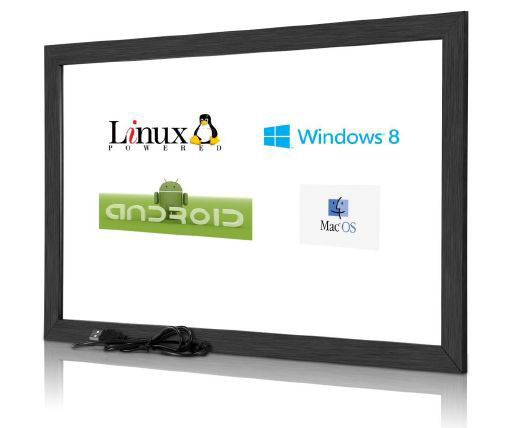

CE certificated, paypal accept. 19" touch screen for computer
WiViTouch touch screen for computer:
1. Aluminum alloy frame, It can be built-in installation or bulit-out;
2. High touch accuracy with dense tube design;
3. High and stability performance with fault-tolerant design;
4. Anti-sunlight, dustproof, Vanda-proof, Anti-Scratch
5. Easy to maintain and upgrade with built-in hardware self-test function;
6. Plug and play in multiple operating systems: Android(It suggests to use with our Android pc, since not every Android box is compatible with our touch screen ), Windows8(Genuine version, Ghost version ), Linux (If your Linux version does not support plug and play, please send WiViTouch your linux version, we will adjust the touch screen according to your Linux system), Mac, XP, Win7 OS.
7. Greatly extend the life of the product with no touch dormancy mechanism;
8. Warranty: 1 year.
Touch screen for computer
Typical Applications:
*Interactive whiteboard *Directories and Wayfinding *Hotel entertainment center
*Conferences *Mall kiosks *Overlay
WiViTouch is specialized in producing 4wire resisitve touch screen, 5 wire resistive touch screen, touch panel. Surface Acoustic Wave(SAW) touch screen, Multi touch Infrared touch screen overlay, IR Touch Panel frame, IR Touch Frame, LCD Touch Monitor, Openframe Touch Monitor, Industry Touch Monitor, Gaming machine Touch Monitor, Kiosk, Interactive touch foil, LCD touch Panel PC, Computer, bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, touch solutions, Optical touch screen, Surface Capacitive Touch Screen Panel and Projection Capacitive touch screen panel, Any size of touch panel we can customized for you. Just let us know the requirement. For Multitouch IRTouch Panel Overlay, there are Dualtouch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points for you to choose. No ghost point. Etc.
|
Size |
|
General Size |
10.4" to 82" |
|
Customized Size |
9.7" to 150" |
|
Performance |
|
Touch accuracy |
±2mm (for 40" touch screen) over 90% of the touch sensitive area |
|
Resolution |
32768*32768 |
|
Response Speed |
2-5ms (two-point touch) |
|
Mechanical |
|
Input Method |
Finger, gloved hand, or any other pointer |
|
Touch durability |
Unlimited |
|
Sampling rate |
60PT/s |
|
Touch Activation Force |
No pressure required |
|
Optical |
|
Light Transmission |
Up to 100% (no glass), AR glass 92%, Tempered glass 88% |
|
Environmental |
|
Temperature |
Operating: 0°C ~ 55°C |
|
|
Storage: -30°C ~ 80°C |
|
Relative Humidity |
Operating:10% to 90% RH(non-condensing) |
|
|
Storage:10% to 90% RH(non-condensing) |
|
Electrical |
|
Power Supply |
USB |
|
Agency Approvals |
CE, FCC Class B |
|
Interface |
USB 2.0(full-speed) |
|
Operating Systems |
Windows 7\Windows XP\Windows Vista\Linux\Mac\Win8\Android OS |
|
Life Time |
5 years |
