| Prod Model: |
WVT-M2R-50EW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50inch |
| Model: |
Wvt-M2r-50ew |
| Touch Points: |
2 Touches |
| Interfaces: |
USB / RS232 |
| Resolution: |
4096*4096 |
| Respond Time: |
Less Than 8ms |
| Operation System: |
Windows, Mac, Android, Linux |
| Available Sizes: |
15inch -- 500inch |
| Certifications: |
CE, RoHS, FCC |
| Warranty: |
1 Free Year |
Product Description

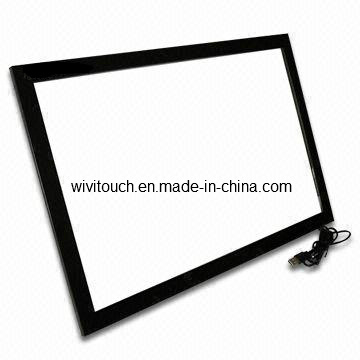

Multi touch screen
--Multi-touch function screen
--IP65 Available
--Support zoom in/out, display rotation
--Withstands severe environments
--Stable, no-drift calibration performance
--Vandal- and abrasion-resistant screens, ideal for rugged applications
--Parallax-free performance for LCD multi touch screen
--Operable in various light conditions, indoor and outdoor
|
|
|
Available Sizes:
|
32'',42'',46'',47'',50'',52'',55'',60'',65''
|
Custom sizes available upon request
|
Performance
|
|
points
|
2/4/6/10/12/16/32 points
|
Touch Mode
|
Multi-touch
|
Resolution(Interpolation)
|
4096*4096
|
Linearity
|
1mm
|
Response Speed
|
7ms - 20ms
|
Mechanical
|
|
Input Method
|
Finger or gloved hand (rubber ,cloth or leather)
|
Touch Times
|
Unlimited
|
Touch Activation Force
|
No minimum touch activation force is required
|
Minimum Touch Object
|
2.5mm X2.5mm
|
Optical
|
|
Glass:
|
Without glass
|
Light Transmission
|
100%
|
Gloss
|
Antiglare surface(curved or flat):95 ± 15glossunitsor65 ± 15gloss units
|
Environmental
|
|
Temperature
|
Operating Range: -20°C~ 70°C;
|
|
Storage Range:-40°C ~85°C
|
Relative Humidity
|
Operating Range: 0%~90%RH (no dew falls)
|
|
StorageRange:0%to95% RH(no dew falls)
|
Altitude
|
Up to3,000m
|
Ambient Light
|
Directsunlight90°to±30°tothe display surface Touch detection operational
|
Direct sunlight all angles to display surface Free of false touch reports
|
Electrical
|
|
Operation Voltage
|
Typical +DC 5V,+4.75Vto+5.25V
|
Power Supply
|
Size under 52"(include 52")USB or PS/2Interface,power ripplemax.200mVrms
|
Size above 52"(52"not included):external AC-DC power adaptor
|
Interface
|
Full Duplex USB2.0(Full Speed)Plug and play compatible
|
SerialRS-232. Baud Rate: 9600,8DataBits,1Stop Bit, No Parity
|
Current
|
Typical 150MA@+5VDC;350mA, maximum
|
Power
|
<1.5W, operating current<300mA
|
Electrostatic Protection
|
15kVair/8kVcontactdischarges (EN61000-4-2,1995:Level 4)
|
Controller
|
Integration inside touch panel
|
Agency Approvals
|
CE, FCC, Rohs
|
Operating System
|
|
Operating System
|
windows7.TUIO Protocol.
|
