Prod Model: |
FP5004 |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
Type: |
Professional Amplifier |
Usage: |
KTV System |
Used For: |
Professional |
Tube Type: |
Transistor Amplifier |
Function: |
Post Amplifier |
Sound Channel: |
4.1 |
Output Number: |
4 |
Voltage: |
AC 220V |
Element Number: |
Push-Pull Amplifier |
Conductive Mode: |
H |
Product Description
FEATURES

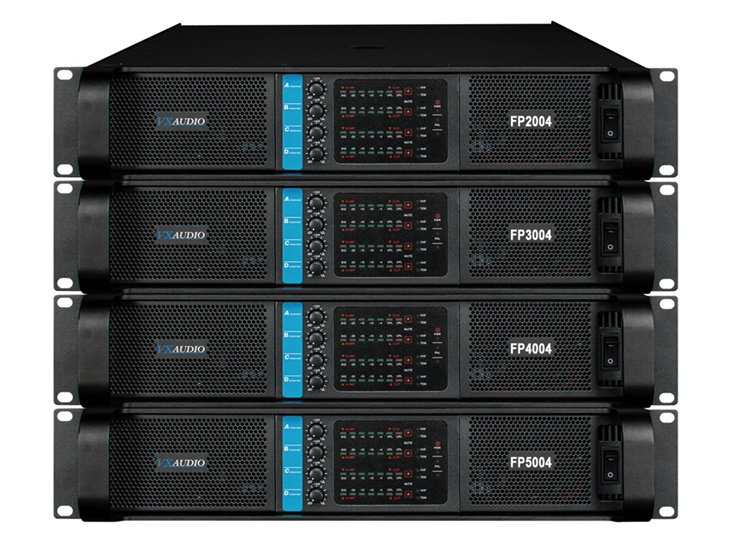

FP Series provides four-channel amplifier, 200W t0 500W per channel output power, and can easily switch and bridge connection or a combination of flexible and powerful state of the output power to meet the various requirements of various professional applications on different occasions.
Three high circuit design highly efficient, highly reliable and high power output.
Power transistor thermal superconducting technology.
Hysteresis Offset Class H.
Complete and reliable protection circuit.
Model | FP5004 |
Stereo Power 8Ω | 4*550W |
Stereo Power 4Ω | 4*850W |
8Ω BTL | 2*1600W |
Frequency Response | 5--50K±0.5dB |
THD+N | <0.05%@8Ω1/3Po |
S/N Ratio | >99dB |
Slew Ratio | 30V/us |
Damping Factor | >400 |
Crosstalk | >65dB@8Ω1KHz |
Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
Input Sensitivity | 1V |
Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
Height | 2U |
Gross Weight | 30KG |
Dimensions | 650*585*158mm |
