| Prod Model: |
FP2004 |
| Markets: |
North America,South America,Southeast Asia,Africa |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
H |

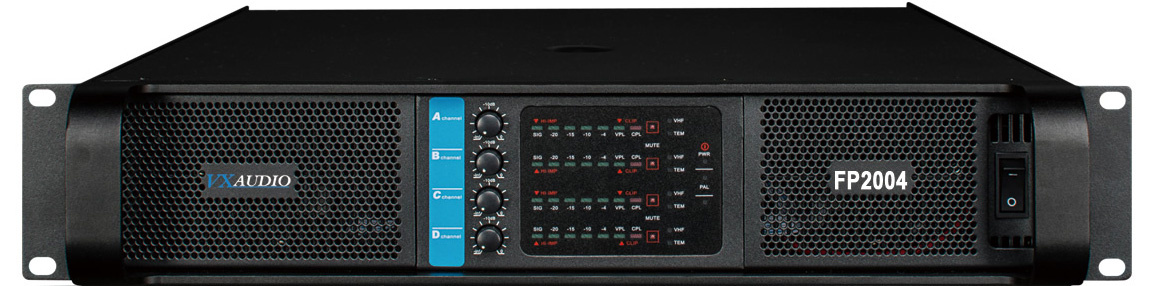

Product Description
FEATURES

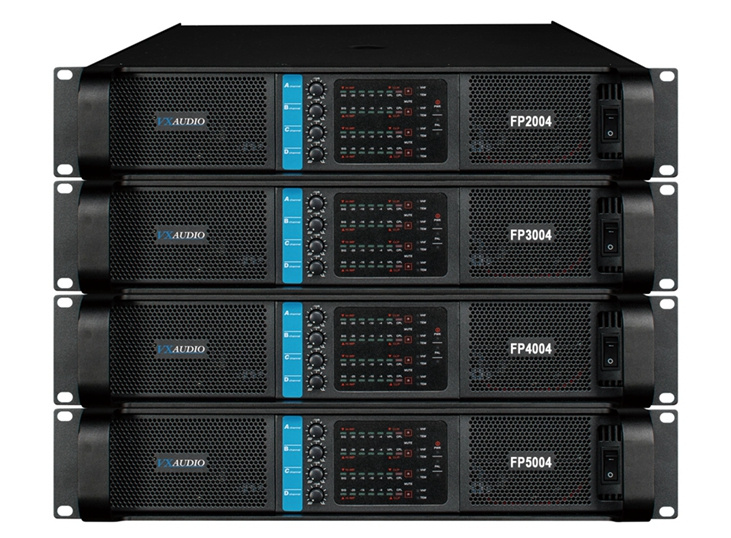

FP Series provides four-channel amplifier, 200W t0 500W per channel output power, and can easily switch and bridge connection or a combination of flexible and powerful state of the output power to meet the various requirements of various professional applications on different occasions.
Three high circuit design highly efficient, highly reliable and high power output.
Power transistor thermal superconducting technology.
Hysteresis Offset Class H.
Complete and reliable protection circuit.
| Model | FP2004 |
| Stereo Power 8Ω | 4*200W |
| Stereo Power 4Ω | 4*330W |
| 8Ω BTL | 2*650W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω1/3Po |
| S/N Ratio | >99dB |
| Slew Ratio | 30V/us |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 2U |
| Gross Weight | 30KG |
| Dimensions | 650*585*158mm
|
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
