Prod Model: |
VC-MDRH8000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
8-36V Wide Range Voltage Input |
Shockproof: |
Super Double Universal Shockproof System |
G-Sensor: |
Built in G-Sensor Module |
Wireless: |
Support GPS, 3G, WiFi for Optional |
Storagy: |
Support SD Card and Hard Disk Storage |
Alarm: |
Multiple Sensor Alarm and Alarm Linkage |
PTZ: |
Support Local and Remote PTZ Control |
Video: |
4 Chnnals Video Input, 1 Channal Video Output |
Audio: |
2 Channal Audio Input, 1 Channal Audio Output |
Compressed Format: |
H.264 |
Application: |
Commercial DVR |
Operating System: |
Linux |
Video Compression: |
H.264 |
Audio Input/Output: |
4 Channel |
Video Input/Output: |
4 Channel |
Remote Control: |
With Remote Control |
Interface Type: |
Airplug |
Type: |
Car DVR for Mobile Security |
Product Description

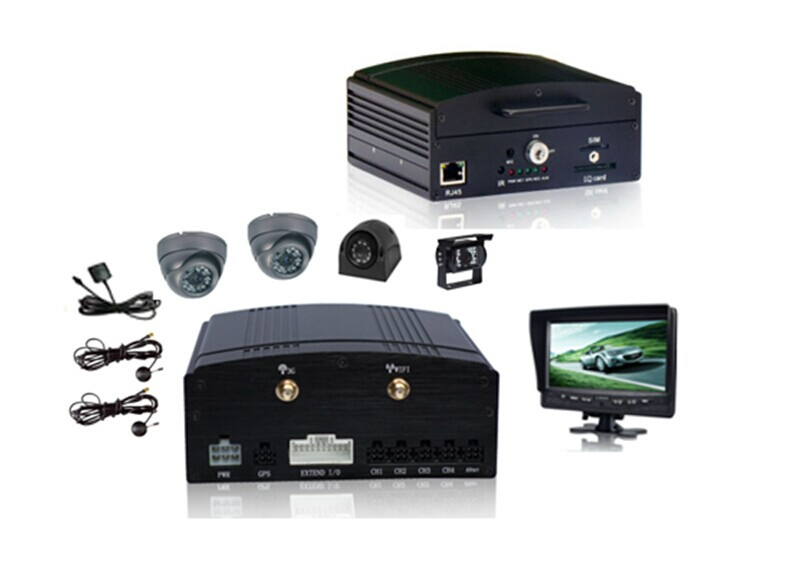

H. 264 3G GPS WIFI Gsensor Vehicle Mobile Security DVR with HDD and SD Card Storage
Model: VC-MDRH8000 VC-MDRS8000
Description:
VC-MDRH8000 / VC-MDRS8000 is a high level hard disk / SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, integrates latest H. 264 AV codec standard, high capacity hard disk storage, mature shock absorption technology, network streaming media, AV noise reduction, wide range voltage design and patent power-off protection technology, support WIFI, 3G, GPS for optional, brief outward, easy installing, system is safe and reliable.
Functional Feature:
8-36V wide range voltage input, with overvoltage protection function.
Super double universal shockproof system
Built in G-sensor module
Support GPS, 3G, WIFI for optional
Support SD card and hard disk storage
Support advertising screen docking, support mobile surveillance(for optional), support communication with peripheral equipment
Patent UPS power-off protection technology
Support trajectory playback
GPS over speed alarm, acceleration alarm, motion detection alarm
Support alarm trigger capture
Phone dialing function, IP call function, disk preheating (for optional)
Mobile monitoring center platform management software (for optional)
Data redundant storage technology
Support local and remote PTZ control
Startup recording by default, support auto timed, alarm & manual recording
Support to connect speed sensor input, speed audio video synchronous recoding.
Multiple sensor alarm and alarm linkage
Support to record multiple status, such as open the door, brake, turn, whistle.
External dimension: 142(W) x62(H) x123(D) mm 142(W) x36(H) x123(D) mm
Item |
Description |
Operation system |
Linux |
GUI |
Setup system parameters with remote controller |
Security management |
Support user password, supervisor password management; support encryption transmission |
Video |
Video input/output |
4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
Dual stream |
Support |
OSD |
Time & date, vehicle ID, GPS etc |
Compression |
H.264. Hisilicon high performance processor is applied. |
Preview function |
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
Video resolution |
CIF, HD1, D1,4D1 adaptive |
Video quality |
Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest |
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional |
Audio |
Audio input/output |
1-channel input; 1-channel output |
Compression |
G.726 |
Recording |
Storage media |
H8000 support Hard Disk+SD card, S8000 support only SD card |
File format/system |
ASF/ FAT32 |
Recording mode |
Startup recording by default, support auto,timed, alarm & manual recording |
Recording search |
Search recording video files by time, type, storage device, etc. |
Recording playback |
Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
Alarm |
Alarm input |
5-channel I/O alarm input |
Alarm recording |
Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
Alarm output |
2-channel alarm output |
Storage space |
Support the setting of remain storage space alarm function |
Functional alarm |
Overspeed alarm, gsensor alarm, voltage alarm,snapshot alarm, motion detection alarm |
Communication interface |
RS232, RJ45 10M/100M self-adaption Ethernet interface |
Wireless transmission (optional) |
Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; |
GPS (optional) |
Support external GPS module |
Data remote transmission |
Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
PTZ control |
Support PTZ control function by local remote controller or client software; |
Parameter configuration |
Support parameter configuration |
G-sensor |
Built-in |
System upgrade |
Support hard disk and SD card / Remote upgrade |
Power supply & consumption |
Power supply management |
ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
Input voltage |
DC:+8V ~ +36V |
Output voltage |
+12V@4*0.5A;[email protected] |
Power-off protection |
Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs |
Power consumption |
Less than 10W in normal working state; less than 0.5W in standby mode |
Working environment |
Temperature |
Normal: 0 ~ +60 degree
Hard disk pre-heating: -25 ~ +60 degree |
Humidity |
10% to 95% |
Dimension |
H8000:142(W) x62(H) x123(D) mm, S8000:142(W) x36(H) x123(D) mm |
Weight |
H8000:net weight:1000g , S8000:net weight:550g |
