| Prod Model: |
LD3651A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |

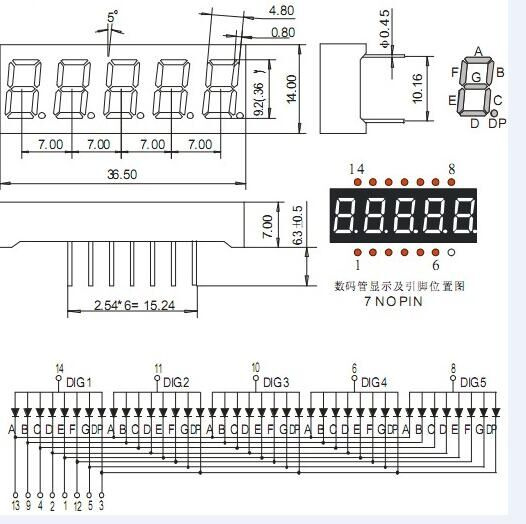

| Outline Dimensions: |
36.5X14X7mm |
| Digit Height: |
0.36 Inch(9.2mm) |
| Emitting Color: |
Red Color |
| Dp Number: |
5PCS |
| Digit Number: |
5 Digits |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |

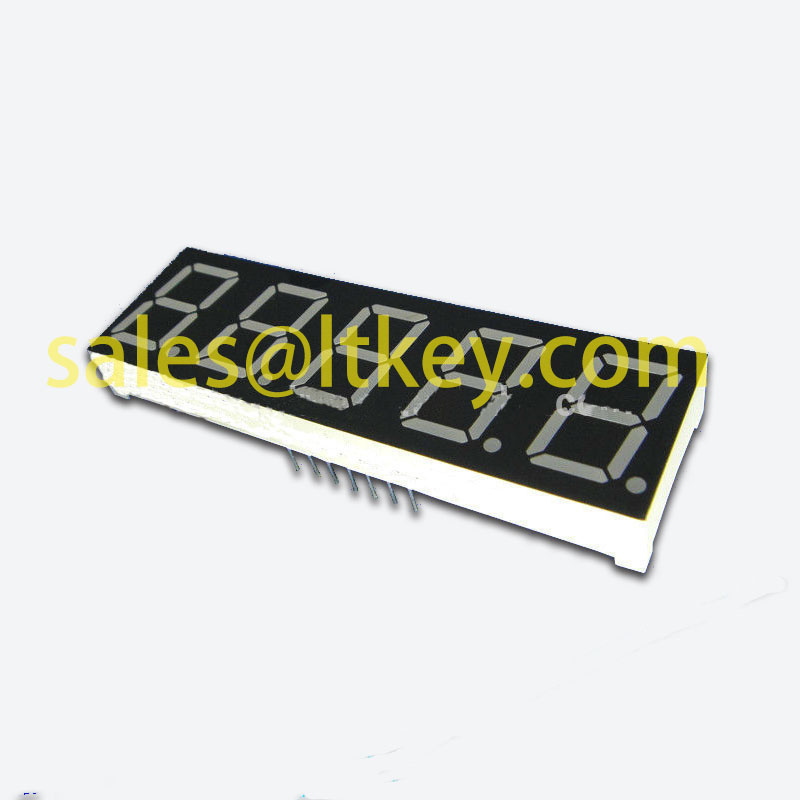

Product Description
Features
Ø 7.60 mm (0.30 inch) digit high Ø Excellent digit appearance Ø Wide viewing angle Ø Range of emitted colors Ø I.C. compatible Ø Low power consumption Ø White segment Ø RoHS compliantAvailable options Ø Alternative emitting luminosity:Standard or high brightness versionØ Alternative emitted colorØ Alternative segment colorØ Alternative fontØ Common Cathode is availableØ Cropped terminal pins| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD3651AR | LD3651BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
| LD3651AD | LD3651BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
| LD3651AO | LD3651BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD3651AY | LD3651BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD3651AG | LD3651BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD3651AUR | LD3651BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD3651AUO | LD3651BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD3651AUA | LD3651BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD3651AUY | LD3651BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD3651AUG | LD3651BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD3651APG | LD3651BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD3651AUB | LD3651BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD3651AUW | LD3651BUW | InGaN | Ultra White | \ | 100 | 120 | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Electrical Characteristics & Absolute Maximum Ratings | Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] |
| Forward Voltage@ IF=20mA | Reverse
Current
VR=5V | Power Dissipation | DC Forward Current | Peak Forward Current[2] |
| Typ. | Max. |
| Super Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Hi-Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Orange | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Yellow | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Green | Per Seg. | 2.2 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.2 | 2.5 | 30 | 80 | 30 | 100 |
| Ultra Red | Per Seg. | 1.9 | 2.6 | 30 | 60 | 30 | 100 |
| Per DP | 1.9 | 2.6 | 30 | 60 | 30 | 100 |
| Ultra Orange | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Amber | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Yellow | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Green | Per Seg. | 2.1 | 2.6 | 30 | 75 | 30 | 100 |
| Per DP | 2.1 | 2.6 | 30 | 75 | 30 | 100 |
| Pure Green | Per Seg. | 3.5 | 4 | 30 | 110 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 110 | 30 | 100 |
| Ultra Blue | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Ultra White | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Unit: | \ | V | V | uA | mW | mA | mA |
Notes: 1. At Ta = 25 °C.2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse. How we produce our LED products?

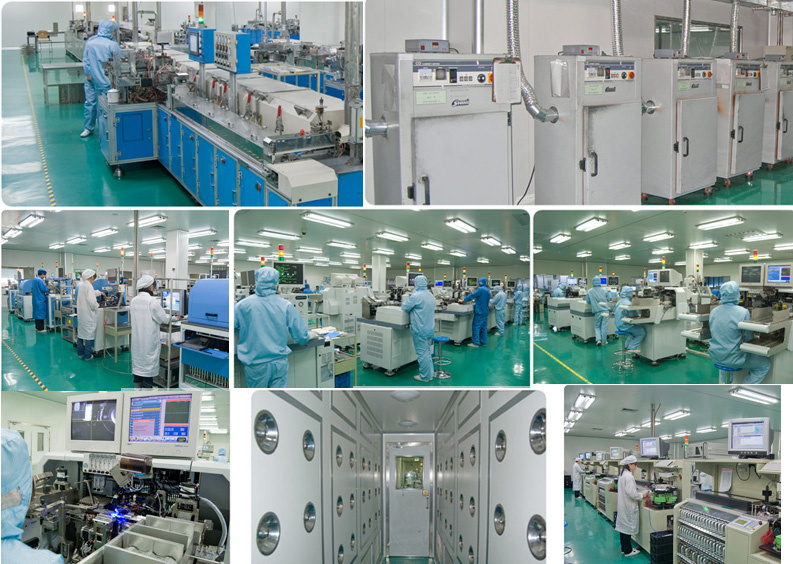

Factory view:
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.
LightKey has many Famous business partners in the world.
"Keep Improving" is our our tenet.
