Product Description
Key specification:

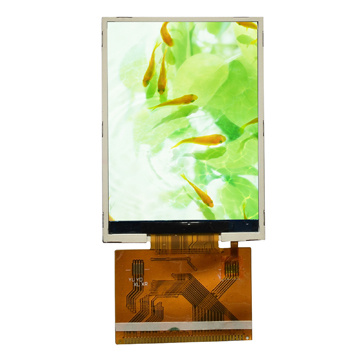

1>Part No:TS8028G-1
2>Active screen size: 2.8inch TFT
3>Display mode: Transmissive, Normally white
4>Resolution: 240*320dots
5>Number of color: 262K
6>Outline Dimension: 49.8W*68H*3.2T(mm)
7>Active Area: 43.2W*57.6H(mm)
8>View Angle: 6 o'clock
9>Interface: MCU 18Bit
10>Driver IC: ST7789S
11>Input Voltage: 2.4V-3.3V
12>Backlight: White led(4 leds parallel)
13>Brightness: 300cd/m
14>Operating temp: -20'c to 70'c
15>Storage temp: -30'c to 80'c
16>Pin NO:32Pins
17>Leadtime of samples: 2-3days
18>Leadtime of mass production: 15-18days
20>Website:www.lcdstar.com
