| Prod Model: |
TS8026Y |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |

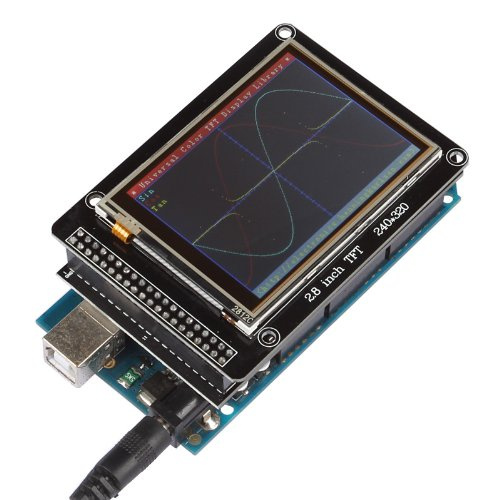

Product Description
Key specification:
1>Part No:TS8026Y
2>Active screen size: 2.8inch TFT
3>Display mode: Transmissive, Normally white
4>Resolution: 240*320dots
5>Number of color: 262K
6>Outline Dimension: 50W*69.2H*3.9T(mm)
7>Active Area: 43.2W*57.6H(mm)
8>View Angle: 12 o'clock
9>Interface: 8080 parallel 8bit
10>Driver IC: ST7789S
11>Input Voltage: 2.8V-3.3V
12>Backlight: White led(4 leds parallel)
13>Brightness: 300cd/m
14>Operating temp: -20'c to 70'c
15>Storage temp: -30'c to 80'c
16>Pin NO:25Pins
17>Resistive touch panel: 49.6W*68.8H(mm)
18>Leadtime of samples: 2-3days
19>Leadtime of mass production: 15-18days
21>Website:www.lcdstar.com
Established in 1998, Shenzhen Techstar Electronics Co., Ltd. Specializes in developing and manufacturing LCD display and LCD modules.
The Company not only boasts the industry professionals but also have the latest production lines and advanced technology. We can provide the TFT, OLED, E-INK LCD modules range from 1.44 inch ~9.0 inch which are widely used in Mobile Phone, GPS, Educational Electronics, household appliances, PDA and other appliances.
WUpon our effort and service, our company gets highly-positive remarks from many brand business both home and abroad and establishes long-term business cooperation.
WBased on the business motto of "Credit, Innovation, responsibility and excellence" and insisted on the quality guideline of "Quality-oriented, keeping improving, Customer Satisfaction", we always take that to be High-quality LCD Module Supplier in the worldwide as a vision.
Techstar---Working hard to service customer and worth your long-last trust.
