Product Description
Key specification:
1>Part No:TS8340N

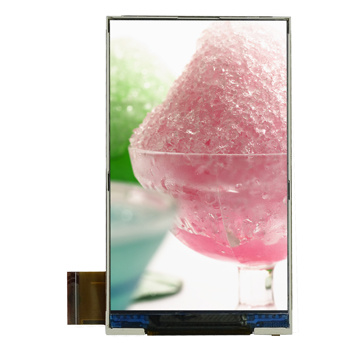

2>Active screen size: 4.0inch TFT
3>Display mode: Transmissive, Normally white
4>Resolution: 480*800dots
5>Number of color: 16.7M
6>Outline Dimension: 56.74W*97H*2.2T(mm)
7>Active Area: 51.84W*86.4H(mm)
8>View Angle: 6 o'clock
9>Interface: Mipi-2CH
10>Driver IC: OTM8019A
11>Input Voltage: 2.3-3.3V
12>Backlight: White led(8 leds parallel)
13>Brightness: 400cd/m
14>Operating temp: -20'c to 70'c
15>Storage temp: -30'c to 80'c
16>Pin NO:26Pins
17>Leadtime of samples: 2-3days
18>Leadtime of mass production: 15-18days
20>Website:www.lcdstar.com
Established in 1998, Shenzhen Techstar Electronics Co., Ltd. Specializes in developing and manufacturing LCD display and LCD modules.
The Company not only boasts the industry professionals but also have the latest production lines and advanced technology. We can provide the TFT, OLED, E-INK LCD modules range from 1.44 inch ~9.0 inch which are widely used in Mobile Phone, GPS, Educational Electronics, household appliances, PDA and other appliances.
WUpon our effort and service, our company gets highly-positive remarks from many brand business both home and abroad and establishes long-term business cooperation.
WBased on the business motto of "Credit, Innovation, responsibility and excellence" and insisted on the quality guideline of "Quality-oriented, keeping improving, Customer Satisfaction", we always take that to be High-quality LCD Module Supplier in the worldwide as a vision.
Techstar---Working hard to service customer and worth your long-last trust.
WWebsite: www.lcdstar.com
