| Prod Model: |
LA550 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
FEATURES

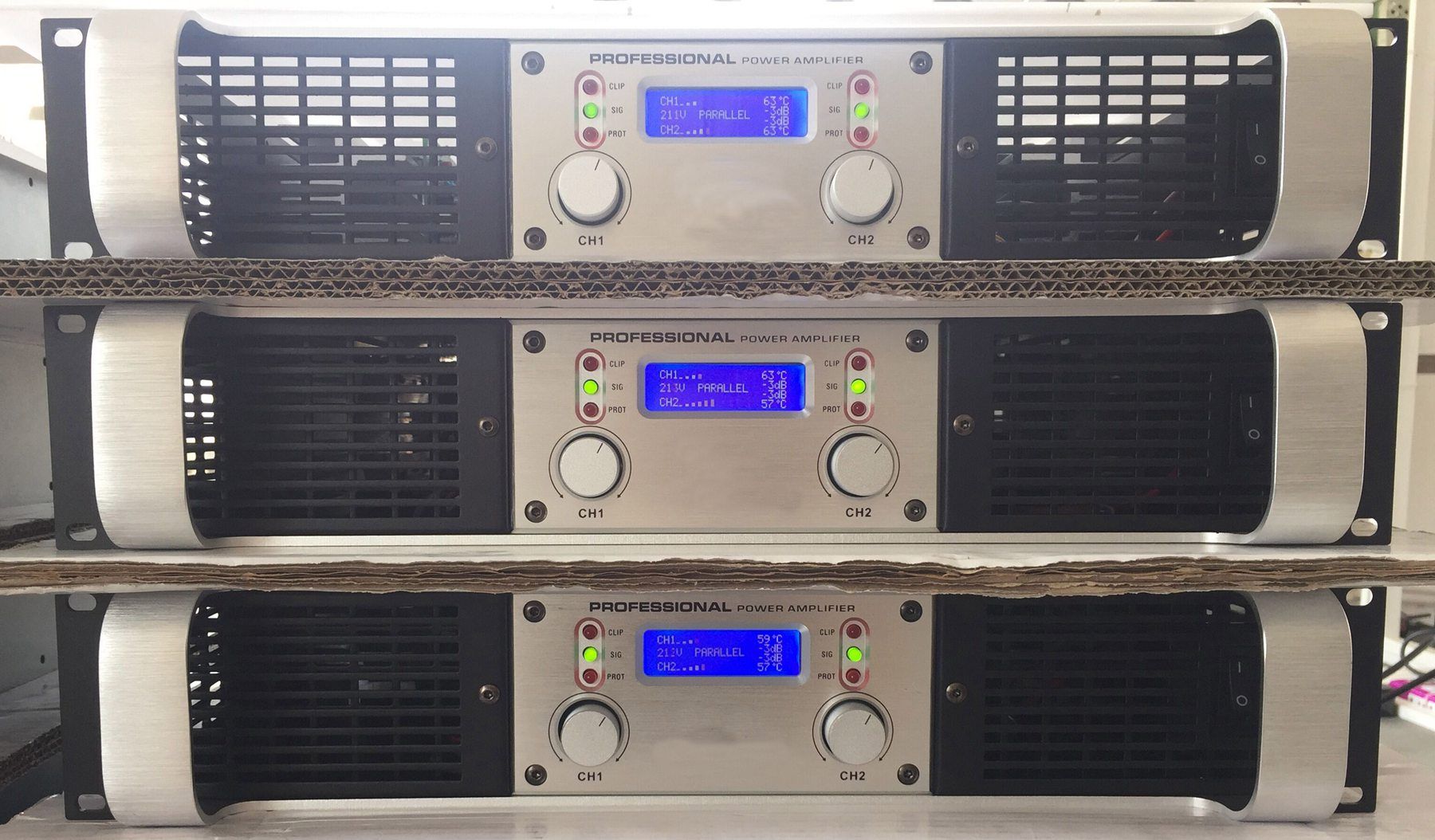

LCD display work mode and temperature.
LA series Multiple ound protection features such as over-current,over-voltage, over-temperature,overload,DC, and VHF and so on.
MA series used the excellent component,the key component exact machting and remain the full margin.After the improve of Class H.,ueds higher technology.Compare the traditional Class H,MA series reduces fever,reduces interference,increase the reliability.
| Model | LA 550 |
| 8ΩStereo Power | 2*550W |
| 4ΩStereo Power | 2*880W |
| 2ΩStereo Power | 2*1100W |
| 8ΩBTL | 1650W |
| 4ΩBTL | 2050W |
| Frequency Response | 5--50K+-0.5dB |
| THD+N | <0.05%@8Ω1KHz |
| S/N Ratio | >97dB |
| Slew Ration | 20Vu/S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Output Circuitry | ClassH |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
|
| Height | 2U |
| Gross Weight | 22KG |
| Packing Dimensions | 575*570*158mm |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
