| Prod Model: |
Xincheng |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness Of Inner Tank: |
0.4mm |
| Material Of Inner Tank: |
SUS304 Stainless Steel |
| Insulation Of Tank: |
55mm Polyurethane |
| Diameter Of Tank: |
470mm |
| Coating Of Panel: |
Blue Titanium |
| Thickness Of Panel: |
10cm |
| Frame Angle: |
20 to 80 Degree |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Titanium |
| Collector Components: |
Flat-plate |
| Composition: |
Connecting Pipe |
| Certification: |
CCC |
Product Description

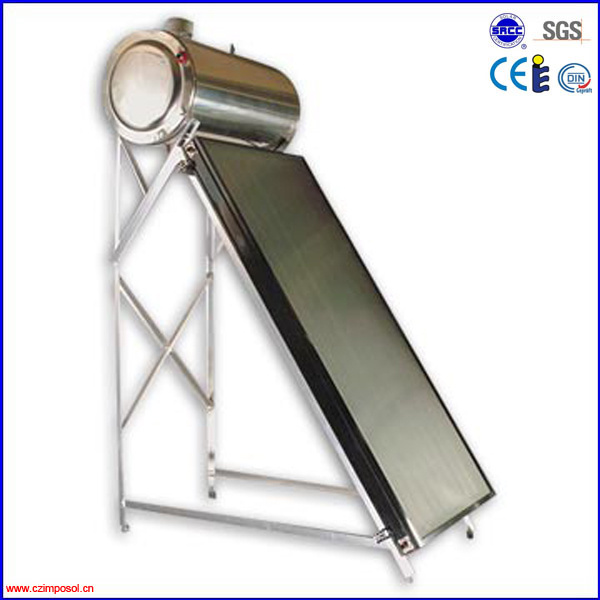

Flat panel solar water heater
1) Header pipe: Copper pipe, Absorbing fin: Aluminum or copper ( Specification of flat plate pls see "BaoBei series " flat-plate solar collector in my website )
2) Outer tank shell: Coloured steel or stainless steel,
3) Inner tank: Stainless steel 3042B or 316, 100L-350L
4) Insulation: By polyurethane Thickness: 55-65mm
5) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
6) Optimal installation angle: 20-80 degree
7) Inlet & Outlet: 1/2" or 3/4"
1. Flat-plate collector doesn't require vacuum with steady thermal performance. Perfect unity and long-term use.
2. In flat-plate collector system, water or working fluid flow in the metal pipe without touching the glass cover, so the tipe will not burst for sudden heat or sudden cold.
3. Flat-plate collector can be installed without space or be installed compactly. It not only supplies hot water but also owns the roof feature functions such as insulation, shading, water-proof and etc., which substitutes some even all of the roof materials.
4. The heat collector can be designed in various shape, size can be designed to match building materials and the structure.
5. Good pressure performance enables stability of the system. To learn more about Solar water heater services, contact us today.
Certificate: SRCC, Solar Keymark, CE and ISO9001
Model |
IPFT-100-GS/SS |
IPFT-150-GS/SS |
IPFT-200-GS/SS |
IPFT-300-GS/SS |
flat
plate
solar
collector | quantity
dimensions
light area
coating
header
insulation | 1
1,030*2,030mm
1*2.00
selective absorbing
Cu 22 mm
Glass wool | 1
1,030*2,030mm
1*2.00
selective absorbing
Cu 22 mm
Glass wool | 1/2
1,030*2,030mm
1/2*2.00
selective absorbing
Cu 22 mm
Glass wool | 2/3
1,030*2,030mm
2/3*2.00
selective absorbing
Cu 22 mm
Glass wool |
water
tank | capacity
diameter
operating pressure
insulating layer
insulation thickness
connections
inner material
outer material | 100L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS316L
color steel/SUS | 150L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS317L
color steel/SUS | 200L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS318L
color steel/SUS | 300L
540mm/580mm
6bar
polyurethane
50mm
3/4″
SUS 304/SUS319L
color steel/SUS |
| support | material
Anti-corrosin
use | hot Galvanized steel
Powder coated
Flat and slope roof installation |
connection
pipe | Material
Diameter
insulating material
insulation thickness | flexble stainless steel pipe
DN20-3/4″
elastomer rubber with protective PE film
20mm/13mm |
|
|
|
|
|
|
|
|
Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
