| Prod Model: |
AD2208WST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Touch Screen Panel AD Player |
| Application: |
Indoor AD Player |
Product Description

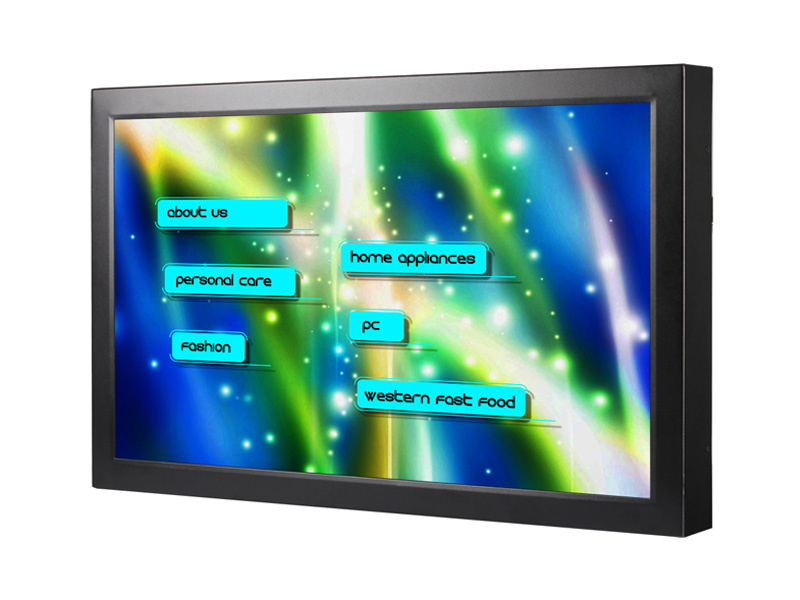

22 inches Indoor Retail Supermarket Shelf LCD touch display
Key Functions
1. Play video by simply touching a screen icon corresponding to the video.
2. Timer function: The player turns on/off at the same time everyday according to your setting.
3. Update contents of the memory card simply by inserting an USB flash drive.
Main Functions
1. Play video by simply touching a screen icon corresponding to the video; Built-in 21.5 inch (16: 9) TFT LCD screen Easy-to-install on supermarket shelves, desk top and showcase etc.
2. Play from:
--Compact flash card (CF card)
--USB flash drive
--Built-in memory (Optional)
3. Update contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card.
4. Timer function: The player powers on / off automatically everyday or every week at the preset time.
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.
6. Infra-red motion sensor: The sound of the player starts automatically when the sensor detects an approaching viewer.
7. Theft-protection device effectively prevents the player and CF/SD card from being stolen in public place.
8. With professional mounting brackets; Easy to hang on supermarket shelves, wall or stand on table.
Technical Specifications
1. TFT LCD screen:
LCD Size: 21.5 Inch
Active area: 476.64 (W) * 268.11 (H) (mm)
Pixel Pitch: 0.248 (W) * 0.248 (H) (mm)
Screen Ratio: 16: 9
Resolution: 1920 X 1080 (H*V)
Brightness: 250CD/m2
Color: 16.7M (8-bit)
Contrast Ratio: 1000: 1
View Angle: 85° /85° /80° /80° (L/R/U/D)
Response Time: 1.3/3.7 ms
2. Touch Panel:
Transmittance: ≥ 95(Max. 100%), No glass
Operating pressure: N/A
Life time: More than 5 years
Surface hardness: Equal to 5mm tempered glass
Type: Infrared
Response time: 13ms --- 14ms
3. Compatible file formats:
Picture formats: JPEG, BMP
Video formats: MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, RM, RMVB
4. Play from:
Memory card: CF/SD card
Built-in flash memory: Optional, confirm before production
USB: High speed USB 2.0 OTG (Host)
5. Output:
Built-in stereo loudspeaker power: 2 X 2W
6. Others:
Input Voltage: AC100V-240V (50Hz-60Hz)
Power Supply: DC4A, 48W (MAX)
Casing: Metal
Body Size: 540(L) * 337(W) * 490(H) (mm)
Body Weight: 7.7 (kg)
Standard Accessories: AC power adaptor, Users manual, Software CD, Remote control, Spare screws
7. Neutral packing:
Unit Size: 60(L) * 14.5(W) * 40(H) (cm)
Unit Weight: 8.8 (kg)
Carton Size: 61(L) * 31(W) * 43(H) (cm)
Carton Weight: 18 (kg)
Units Per Carton: 2 PCS
