| Prod Model: |
p10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outdoor: |
IP65 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
20mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Density: |
2500 |
Product Description
Indoor Led Displays/high Resolution Rgb Led Display Front Access SMD p3 p4 p5 p6 p7.62 p10 p12.5 indoor full color led display
The most cost effective LED display for outdoor application, being introduced to the market for more than 10 years.
We have to say, for outdoor advertising, P20 & P16, are the most reliable products since ever!

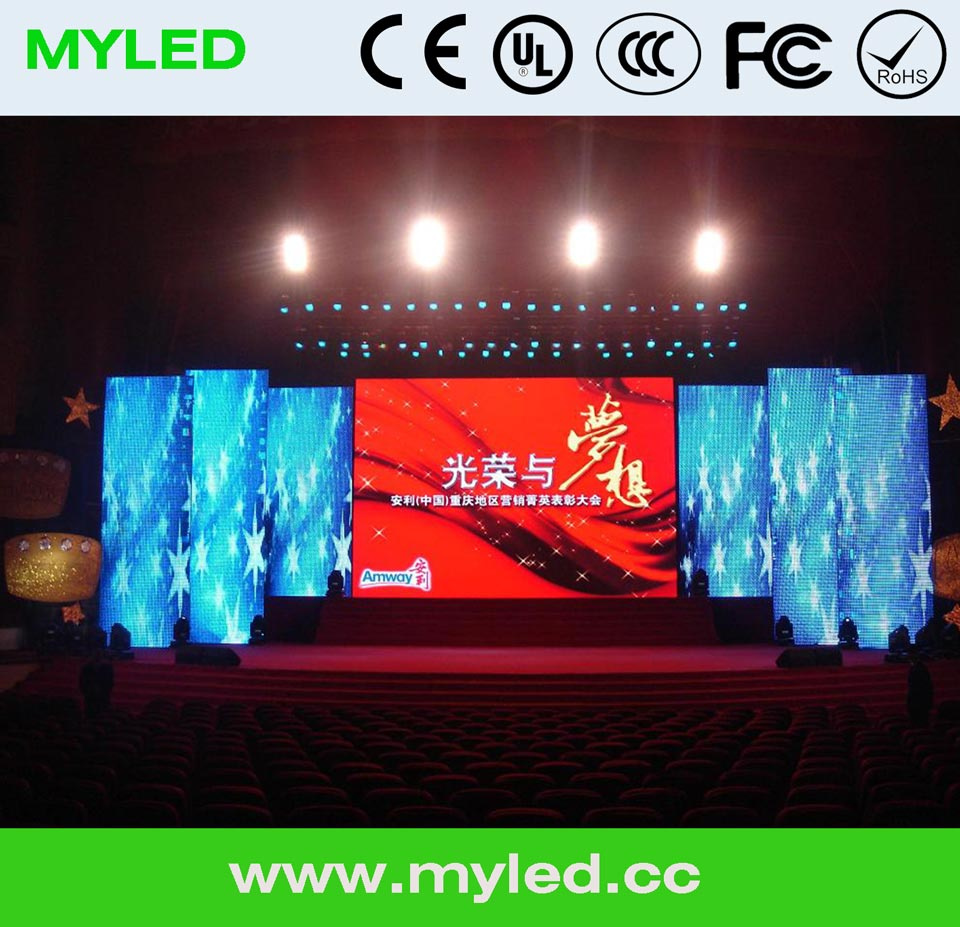

Myled indoor full color led display afford idea display solution for our clients.Various purposes such as for sports,events,and conventions,
require flexibit,effective messaging systems. According to the using purpose ,the products be classified to stadium LED display,advertising LED
display,stage LED Display,curtain LED Display,mobile LED Display,flexible LED Display.rental LED Display.
Series already perform well in advertising ,big celebration in China. And exported to Asia, Europe, South America, North America, Africa and Middle
East and other regions.
myled indoor full color led display Special advantage:
1.LEDs. we select super led tips with high brightness, broad viewing angle(H140degree, V140degree), all the LEDs are ageing for 72 hours before assembly,
when in modules, also aging for 72 hours, after assembly into a screen, still aging 72 hours. so the final LEDs are aging at least for 216 hours, up to 9 days.
2.Modules. we use 2R1G1B pixel configuration to realise high brightness. you may find some lower price suppliers but also same brightness. if you note,
maybe they use is 1R1G1B, in this case, can cut down much cost but also cut down the life of the display. why? because to reach the same brightness,
1R need more current, well for 2R display, each R just need half current. This just like one man and a team to take a burden, A man just can undertake,
but two more easily. and our modules case is PVC, which is more durable and have a stronger ability in bask, anti-ultraviolet and Difficult to deformation
than Plastic ones.
3.Cabinets. they are used in galvanized steel, anti-salt, anticorrosive and waterproof.
use state-of-the-art LED drive IC-MBI5026, brightness can up to 8000cd/m2, live color video and vivid image with 256 grey level.
for outdoor led displays, all of them are IP 65 and designed to withstand harsh environmental conditions, such as sun glare, heat, cold, and humidity.
you can see more details in the quotation.
5.Packing: anti-shaking wooden case, which is lighter than normal wooden case but more protective to the goods.
6. Spare parts for free. our screen's scotoma rate is below 0.0002, but To prevent accidental, we provide some free spare parts according to
the size of screen.
7. Warranty for 24 monthes.
8. Technology support: we have full hardware and software files available for all you need, we are here to working for you.
Specifications:
Technical Parameter | PH4 | PH5 | PH6 | PH7.62 | PH8 | PH10 |
| Brightness(cd/m*m) | 2000 | 2000 | 2000 | 2000 | 2000 | 1500 |
| Viewing Angle | 140° /140° | 140° /140° | 140° /140° | 140° /140° | 140° /140° | 140° /140° |
| Pixel Configuration | SMD 3IN1 | SMD 3IN1 | SMD 3IN1 | SMD 3IN1 | SMD 3IN1 | SMD 3IN1 |
| Pixel Pitch | 4mm | 5mm | 6mm | 7.62mm | 8mm | 10mm |
| Pixel matrix per panel | 32*32 | 32*32 | 32*16 | 32*16 | 32*16 | 32*16 |
| Module Size | 128*128mm | 160*160mm | 192*96mm | 244*122mm | 256*128mm | 160*160mm |
| Display resolution | 62500 | 40000 | 27777 | 17222 | 15625 | 10000 |
| Cabinet size | 768*768*120mm | 960*960*120mm | 960*768*120mm | 976*976*120mm | 1024*768*120mm | 1280*960*120mm |
| Cabinet weight | <35kg/m2 | <35kg/m2 | <35kg/m2 | <40kg/m2 | <40kg/m2 | <50kg/m2 |
| Refresh Rate | >300Hz/s | >300Hz/s | >300Hz/s | >300Hz/s | >300Hz/s | >300Hz/s |
| Input power(max) | 900W/m2 | 900W/m2 | 900W/m2 | 1200W/m2 | 1300W/m2 | 800W/m2 |
| Input power(typical) | 650W/m2 | 650W/m2 | 650W/m2 | 650W/m2 | 650W/m2 | 450W/m2 |
| Driving type | 1/16 scan | 1/8 scan | 1/8 scan | 1/8 scan | 1/8 scan | 1/4 scan |
| Working temperature | -20 degree ~70 degree |
| Working voltage | 190-250VAC/90-130VAC |
| Grey scale/color | RGB each 256 levels /16.7M |
| Operation humidity | 10%-95% |
| Input voltage | 5V |
| Input signal | DVI, S-VIDEO, RGB,VGA and etc |
| Control system | Control cards + PCTV non-linear control card + DVI card optical fiber transmission(optional) |
| Life span | >50,000 hours |
| Malfunction dot rate | Below 0.0001 |
| Operating system | Windows 98/XP/2000, Vista |
| Control software | LED studio |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
