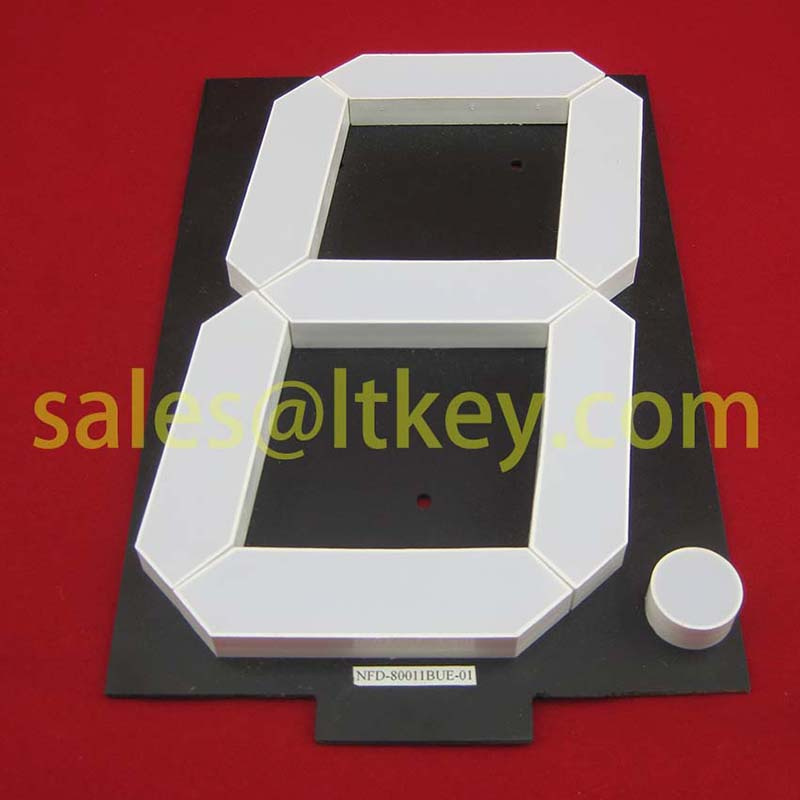

20 Inch Assembly 7 Segment LED Display
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LD20011A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |

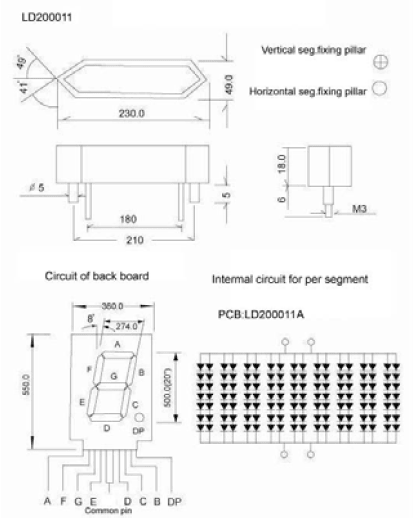

| Outline Dimensions: |
360.00X550.00 mm |
| Digit Height: |
20 Inch(500mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
1PC |
| Digit Number: |
1 Digit |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description
Features
Ø 500mm (20 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide
| Single Digit 7 Segment LED Display, Digit Height: 76mm(3inch), External Dimensions: 73.00x110.0x10.0mm (LxWxHmm) |
| Part No. | Chip | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg |
| Min. | Typ. |
| LD30014AR | LD30014BR | GaAlAs | Super Red | 640 | 72 | 90 |
| LD30014AD | LD30014BD | GaAlAs | Hi-Red | 640 | 162 | 225 |
| LD30014AO | LD30014BO | GaAsP | Orange | 625 | 63 | 81 |
| LD30014AY | LD30014BY | GaAsP | Yellow | 588 | 72 | 90 |
| LD30014AG | LD30014BG | GaP | Green | 568 | 63 | 81 |
| LD30014AUR | LD30014BUR | AlGaInP | Ultra Red | 640 | 270 | 405 |
| LD30014AUO | LD30014BUO | AlGaInP | Ultra Orange | 625 | 405 | 540 |
| LD30014AUA | LD30014BUA | AlGaInP | Ultra Amber | 605 | 270 | 405 |
| LD30014AUY | LD30014BUY | AlGaInP | Ultra Yellow | 595 | 270 | 405 |
| LD30014AUG | LD30014BUG | AlGaInP | Ultra Green | 573 | 270 | 405 |
| LD30014APG | LD30014BPG | InGaN | Pure Green | 525 | 1080 | 2700 |
| LD30014AUB | LD30014BUB | InGaN | Ultra Blue | 470 | 270 | 405 |
| LD30014AUW | LD30014BUW | SMD | Ultra White | \ | 900 | 1080 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
