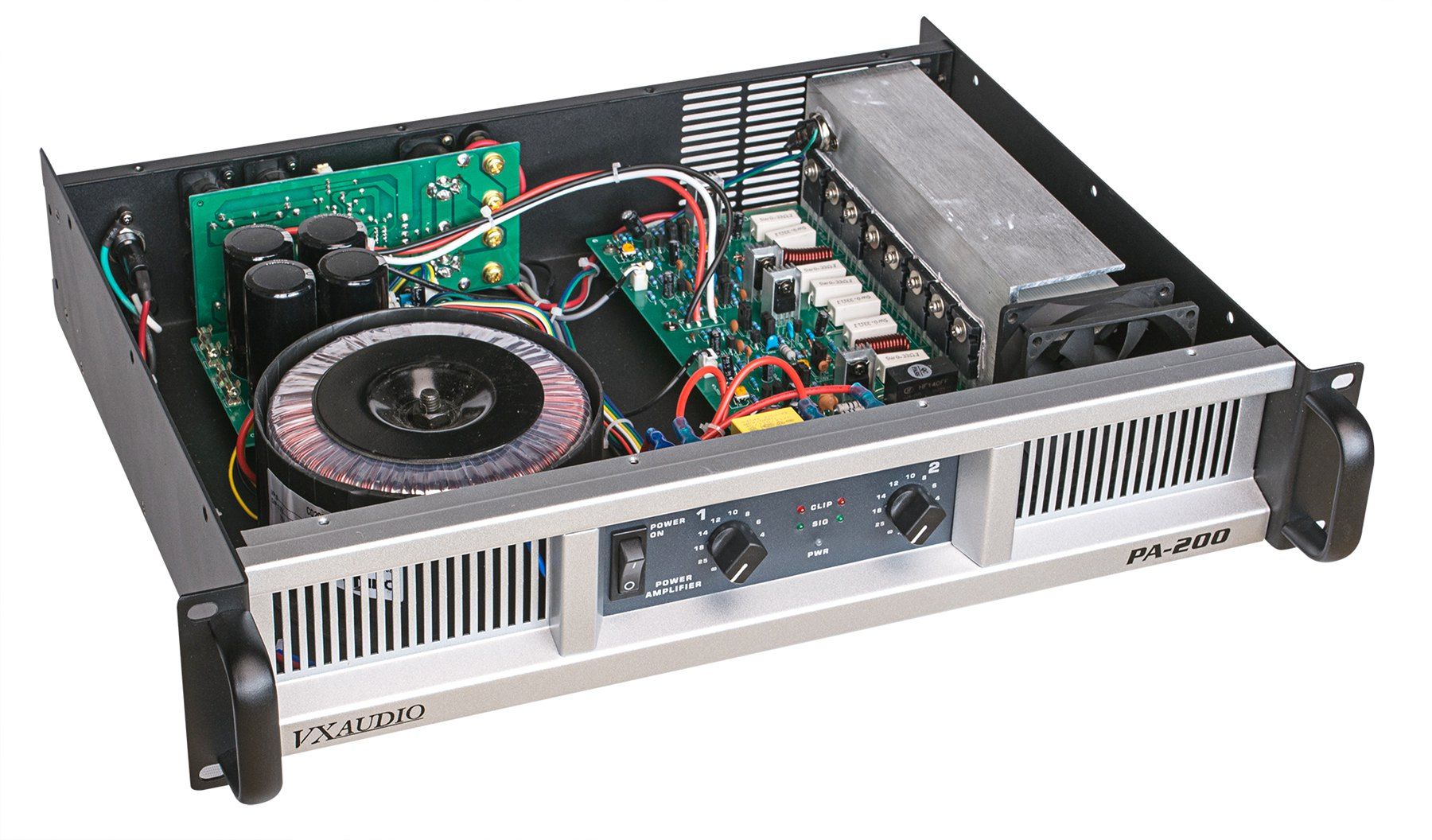

2 Channel Power Amplifier 2*200W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
20/Piece |
| Pay Type: |
T/T |
| Prod Model: |
PA-200 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Output Number: |
2 |
Product Description
Feature: can be switched between stereo and mono channel. Classic well designed circuit. Quality of electronic components, working in H forms. make the products excellent. Wide frequency response, low distortion so that the voices of more accurate and fidelity Multiple sound protection features such as over-current, over-voltage, over-temperature, overload, DC, and so on
Model | PA-200 |
| Stereo Power 8Ω | 2*200W |
| Stereo Power 4Ω | 2*300W |
| Stereo Power 2Ω | 2*400W |
| 8Ω BTL | 600W |
| 4Ω BTL | 900W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω 1KHz |
| S/N Ratio | >100dB |
| Slew Ratio | 35V/u S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω 1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 2U |
| Gross Weight | 15KG |
| Dimensions | 575×450×158MM |
