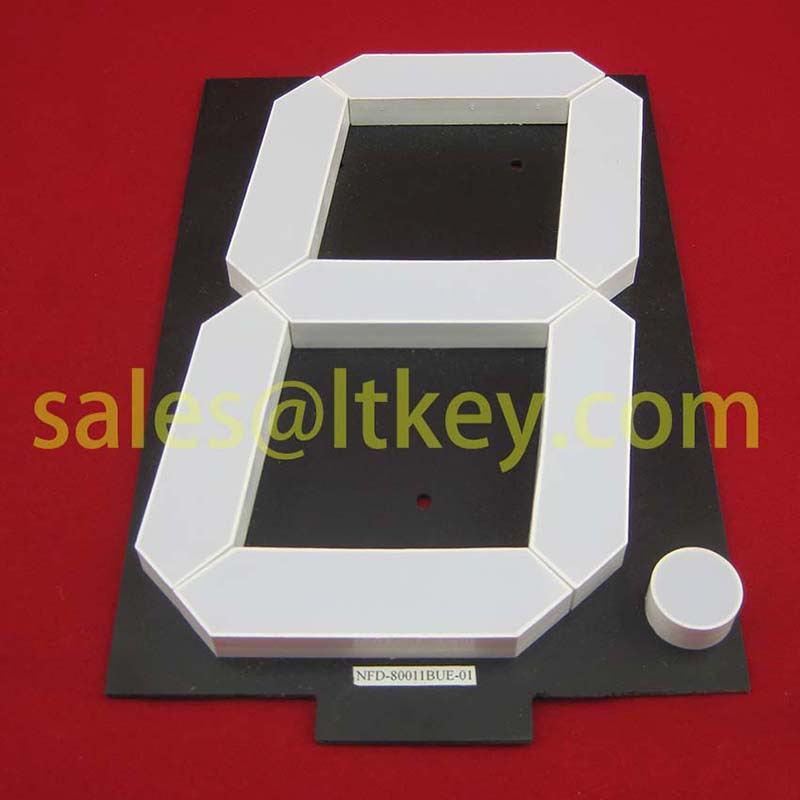

16 Inch Assembly 7 Segment LED Display
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LD160011A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |

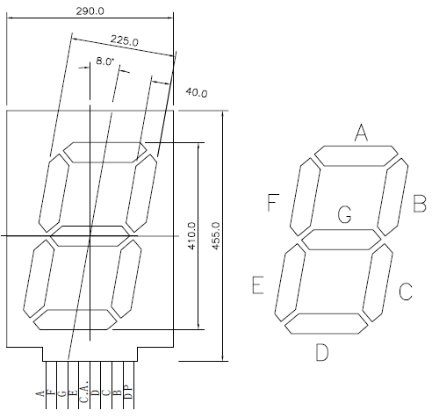

| Outline Dimensions: |
455.00X290.00mm |
| Digit Height: |
16 Inch(410mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
1PC |
| Digit Number: |
1 Digit |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description
Features
Ø 410mm (16 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font

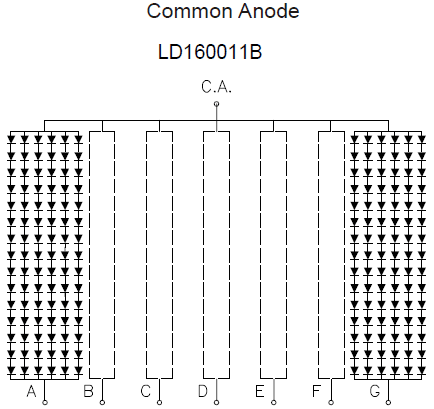

Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide (Ta = 25 °C )
| Single Digit 7 Segment LED Display, Digit Height: 410.00mm(16inch), External Dimensions: 455.00x290.00mm (LxWmm) |
| Part No. | Chip | IV@IF=120mA |
| Common Cathode | Common Anode | Material | Color | WLD | One Seg |
| Min. | Typ. |
| LD160011AR | LD160011BR | GaAlAs | Super Red | 640 | 540 | 675 |
| LD160011AD | LD160011BD | GaAlAs | Hi-Red | 640 | 1215 | 1688 |
| LD160011AO | LD160011BO | GaAsP | Orange | 625 | 472.5 | 607.5 |
| LD160011AY | LD160011BY | GaAsP | Yellow | 588 | 540 | 675 |
| LD160011AG | LD160011BG | GaP | Green | 568 | 472.5 | 607.5 |
| LD160011AUR | LD160011BUR | AlGaInP | Ultra Red | 640 | 2025 | 3038 |
| LD160011AUO | LD160011BUO | AlGaInP | Ultra Orange | 625 | 3037.5 | 4050 |
| LD160011AUA | LD160011BUA | AlGaInP | Ultra Amber | 605 | 2025 | 3038 |
| LD160011AUY | LD160011BUY | AlGaInP | Ultra Yellow | 595 | 2025 | 3038 |
| LD160011AUG | LD160011BUG | AlGaInP | Ultra Green | 573 | 2025 | 3038 |
| LD160011APG | LD160011BPG | InGaN | Pure Green | 525 | 8100 | 20250 |
| LD160011AUB | LD160011BUB | InGaN | Ultra Blue | 470 | 2025 | 3038 |
| LD160011AUW | LD160011BUW | SMD | Ultra White | \ | 6750 | 8100 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
