| Prod Model: |
S154T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15", 17", 19" |
| Material: |
Plastic |
| Touch Panel: |
Touchkit 4wire Resistive |
| Type: |
Touch Screen Panel AD Player |
Product Description

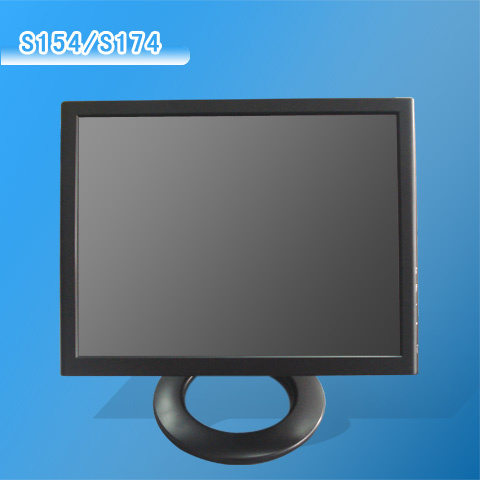

Model: S154 S174 S194
Display Area: 15.1" 17.1" 19.1"
Resolution: 1024*768 1280*1024 1280*1024
Contrast Radio: 450: 1 500: 1 800: 1
Color Resolution: 16.2M 16.2M 16.2M
Brightness: 250CD/m2 300CD/m2 400CD/m2 Manifestation Type: VGA TFT
LCD MTBF: 50, 000 Hours
Back light MTBF: 25, 000 Hours
Frequency horizon: 25~65 kHz
Perpendicular: 56~75 kHz
VGA port: dB-15 port
DC Adapter: DC12V\4A
Power supply: 100V-240VAC
Operation Temperature -10 ~ 35degree
Store Temperature: -20~ 60 degree
Adjustable Angle: Can be 180°
Installing ways: Desktop, Wall Mounting
Touch Screen: TouchKit 4-Wire Resistive Touch Screen
Touch Screen Controller USB/COM
P. S.: TouchKit 4-Wire Resistive Touch Screen
Circuiting Rating: 5V DC, 5mA-25mA Surface Hardness: 3H
Light Transmission Film+Film>77% Hitting Life Expectancy: Over 1 million
Film+Glass>83% Scoring Life Expectancy: Over 100, 000
Contact Bounce: <10ms Operating Temperature: -10 oC ~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5% Choices of Glass Thickness: 2.0mm,
Operating Force: 10g~100g Choices of Glass: Normal Glass, Chemically strengthened glass
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
