| Prod Model: |
FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Switching Power Amplifier |
| Output Power: |
4CH X 1300 Watts |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
4 CH |
Product Description

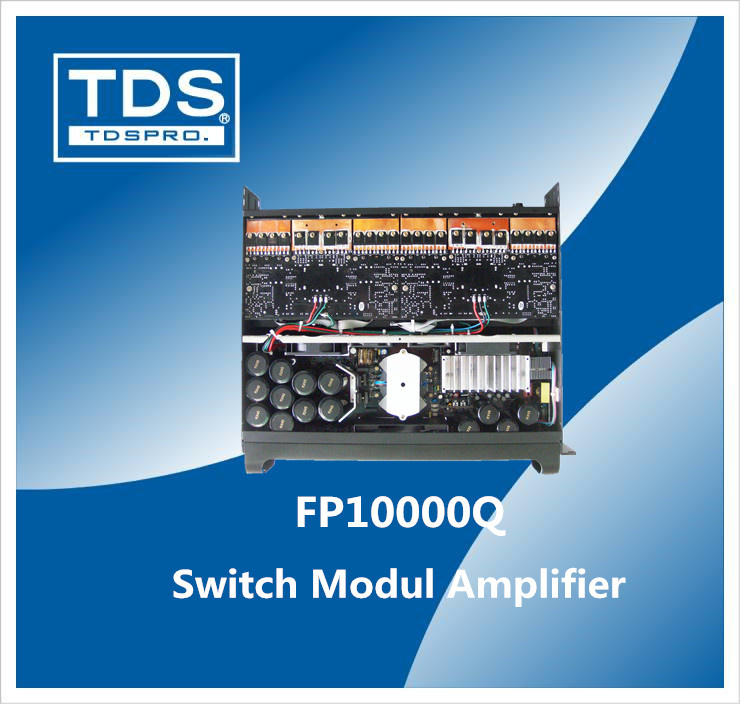

1300W Digital 4 CH Power Amplifier (FP10000Q) Used With Concert Speakers System
Features
1. 4CH switch modul power amplifier.
2. Branded Motorola transistor.
3. Lightweight but working powerful.
4. Heat sink part with pure copper material.
5. 2 years products warranty.
Specification | |
| Model | FP10000Q |
| 8ohm Stereo Power (RMS) | 4 x 1300 watts. |
| 4ohm Stereo Power (RMS) | 4 x 2200 watts. |
| 2ohm Stereo Power (RMS) | 4 x 2400 watts. |
| 8ohm Bridge Power (RMS) | 2 x 4400 watts. |
| 4ohm Bridge Power (RMS) | 2 x 4800 watts. |
| Frequency Response | 10Hz -- 30KHz +/-3dB. |
| THD | < 0.1% |
| S/N Ratio(dB) | 110dB |
| Voltage Gain | 23,26,29,32,36,38,41,44dB |
| Input Connector | 3 pins. XLR |
| Input Impadance | 20K ohm Balance / 10K ohm Imbalance |
| Output Connector | Speakeon & conntact pins. |
| Operating Voltage | 200V - 240V / 50-60Hz. |
| Dimension (W x H X D) | 483 x 88 x 377 |
| Net Weight (kg) | 17 kg |
| Gross Weight (kg) | 19.5 kg |
