| Prod Model: |
ZYM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Filtration |
Product Description
Application:

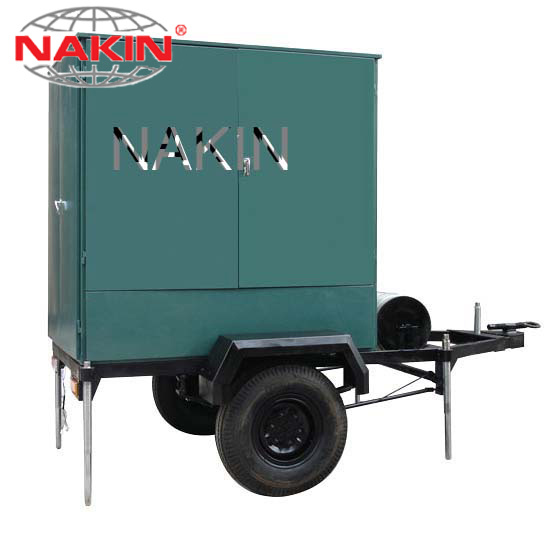

According to user's requirements, we developed Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, ZYM belong to Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYM oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYM oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The best advantage of ZYM is that can move long distance working in field.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
|
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
|
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
|
Working vacuum |
MPa |
-0.08~-0.099 |
|
Working pressure |
MPa |
≤ 0.4 |
|
Temperature range |
C |
20 ~80 |
|
Dielectric strength |
KV |
≥ 70 |
|
Water content |
ppm |
≤ 3 |
|
Gas content |
% |
≤ 0.1 |
|
Particles size |
μ |
≤ 1 |
|
Power supply |
|
380V 50HZ 3Ph (As per user’ s option) |
|
Working noise |
dB(A) |
≤ 65~85 |
|
Heating power |
Kw |
30 |
30 |
40 |
60 |
90 |
|
Total power |
Kw |
35.5 |
37.5 |
48.5 |
68 |
105 |
|
Inlet(Outlet) |
mm |
Φ 25 |
Φ 32 |
Φ 42 |
Φ 50 |
Φ 50 |
|
Purifier weight |
kg |
550 |
720 |
830 |
950 |
1120 |
|
Trailer weight |
kg |
300 |
300 |
450 |
450 |
500 |
|
Purifier Dimension |
L |
mm |
1400 |
1400 |
1650 |
1700 |
1820 |
|
W |
mm |
1100 |
1100 |
1200 |
1200 |
1320 |
|
H |
mm |
1300 |
1300 |
1500 |
1500 |
1620 |
|
Trailer Dimension |
L |
mm |
2750 |
2750 |
3000 |
3080 |
3400 |
|
W |
mm |
1400 |
1400 |
1620 |
1620 |
1710 |
|
H |
mm |
1100 |
1100 |
1100 |
1100 |
1100 |
