| Prod Model: |
TYK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Vacuum: |
-0.06~-0.095MPa |
| Working Pressure: |
<0.3MPa |
| Demulsifying Value: |
<15/Min(GB/F7035)+ |
| Water Content: |
<5ppm |
| Gas Content: |
<0.1% |
| Acid Value: |
<0.05mkoh/G |
| Resistance Value: |
<5.0X109omega |
| Cleanness: |
|
| Total Power: |
12.5-35.5kw |
| Working Temperature: |
40~60c |
| Application: |
Phosphate Ester Fire-Resistant Oil |
| Voltage: |
Option |
| Folw Rate: |
600-6000L/H |
Product Description

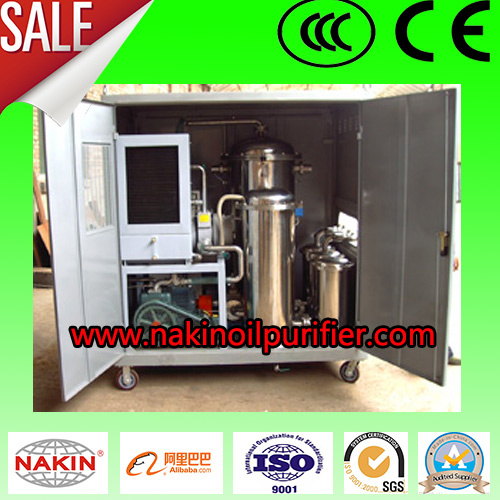

Phosphate Ester Fire-resistant Oil Purifier
Application
Series TYK is latest model of vacuum oil purifier designed for purifying the unqualified phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series TYK is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.
Features
1. Use of special metal materials which is compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent.
2. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
3. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter.
4. Advanced medium cooling system.
5. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters
| Index name | Unit | TYK-10 | TYK-20 | TYK-30 | TYK-50 | TYK-100 |
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 |
| Working vacuum | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤0.3 |
| Demulsifying value | min | ≤15/min(GB/F7035)+ |
| Water content | ppm | ≤5 |
| Gas content | % | ≤0.1% |
| Acid value | mKOH/g | ≤0.05 |
| Resistance value | Ω | ≤5.0×109Ω |
| Cleanness |
| ≤NAS 6 grade |
| Power supply |
| 380V 50HZ(As per user's option) |
| Working noise | dB(A) | ≤65~80 |
| Temperature range | ºC | 40~60 |
| Heating power | Kw | 9 | 10 | 16 | 19 | 30 |
| Total power | Kw | 12.5 | 14 | 21 | 24.5 | 35.5 |
| Dimension | L | mm | 1500 | 1600 | 1650 | 1700 | 1750 |
| W | mm | 1000 | 1200 | 1250 | 1300 | 1400 |
| H | mm | 1700 | 1700 | 1800 | 1850 | 1900 |
