| Prod Model: |
ZYD-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Content: |
Less Than 3ppm |
| Gas Content: |
Less Than 0.1% |
| Particles Size: |
Less Than 1u |
| Working Noise: |
Less Than 65~85dB(a) |
| Total Power: |
104kw |
| Inlet(Outlet): |
42t mm |
| Weight: |
870kg |
Product Description

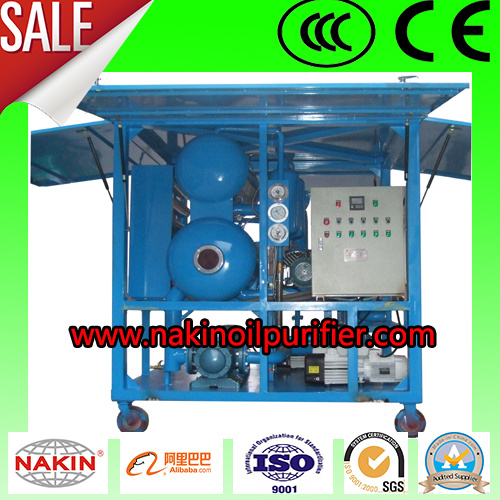

ZYD-Double Tanks Transformer Oil Purifying EquipmentApplication:Series ZYD Double-stage high vacuum transformer oil purifying equipment adopts two horizontal-type vacuum separate system, which can increase separating size and separating time to ensure the dry-level and dielectric strength improving greatly. ZYD high vacuum oil filter machine is specially made for filtering unqualified used and old transformer oil. It also can purify switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil, insulating oil and so on, ZYD vacuum transformer oil filter machine uses advanced high vacuum dehydration and degasification technology and unique three grades filtering system to separate moisture, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil. It can improve oil's dielectric strength and make sure electric equipments working safely and normally. Series ZYD oil filter machine can be used for filtration of more than 110KV substation live line work onsite and is particularly suitable for treating super-voltage transformer oil, high-grade transformer oil and new transformer oil.
Features:1. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Functions of live line work onsite, vacuum drying and vacuum oiling.
8. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:Comparing with single stage transformer oil purifier, Series ZYD oil purifier can increase the effectiveness more than three times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.
Technical Parameters:
Index name |
unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
Flow rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
Working vaccum |
MPa |
-0.08~-0.099 |
Working pressure |
MPa |
≤ 0.4 |
Temperature range |
°C |
20 ~80 |
Dielectric strength |
KV |
≥ 70 |
Water content |
ppm |
≤ 3 |
Gas content |
% |
≤ 0.1 |
Particles size |
μ |
≤ 1 |
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
Working noise |
dB(A) |
≤65~85 |
Heating power |
Kw |
30 |
30 |
95 |
110 |
125 |
136 |
151 |
Total power |
Kw |
35.5 |
37.5 |
104 |
121 |
135 |
148 |
168 |
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Φ60 |
Weight |
kg |
450 |
550 |
870 |
950 |
1250 |
1850 |
2100 |
Dimension |
L |
mm |
1500 |
1500 |
1950 |
2100 |
2200 |
2250 |
2400 |
W |
mm |
1250 |
1250 |
1300 |
1350 |
1350 |
1400 |
1450 |
H |
mm |
1700 |
1750 |
2100 |
2200 |
2200 |
2200 |
2200 |
