| Prod Model: |
ZY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Return Filter |
| Usage: |
Removing Particles, Odor, Water, Acid and Alcohol |
| Working Vacuum: |
-0.06 - -0.095MPa |
| Working Pressure: |
< 0.4MPa |
| Temperature Range: |
20 -80c |
| Dielectric Strength: |
> 65kv |
| Water Content: |
< 5ppm |
Product Description

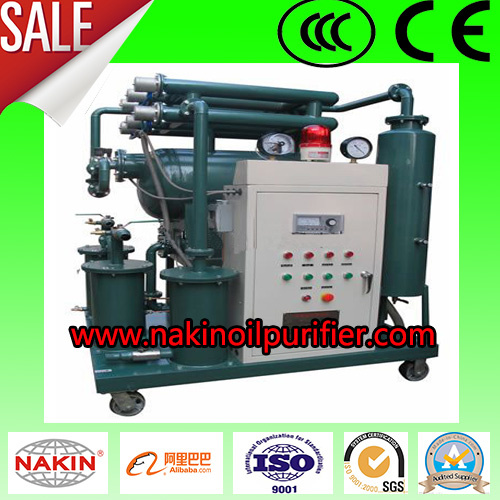

ZY oil purifier is high efficiency vacuum insulating oil purifier
Application:ZY oil purifier is high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and it can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
Features:1. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to discolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on.
| Index name | Unit | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 |
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Working vacuum | MPa | -0.06 - -0.095 |
| Working pressure | MPa | < 0.4 |
| Temperature range | C | 20 -80 |
| Dielectric strength | KV | > 65 |
| Water Content | ppm | < 5 |
| Gas content | % | < 0.1 |
| Particles size | mm | < 3 |
| Power supplier |
| 380v 50Hz, 3Ph (As per user' s option) |
| Working noise | dB(A) | ≤ 65-85 |
| Heating power | Kw | 15 | 15 | 15 | 30 | 48 | 60 | 72 | 90 |
| Total power | Kw | 16.5 | 16.5 | 16.5 | 33.5 | 53 | 65 | 76 | 98 |
Our Products List : ZYD vacuum transformer oil purifierZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator Contact us ,we will recommend the most suitable oil purifier to you.CHONGQING NAKIN ELECTROMECHANICAL CO., LTD. is dedicated to provide you the best solution for all kinds of industrial oil regeneration. If you are interested in our oil purifier machines, please do not hesitate to contact us.
