| Prod Model: |
zcs160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
16GB |
| Type: |
SD Card |
| Interface: |
USB |
| Card Slots: |
All in 1 & Multi in 1 |
| Installation: |
Internal |
Product Description

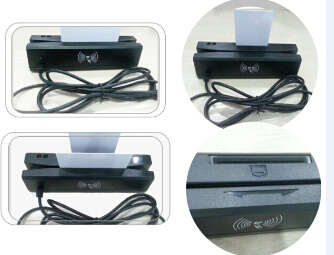

ZCS160 Magnetic Stripe and RFID Card and IC card
And, psam card it is a multi-functional reader to help you read magnetic stripe
Cards and read/write RFID cards IC card. Through the USB interface can
Realize the connection with PC machine and related equipment. Magnetic card
Support two-way charge, according to different user requirements, magnetic
Card 1, 2, 3 track information, the most common reader. Widely used in industry
And commerce, telecommunications, taxation, banking, insurance, health care
And a variety of charges, stored value, query management system. The reader
Is programmable so that the data format and intelligent interface output can be
Programmed & configured to match application and communication
Requirements.
2. FEATURES:
Can read&write a variety of memory card and supports T = 0 and T = 1
Communication protocol CPU card
Support the function of the SAM card operation
Use USB to communication with PC
Provide many development platform interface function and application
Example
Thin, light, beautiful, practical
POST, USB powered
Green LED flashes to indicate credit card data being output, after the
Completion of a three-track card full output Beeper
USB interface, truly plug and play, no need to install drivers
Read magnetic cards, IC card reader, proximity card function
Reading the full three-track magnetic card, support bi-directional swipe
Optional magnetic rail 1, 2, 3
Providing a full range of dynamic library function, providing the perfect
Description of the development, points, examples, and a variety of
Development languages call example source code (including: C #
2003, c + + builder, Adelphi, Powerbuilder, VB. Net2003, VB6.0, java)
3. TECHNICAL SPECIFICATION:
Magnetic card
Selectable tracks yes
Read card 1/2/3tracks
Swipe Double direction
Head life Approx 500, 000 passes
Parity and LRC checking Built-in, audible and LED good read and error
Indicator
Cards supported ISO 7811, AMMVA, CADMV
RFID card
Operating Frequency 13.56 MHz
Smart Card Interface ISO14443-A, Mifare
Sensing Distance About 15mm
Programmable sound ON or OFF
Cards supported SO14443A, MifareOneS50, MifareOneS70, MF3
DESFIRE, MifareUltra Light, Desfire, Mifare Plus
PSAM card
Head life Approx 200, 000 passes
Communications USB
Cards supported ISO 7816-3
Operating system Win7, Win 2008, Vista, Win 2003, Win 2000, XP,
Linux
IC Card Supported
Cards supported AT24C01A/24C02/24C04/24C08/24C16/AT24C64,
SLE4432/4442, SLE4418/4428,
ISSI 24C01A/16, ISO7816-(1-4) (T=1, T=0)
Communications USB2.0, really Plug and Play
Swipe speed 3 ~ 60 inches per second
Maximum power consumption 100 MW
Temperature Commercial-grade: -20- 60
Industrial-grade: -20-60
Humidity 90% non- condensing
Anti-static interference 15KV
Magnetic interference resistance 19Oersted
Vibration resistance Amplitude 0.35mm, Frequency 10-55Hz, Three axis
Directions sweep vibration
Insulation Resistance Hot and humid circumstances(40 ° , 95%)Insulation
Resistance should not be less than 5MΩ
Dimensions 160mm(L) × 45mm(W) × 45mm(H)
Weight 180g
