| Prod Model: |
ZCS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
External |
| Card Slots: |
Single |
| Interface: |
USB |
| Type: |
RFID Card |
Product Description

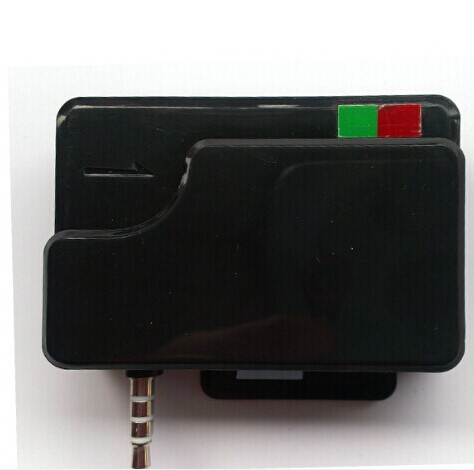

EMV Certificated HeadPhone Jack audio Payment Mobile Card Reader for Android & IOS Phone, we got EMV L1 & EMV L2 certificated
EMV L1/L2
SDK for ios, android
Support technicial support at any time for free
The imixpay Magnetic Stripe and IC Card combo Reader. It communicates with mobile devices via the audio headphone jack to read a variety of magnetic stripe cards or IC cards, includes of credit cards, signature debit cards, gift cards, loyalty cards, driver's licenses, and ID badges.
Features:
Professional structure design:
With the professional structure design, beyond the traditional magnetic card reader, perfect combined with mobile drivers.
Safe and Secure: Provide safe and secure transactions, provide hardware
Based 3DES encryption
Secret key Injection: Support to set up a key injection process and software to inject the key through the audio jack into the device
Provide DUKPT KEY Management
Support magnetic card and EMV card
Green Initiative: The battery can be charged
Superior magstripe reading performance: Offers exceptional card reading
Capabilities in a durable form factor
Easy to use: Simple and best to use, with a smart lanyard.
Provide variety sdk demo: Ios, android, windows Phone, PC
TECHNICAL SPECIFICATION:
Magnetic Card: IS07811, AMMVA, Reference Standards CADMV, and other Format
IC Card: ISO-7816 Class, A, B and C
Swipe Speed: 3-60 Inches Per Second, Bi-Directional
Track Position: Magnetic track 1&2, 2&3
Card Thickness: 0.76-1.2mm
Interface: Audio Headphone Jack
Compatibility System: IOS, Series, Android, WP7/WP8
Phone: HTC, Samsung, Motorola, COOLPAD, HEDY,
iPhone/iPod/iPad, Windows phone Series
Certifications: FCC. CE. EMV2000
Operating Temperature: 0° CTO55° C (32° F to 131° F) non-condensing
Storage Temperature: -30° CTO70° C (-22° F to 158° F) non-condensing
LED Lights From Left to Right: IC Power Indicator, Insert IC Indicator, Charge indicator
Working power: Li-ion Battery power
Battery Capacity: 120mAh
Battery Life: More than 500 Cycles
Chip: 1K SRAM
Rated Voltage: 3V DC
Idle Current: 0.01mA
Standby Current: 4.5mA
Charging current: 100mA
Working Current Magnetic Card: 7mA IC Card: 25mA
Support Swipe Magnetic Stripe card more than 50, 000 times.
Working Hours:
IC Card It can continuous operation the IC card for more
Than 6hours, for example a transaction needs to
Send 40 APDU Commands, in a fully charged
Condition, it can trade a thousand times.
Charging time: Half and Hours
Relative Humidity Maximum 95% Non-Condensing, dry storage
Operating Life Magnetic header Approx. 300, 000 passes
IC headers Approx. 100, 000passes
Dimensions 60mm(L)X40mm(W)X17mm(H)
Weight 60g
Read error rate Less than 1%
