| Prod Model: |
QD110Y-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. High efficiency
2. Good start-up performance
3. High stability
4. High reliability
5. Cooling type: S shows "Static Cooling"
6. R600a compressor should be used in line with PTC starting device
7. RSIR Motor
8. Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; under special conditions voltage low to 165V and high to 242 is allowable.
9. Strictly processed refrigerant oil has been authorized by Wansheng Compressor to add into R600a compressor. It is not allowed to pour out or add randomly; otherwise all technical assurance would be invalid.
10. LBP
11. Mainly used in refrigerators, freezers, display cabinets, wine chests, etc.
12. The process or suction tube of direct and semi-direct gas compressor can not be interchanged, or it would be difficult to guarantee the performance of compressor.
13. The stocking period must be less than 6 months after the date of production. If longer, you have to check whether the filled dry nitrogen is sufficient. Replenishment must be done if necessary.
14. Use R600a refrigerant
15. Voltage application from 220 to 240V
16. Frequency only for 50HZ
17. WT series QD110Y work within a widely voltage range
18. The compressor meets the needs of different customers.
19. Low vibration and noise

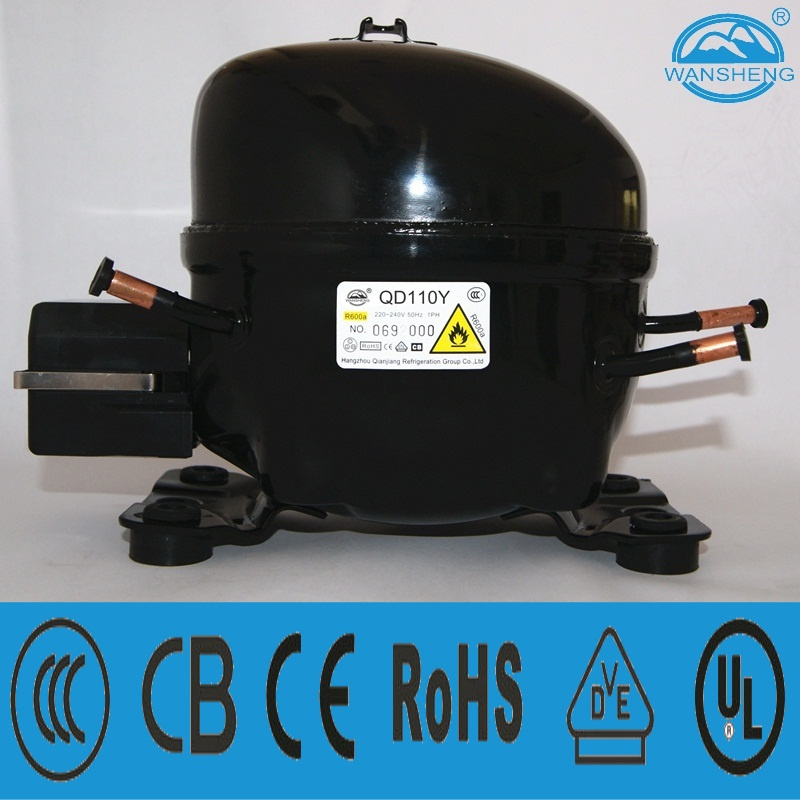

R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WT series 220-240V~50Hz |
| QD110Y | 11.0 | 187 | 134 | 1/6 | 1.4 | RSIR | / | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
