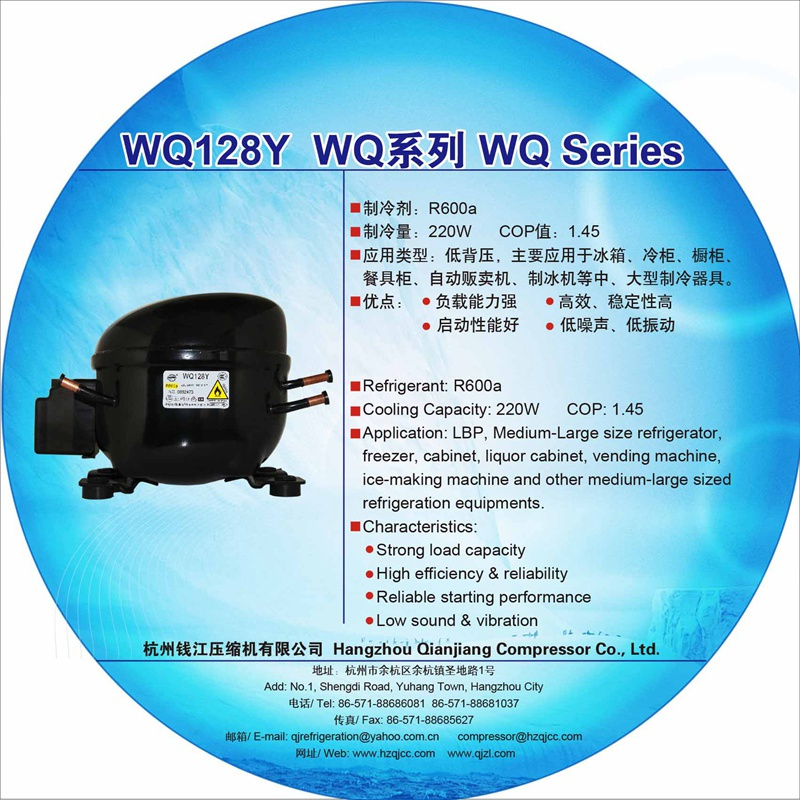

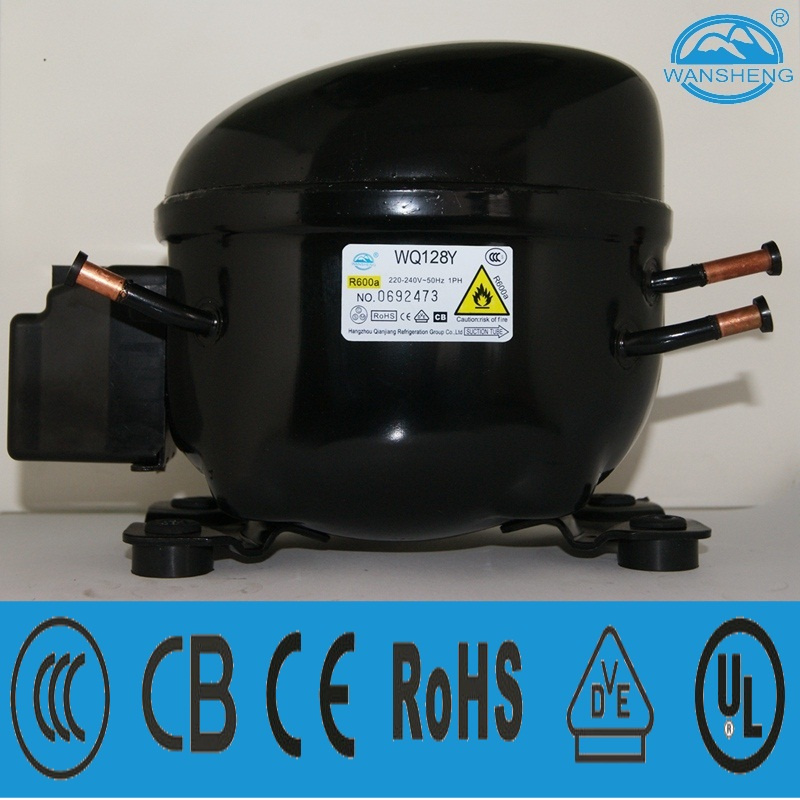

Ice Maker Compressor R600A (WQ128Y)

Ice Maker Compressor R600A (WQ128Y)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: WQ128Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Strong load capacity
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound & vibration

Applied to Medium-Large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.

WQ Series WQ128Y LBP Has passed CCC/CE/VDE certification


The company obtains continuous development and becomes one of the leading compressor manufactures in China. Up to now,10 series of compressors(V series,WV series,WS series,SC series,VFC series,etc.)are produced in our company and more than 80 models are available with the power range from 1/12 to 5 horse power, including the refrigerant R600a,R134a,R22 and R406a


R600a WANSHENG  Low Back Pressure (LBP) Compressor
R600a WANSHENG  Low Back Pressure (LBP) Compressor Test ConditionsEvap. Temp.: -23.3°C  Cond. Temp.: 54.4°C
Amb. Temp.: 32.2°C  Suction. Temp.: 32.2°C
Subcooling Temp.: 32.2°C  LBP ASHRAE
ModelDisplacement
 (cm³)
Cooling Capacity  (W)Rated Power   (W) Nominal power     (HP)COP  (W/W)Motor TypeStarting Capacitor
(μF)
Running Capacitor
(μF)
Starting RelayCooling Type
WQ series 220-240V~50Hz
WQ128Y12.82201521/51.45RSIR//PTCF
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
