| Prod Model: |
WQ153H-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
Frequency only for 50HZ
Voltage application from 220 to 240V
Application in display cabinets, freezers, vending machines, ice machines and other large and medium-sized refrigeration equipment.
High efficiency
Low vibration
Good reliability
Nominal power is 2/5 HP
COP is 1.35 with the cooling capacity 390W
CSIR Motor
Cooling type F
WQ153H has passed CCC certification
Low Back Pressure
Compressor should be stored in a dry and drafty place
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
R134a piston refrigerator compressor WQ153H
WQ series WQ153H compressor use R134a refrigerant
Cheap price provided for the compressor WQ153H makes the customers better choice
Experienced staff ensure produce of the compressors with good quality
Starting device is Starting Relay
WANSHENG R134a LBP Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Power Supply
(V/Hz) | Nominal Power
(HP) |
Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
WQ Series 220-240V~50Hz |
| WQ153H | 220-240V~50Hz | 2/5 | 390 | 1.35 | CSIR | Starting Relay | 80 | / | F |

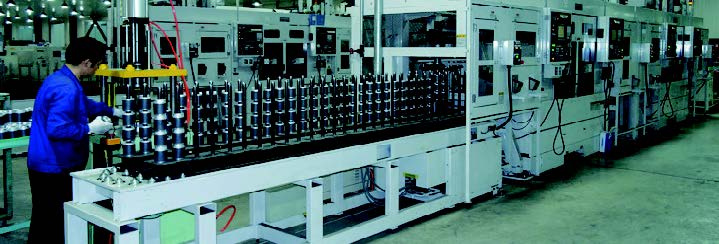

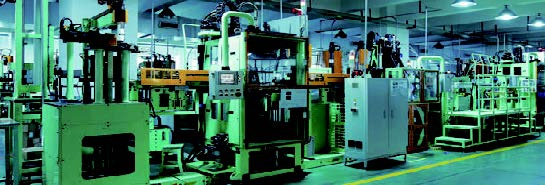

Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
