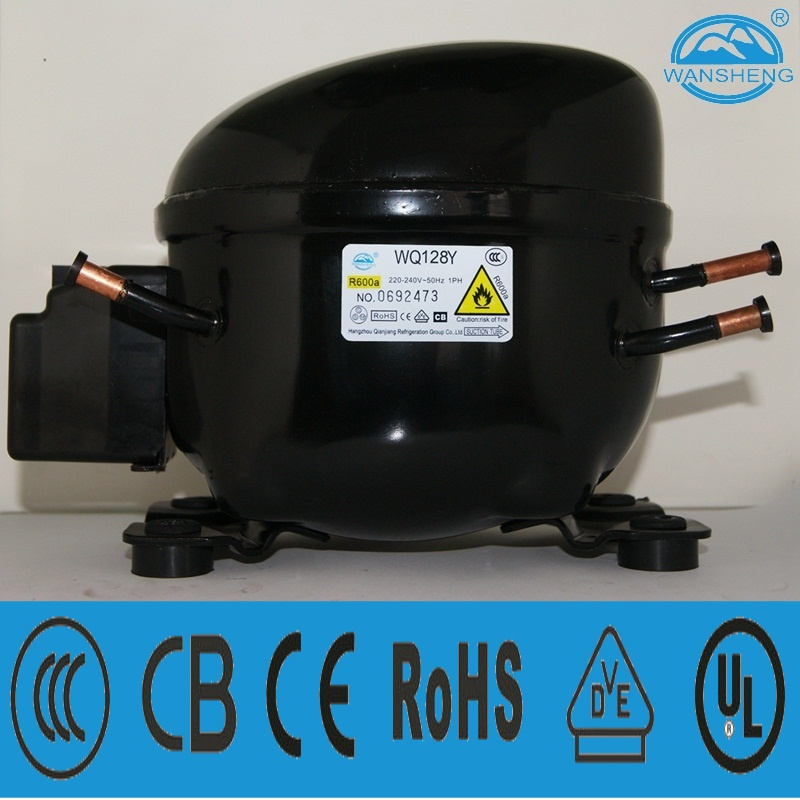

Wq128y R600A Wansheng Refrigerator Compressor
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WQ128Y-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
Product Description
- WQ series WQ128Y LBP Has passed CCC/CE/VDE certification
- The company obtains continuous development and becomes one of the leading compressor manufactures in China. Up to now, 10 series of compressors (V series, WV series, WS series, SC series, VFC series, etc. )are produced in our company and more than 80 models are available with the power range from 1/12 to 5 horse power, including the refrigerant R600a, R134a, R22 and R406a
- Strong load capacity
- High efficiency & reliability
- Used as R600a refrigerant
- Hermetic refrigeration compressor
- Reliable starting performance
- Low sound & vibration
- Applied to medium-large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.
| R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WQ series 220-240V~50Hz |
| WQ128Y | 12.8 | 220 | 152 | 1/5 | 1.45 | RSIR | / | / | PTC | F |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
