Wireless Wireless Congress System
| Price: |
US $ 1-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DCS-1021 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD: |
White-on-Blue Backlit |
| Superior Sound Quality: |
Yes |
| Housing Colour Scheme: |
Black |
| Attendance Registration: |
Expanded Function by iPad |
| Voting And Election: |
Expanded Function by iPad |
| Red Mic Ring Luminant: |
Yes |
| Camera Trackinig: |
Supported |
| Recording: |
Supported |
| Conference Software Management: |
Supported |
| Mic Stem Strength: |
Standard:41cm |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Communication: |
Wired |
| Pointing Feature: |
Omni-Directional |
| Color: |
Silver |
| Composition: |
Microphone |
Product Description

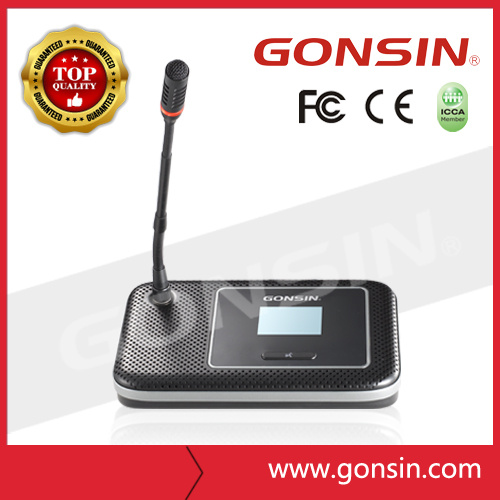

DCS-1021 Wireless Congress System
Main Features
Support 2.4 G / 5.8G dual-band communication to ensure system stability;
Microphone sensitivity can be adjusted from level 0 to 4;
With offline 8 in 1 out SD video tracking matrix, HD camera is supported;
Terminals can be uniformly shutdown by server after the conference;
With timing function, when the timing ends, the server can be used after reauthorization;
System capacity can be up to 450 units of terminals;
CD-quality sound;
Multiple systems work simultaneously under same environment without disturbing each other.

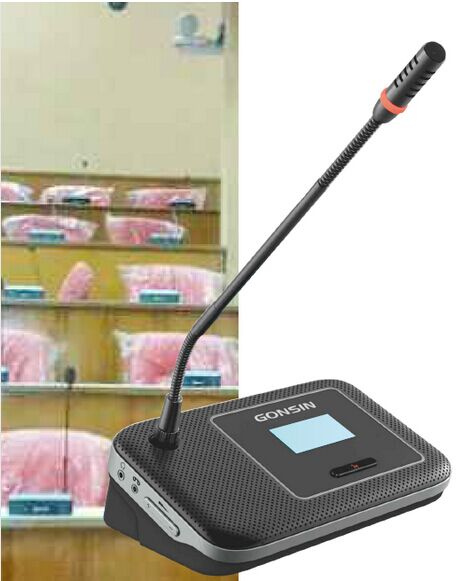

wireless congress terminal
Features
Support 2.4 G/ 5.8G dual-band communication;
CD-quality sound;
Terminal battery duration (speaking state ≥ 14 hours;
Highly resistant to mobile phone interference
Pluggable MIC stem;
Metal material, high texture;
Microphone sensitivity can be adjusted from level 0 to 4.

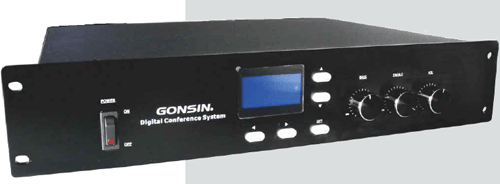

Congress serverFeatures The congress server platform is based on Linux operating system, applicable for any large convention center requiring strict working conditions; Fully digital technology for audio signal processing and transmission, which complies with the IEC 60914 international standards for conference systems; High performance DSP solution optimized for digital audio processing; Unified Server Shutdown function.Functions Each server has a globally unique ID number ,which is easy for installation and orderly management; Supports 8 x 1 SD / 8 x 8 HD automatic camera tracking function; Two microphone modes: AUTO / FIFO; Up to 4 microphones can be active simultaneously (1 chairman terminal +1/2/3 delegate terminal); The server comes with an LCD panel and navigation buttons, which are for all function setup operation; Terminal ID number can be wrote through the server, more convenient for device management; Unified terminals shutdown function hens effectively reduce the work; Sound pickup sensitivity of the terminals can be adjusted individually or collectively via the server; Technical SpecificationsCapacity Single wireless AP.150Terminals; can be extended to 450 terminals with extra wireless APFrequency response 30Hz~20KHzSignal to noise ratio ≥75dBDistortion Degree ≤0.5%(50HZ~8KHZ)System stability Communication distance 30mLCD panel 128×64 dot matrixMain supply AC110~220V± 10%50~60HzAudio Output +20dBuPorts 1×8pin(to connect interpreter console) 2×audio output 1×RJ-45(to connect a wireless AP/PC) 1×RS-232(to connect camera tracking switcher) 1×RS-485(to connect camera)Mounting 19*standard cabinetDimensions(W×H×D) 485mm×90mm×325mmWeignt 7.2kgOperating temperature 0~45°CStorage temperature -20~50°CCharging CabinetFeatures
Real time management of battery and charging current
Green/Red LED indicator lights for charging status
Charging contacts are designed to prevent wrong-way Insertion
Functions
Real time management of battery and charging current,extending battery lifetime ;
With an independent modular design for the charging circuit, the battery can detect automatic;without inserting the batteries, charging module will not work ;
Smart charger for 10 Li-ion battery packs,with 6-hour charging time ;
Green/Red LED indicator lights for charging status.
Technical Specifications
Main supply AC100~240V , 50~60Hz
Power 150W
Charging time 6 hours
Weight 6.7Kg(net weight)/8.7Kg(ful load)
Dimensions 415×344×87mm
Operating temperature 0~45°C
Storage temperature -20~50°C
Company informations
GONSIN is Established in 2003, Gonsin Conference Equipment Co.,LTD. is the industry leader in R&D, manufacturing and sales of digital conference equipment. It is a state-level high-tech enterprise in China and a proud member of International Congress and Convention Association (ICCA).
Established in 2003,Gonsin Conference Equipment Co.,Ltd.is the industry leader in R&D, manufacturing and sales of digital conference equipment. It is a state-level high tech enterprise in China and a proud member of International Congress and Convention Association (ICCA).
GONSIN is the global provider of complete conference system solutions, including DCS distributed congress system, conference microphone system, interactive voting system, simultaneous interpretation system, attendance registration system, multimedia control system and conference management software.
GONSIN prides itself on its independent innovation strategy and product differentiation strategy since its inception, with independent intellectual property rights for its wide range of products.
GONSIN successfully lauched the DSSS interpretation system, the industry' S first multi-channel wireless language distribution system using the state-of-the-art Direct Sequence Spread Spectrum (DSSS) technology.
Its DSSS wireless interpretation system and wireless voting system were awarded as projects of National Torch Program by the Ministry of Science and Technology of China.
GONSIN' S lates product, Daya DCS-1020 Distributed Congress System, offers fully digital, scalable, versatile and reliable platform-based congress solution which has redefined the traditional conference system, with cutting-edge technologies and greatly enhanced user experience.
GONSIN has received ISO 9001: 2008 certification for its quality management system and CE, FCC, CCC certification for its products lines. GONSIN trademarks have been registered in over 60 countries around the world.
GONSIN ship to more than 120 countries, and has completed thousands of important projects worldwide, with diversified portfolio of endusers including governments, parliaments, convention centres, courthouses, military forces, hotels, schools, churches and corporations.
GONSIN products have equipped some high-end international conferences such as the 4th United Nations conference on LDCs, UNECSO World Heritage Committee meetings, Organization of American States general assembly, Mercosur Presidential Summit.
GONSIN conference systems have been permanently installed by some national parliaments including the State Great Hural of Mongolia, National Assembly of Ecuador, National Congress of Chile, National Assembly of Kenya, and Congress of New Caledonia.
After eight years of rapid growth, GONSIN now employs a dedicated R&D team with the most experienced engineers covering software, chip, network and communications technology background. The company has maintained long term strategic partnerships with some well-known scientific research institutions in China. Armed with the advanced R&D, manufacturing and testing facilities, outstanding industrial design capabilities and comprehensive post-sales service, GONSIN has evolved into the world' S leading supplier of high quality digital conference equipment.
"Delivering trust and value" is GONSIN' S business concept. Based on mutual trust and shared interests, GONSIN will continue to work together with its clients and partners worldwide in order to confront the new challenges of global competition and better serve the growing needs of the conference industry.
