Digital Conference System (TL-VCB4200)
| Price: |
US $ 1-500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL-VCB4200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD: |
White-on-Blue Backlit |
| Language Interpretation: |
1+5 Channels |
| Housing Colour Scheme: |
Black or Silver |
| Attendance Registration: |
by IC Card or Mic Key Press. |
| Voting And Election: |
5 Buttons |
| Red Mic Ring Luminant: |
Yes |
| Camera Trackinig: |
Supported |
| Recording: |
Supported |
| Conference Software Management: |
Supported |
| Mic Stem Strength: |
Standard:41cm |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Communication: |
Wired |
| Pointing Feature: |
Omni-Directional |
| Color: |
Silver |
| Composition: |
Microphone |
Product Description
TL-VCB4200 digital conference system
offers versatile intelligent conferencing solution to meet the demands of business and government conferences of different sizes. It features microphone discussion, interactive voting, simultaneous interpretation, video tracking, audiovisual recording and software control.

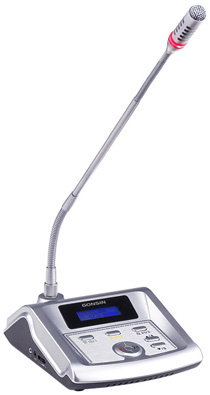

Delegate Unit TL-VDCB4200
Chairman Unit TL-VXCB4200
Main Features:
Highly resistant to mobile phone interference;
Channel selectors for interpretation listening;
Pluggable microphone stem;
Long microphone pick-up range;
5 buttons for voting and election;
Built-in chipcard reader;
White-on-blue backlit LCD;
Red ring luminant to indicate active mic.
The conference unit allows the delegate to speak, request to speak, listen to speech, register attendance and cast a vote. Each unit comes with headphone jack and volume control for the delegate to listen to the floor speaker and any interpreted language, and adjust volume level for comfortable listening.
1 to 4 delegate microphones can be active at the same time. Multiple chairman and vice-chairman units can be used in one system, and can be active at any time regardless of preset delegate mic limit. Delegate unit can be configured as vice-chairman unit via software.
Chairman unit has the additional priority button to override all delegate units to control the conference.
Basic Functions:
Microphone discussion: Push to talk or request to talk.
AUTO/FIFO/OPERATOR modes are available for microphone management.
Simultaneous interpretation: 1+5 channels. Up/down buttons as channel selectors. Channel number is shown on LCD. Headphone listening with volume control.
Attendance registration: By IC card or MIC key press.
Voting: YES/ABST/NO. Vote counting and result display are enabled automatically by PC:
- Single-choice and multiple-choice voting;
- First keypress and final keypress voting.
Election: Elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election'.
Evaluation: 4-key evaluation: Good, Fair, Poor and Abstain.
Dynamic LCD messages for voting, discussion and interpretation.
Supports automatic video tracking, with preset paranomic position.
Technical Specifications:
Mounting type: Fixed or portable tabletop;
Language interpretation: 1+5 channels;
Frequency response: 50Hz-18kHz;
S/N ratio: -95dB/1mV;
Sensibility: -46dB± 4dB;
Power input: 24V DC;
Power consumption: 2W;
Microphone stem length: 410 mm;
LCD: 47× 18mm;
Phone jack: 3.5mm stereo;
Dimensions: 173× 145× 57 mm (W*D*H);
Weight: 0.8 kg;
Housing colour scheme: Black or silver.
Central Control Unit TC-ZB3
Main Features:
Used for discussion, interpretation and voting;
Controls up to 60 conference units as standard;
Expandable to support 1000 conference units;
Supports multiple chairman & vice-chairman units;
Built-in FSC for acoustic feedback prevention;
Built-in treble/bass compensation;
Built-in 4x1+1 video matrix switcher;
Built-in MIC IN audio input for wireless mic system.
Technical Specifications:
Standard 2U housing for 19" rack mounting;
Standard system capacity: 60 units;
Active delegate microphone limit: 1/2/3/4;
PC communication: RS232;
Video camera communication: RS422/RS485;
Video camera supported: Up to 4;
Video tracking protocol: Pelco-P9600 / Sony-VISCA;
AV matrix switcher input: RCA x 4 (1Vp-p, 75Ω );
AV matrix switcher output: RCA x 2(1Vp-p, 75Ω );
REC OUT audio output: 0-2.8V Vpp;
S/N ratio: >95dB;
Power supply: 220V/50Hz or 110V/60Hz, ± 10%;
Maximum power: 300W;
Dimensions: 485mm× 320mm× 90mm (W*D*H);
Weight: 12 kg.
