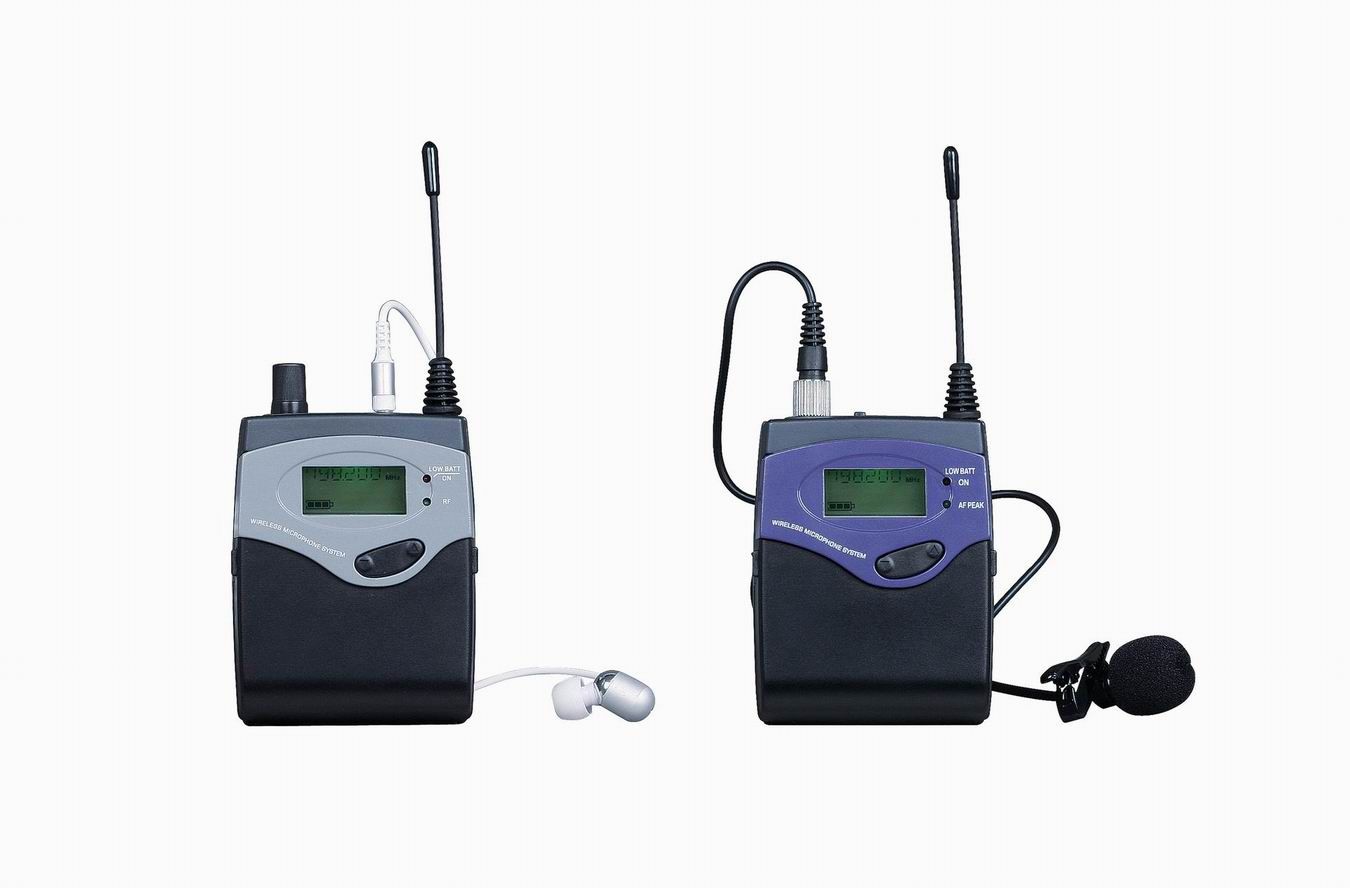

| Prod Model: |
SUM-700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Voice |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
Product Description
Specification:
Oscillation mode: -------------------------------------------------PLL synthesized
Frequency stability: --------------------------------------------------------± 0.005%
Frequency range: -----------------------------------------------------798~830MHz
Frequency alternation: -------------------------------------------------------32MHz
Operate mode: --------------------------------------------------manual adjusting
Receiving way: ---------------------------------------------------------single tuning
Sensitivity: ---------Deviation 25KHz, when connected 7dBuV, S/N> 78dB
Max Deviation: ---------------------------------------------------------------± 48KHz
S/N: ------------------------------------------------------------------- > 94dB(1KHz-A)
T. H. D.: ------------------------------------------------------------------- < 3% @1KHz
Frequency response: -----------------------------------------80Hz- 15KHz± 3dB
Transmitter output power: -----------------------------------2 x 50mW @ 1KHz
AF output: -------------------------------------------------- Φ3.5mm Mono socket
Power supply: -------------------------------------------------------------AA 1.5V x 2
Current consumption: ---------------------------------------------------3V/120mA
Senpro Audio Equipment Co., Ltd. is a prefessional acoustics corporation devoted to unique design, fashion idea, manufacture, marketing and distribution of audio equipment.
We are specialized in manufacture Wireless microphone, Wired/Condenser microphone, Professional performance sound system equipment series based on OEM & ODM style.
Technological innovation and quality management are the core competitiveness. We insist on the creatively quality management, pursuits of every detail, prefer to the overall manufacturing philosophy of perfect quality.
We are keeping the princile "Quality First, Service Best" and supplying best products and services to our customers. Warmly welcome local and overseas customers to negotiate business and developing plans.
