| Prod Model: |

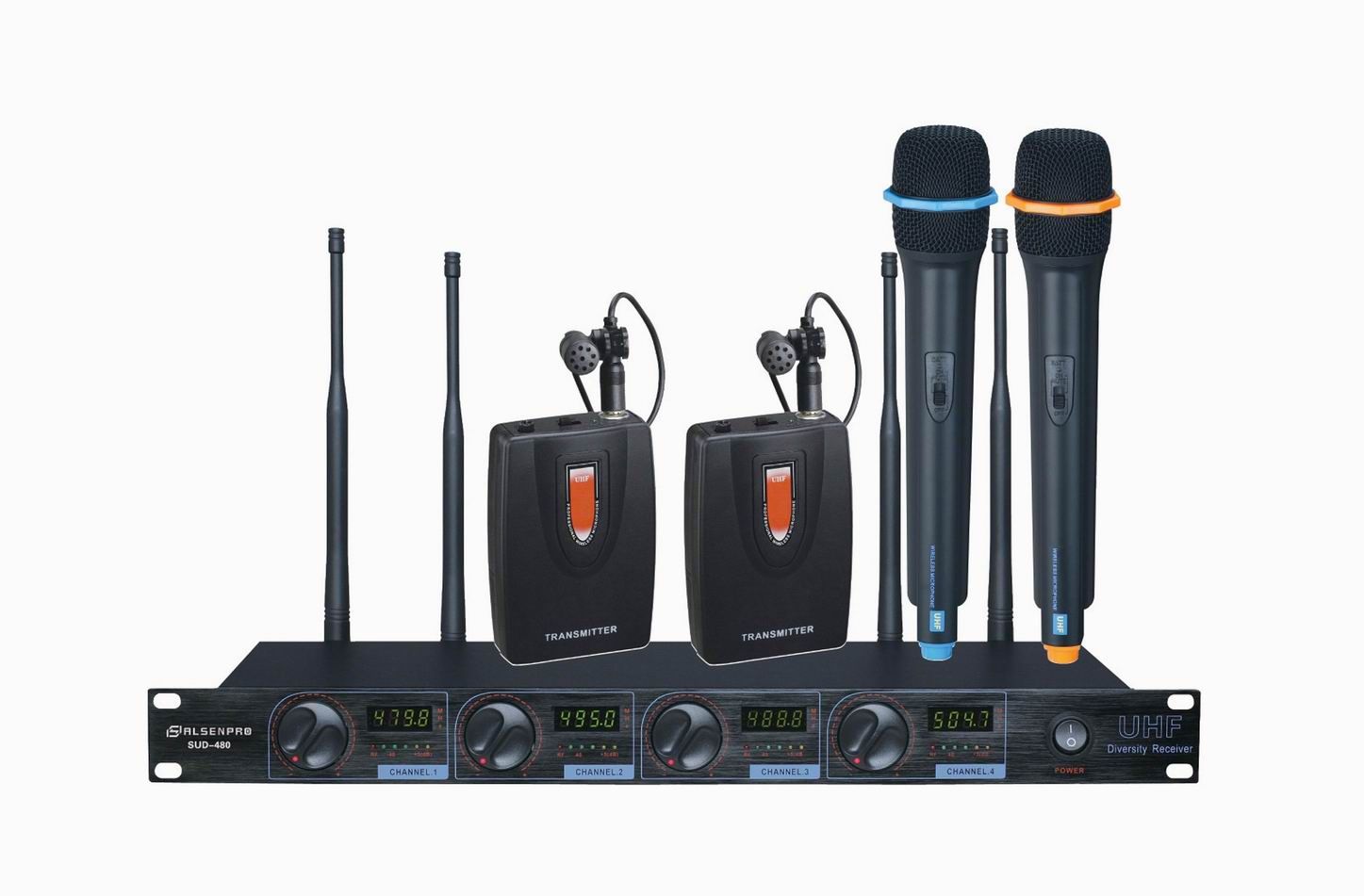

SUD-480 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
Four Channel |
| Signal Transmission: |
Wireless |
| Application: |
Voice |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
Product Description
System:
Audio Frequency Response----------------80-12000Hz
Dynamic Range--------------------------------------- ≥ 80dB
System Distortion--------------------------------------- ≤ 1%
Signal-to-Noise Ratio----------------------------- -- ≥ 80dB
Operating Range-----------------------------------Appr. 80M
Carrier Frequency Range-------------------790-870MHz
Receiving System----------------------Diversity Receiver
Receiver:
Sensitivity (S/N=30dB)------------------------------- > 2mV
Image Rejection--------------------------------------> 60dB
De-Emphasis--------------------------------------------50μS
Audio Output Impedance-----------------------------600Ω
Audio Output Level--------------------------------------1.1V
Power Supply-------------------AC220V~240V 50/60Hz
Current Consumption---------------------------- ≤ 300mA
Handheld Transmitter:
Frequency Stability-------------------------------± 0.001%
RF Output Power----------------------------------- ≤ 30mW
Spurious Rejection---------------------------------> 50dB
Modulation Mode------------------------------------------FM
Maximum Deviation Range--------------------± 45KHz
Microphone Mode---------------------------------Dynamic
Pre-Emphasis------------------------------------------50μS
Power Supply--------------------------DC 3V (AA1.5V× 2)
Current Consumption------------------------------≤ 40mA
Dimensions----------------------------------φ 35× 270mm
Weight---------------------------------Appr. 250g(No Batt. )
Body-pack Transmitter:
Frequency Stability-------------------------------± 0.001%
RF Output Power----------------------------------- ≤ 30mW
Spurious Rejection---------------------------------> 50dB
Modulation Mode------------------------------------------FM
Maximum Deviation Range---------------------± 45KHz
Microphone Mode------------------------------Condenser
Pre-Emphasis-------------------------------------------50μS
Power Supply------------------------------------------DC 9V
Current Consumption------------------------------≤ 40mA
Dimensions----------------------------------95× 60× 20mm
Weight------------------------------------Appr. 90g(No Batt. )
