| Prod Model: |
EM-2035 |
| Markets: |
North America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Style: |
Handheld Microphone |
| Application: |
Measurement |
| Signal Transmission: |
Wired |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
XLR 5 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |

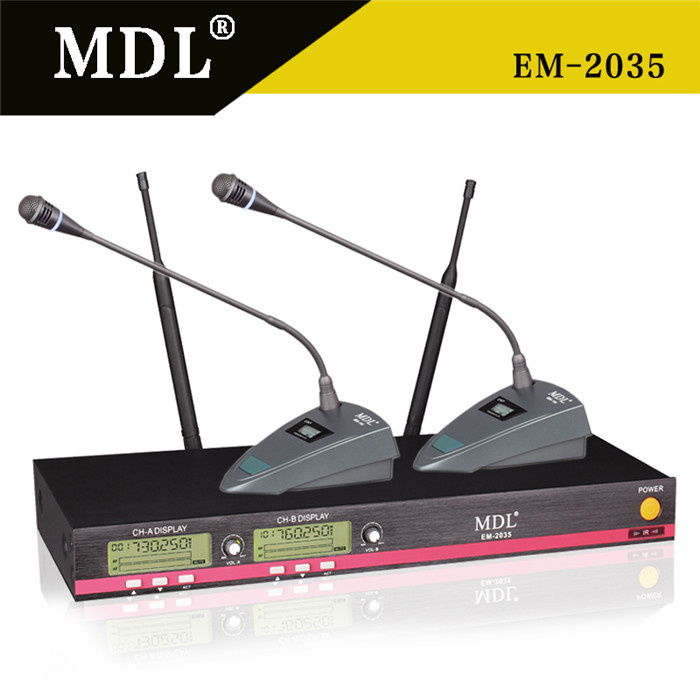

Product Description
Detail:
Transmitters parameters
carrier frequency range: 520MHz-960MHz (depending on
applicable national standard)
RF output power: the biggest 30 mW (depending on
applicable national standard)
Oscillation mode: PLL (digital frequency synthesizer)
Launch frequency stability: < 30 PPM
Dynamic range:≥100dB(A)
Frequenry response: 50Hz-15KHz
Maximum input pressure: 130 dB SPL
Microphone sound pickup head: Handheld launcher (moving coil type)
Purse type launcher/Meeting a type transmitters (capacitor)
Working current: 110 mA
FIXED RECEIVE
carrier frequency range: 520MHz-960MHz (depending on
applicable national standard)
Modulation mode: FM
Oscillation mode: PLL (digital frequency synthesizer)
Scattered stray or: ≥80Db
Image and spurious rejection: ≥80Db
Sensitivity:5dBuV
Voltage output:
Balance outout for(XLR output jack): 250mV/600Ω
Mix output for (1/4" output jack):400mV/3KGΩ
