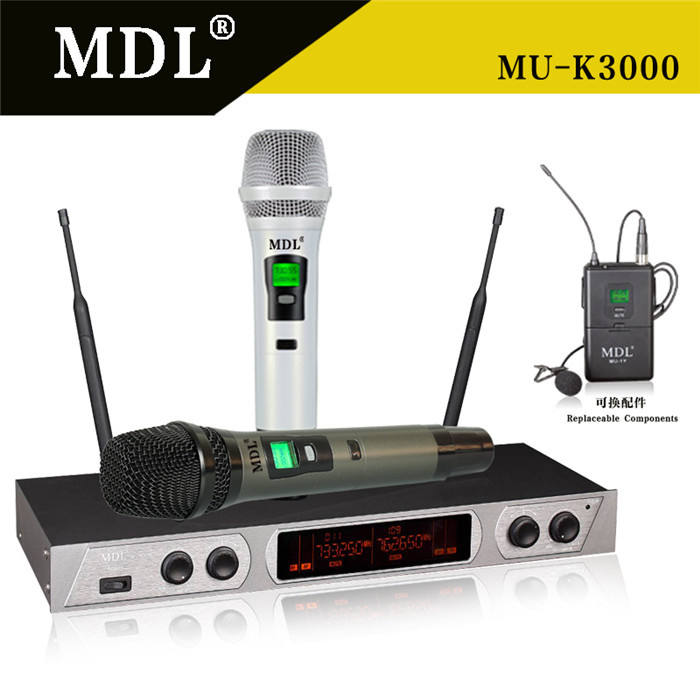

Wireless Communication and Handheld Microphone

Prod Model:	MU-K3000

Product Description

Transmitters parameters
carrier frequency range: 520MHz-960MHz  (depending on
   applicable national  standard)
RF output power: the biggest 30 mW (depending o   applicable national standard)
Oscillation mode: PLL (digital frequency synthesizer)
Launch frequency stability: < 30 PPM
Dynamic range:≥100dB(A)
Frequenry response: 50Hz-15KHz
Maximum input pressure: 130 dB SPL
Microphone sound pickup head: Handheld launcher (moving coil type)
       Purse type launcher/Meeting a type transmitters (capacitor)
Working current: 110 mA

FIXED RECEIVE
carrier frequency range: 520MHz-960MHz  (depending on
applicable national standard)
Modulation mode: FM
Oscillation mode: PLL (digital frequency synthesizer)
Scattered stray or: ≥80Db
Image and spurious rejection: ≥80Db
Sensitivity:5dBuV
Voltage output:
Blance outout for(XLR output jack): 250mV/600Ω
    Mix output for (1/4" output jack):400mV/3KGΩ
working distance: 50-150 meters
   (based on the use of the environment)
Working voltage: DC12-16 V
