| Prod Model: |
EM-4035 |
| Markets: |
North America,Southeast Asia,Africa,Mid East |

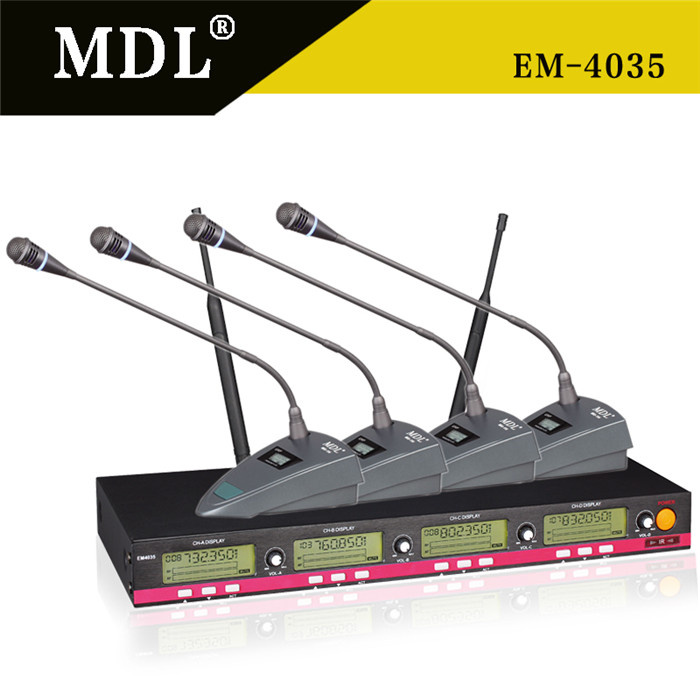

| UHF Four Channel Wireless Conference Mic: |
UHF Four Channel Wireless Conference Microphone |
| Type: |
Simultaneous Interpretation System |
| Video: |
Video |
| Communication: |
Wireless |
| Pointing Feature: |
Omni-Directional |
| Color: |
Black |
| Composition: |
Meeting |
Product Description
Transmitters parameters
carrier frequency range: 520MHz-960MHz (depending on
applicable national standard)
RF output power: the biggest 30 mW (depending on
applicable national standard)
Oscillation mode: PLL (digital frequency synthesizer)
Launch frequency stability: < 30 PPM
Dynamic range:≥100dB(A)
Frequenry response: 50Hz-15KHz
Maximum input pressure: 130 dB SPL
Microphone sound pickup head: Handheld launcher (moving coil type)
Purse type launcher/Meeting a type transmitters (capacitor)
Working current: 110 mA
FIXED RECEIVE
carrier frequency range: 520MHz-960MHz (depending on applicable national standard)
Modulation mode: FM
Oscillation mode: PLL (digital frequency synthesizer)
Scattered stray or: ≥80Db
Image and spurious rejection: ≥80Db
Sensitivity:5dBuV
Voltage output:
Balance outout for(XLR output jack): 250mV/600Ω
Mix output for (1/4" output jack):400mV/3KGΩ
working distance: 50-150 meters
(based on the use of the environment)
Working voltage: DC12-16 V
Working current: ≤400mA
