| Prod Model: |
EM-2122 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fit Design: |
Ear-Hook |
| Item: |
New Ear Hook Earpiece for Motorola Earpiece |
| Warranty: |
10months |
| Quality: |
100% QC |
| Material: |
PU |
| OEM: |
Acceptab;E |
| Cable Length: |
Optional |
| Cable Dia: |
1.8-4.2mm |
| Cable Type: |
Optional in Straight or Coil |
| Communication: |
Wired |
| Style: |
Ear Hook |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
RF |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
Depends on Radio Connector |
| Use: |
Two Way Radio |
| Earpad Size: |
No |

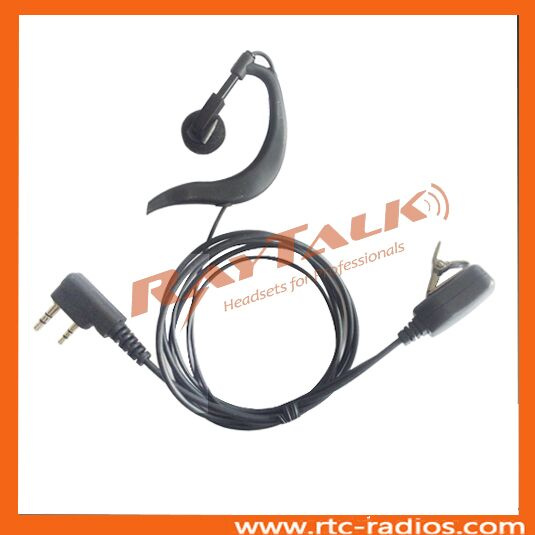

Product Description
Wired two way communication system earpiece/ear hook earphone with microphoneProduct Information1. Loud and clear sound
2. 360 degree revolving clip
3. Connector is optional
4. Walkie talkie ear hook earpiece with metal clip
5. All radio brands and models are available
6. Environmental PU cable reinforced with Kevlar
7. Small lapel PTT with microphone & metal clip
8. Wired two way communication system earpiece/ear hook earphone with microphone .
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
Company & Factory Show:
Your one stop source for Two way radio accessories. (Safety & Comfortable Communication)
RayTalk Communications & Technology was established in 2003 as a professional manufacturer of two way radio Accessories & Aviation headsets, and has continued to provide worldwide customers with the best in two-way communications products and services/ Our team of sales, service, engineering and operations are among the most qualified and best trained in the two way radios industry.
Our products include audio accessories, headset, earpiece, surveillance kit, speaker microphone, throat microphone, batteries, battery chargers compatible with Motorola, Kenwood, Icom, HYT, Vertex/Standard, GME, Unider and Tait products.
RayTalk has delivered comprehensive, dependable, and cost-effective solutions to meet the demands of our clients and on site support service tailored to the specifications and budgets of our clients. OEM & ODM are also welcome, our teams of experts work closely with customers and listen to your opinions with an aim to create products that suits your requirements.
At RayTalk, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction. With the skill, range of service, stability and resources, we believe we can become your long-term communications partner.
