| Prod Model: |
RSM100/M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Lightweight Remote Speaker Microphone for Cp040 |
| Voice: |
Loud & Clear |
| Use For: |
Two Way Radios Communication |
| For Radios: |
Cp88/Cp125/Cp040/Cp150/Cp16/Cp200, etc |
| Work For: |
Two Way Radios/Walkie Talkies |
| Cable: |
Kevlar+PU |
| Users: |
Security, Policeman, Swat |
| Material: |
TPU Black |
| Communication: |
Wired |
| Warranty: |
12 Months |
| Style: |
Handheld Microphone |
| Application: |
Two Way Radios/Walkie Talkie |
| Signal Transmission: |
Wired |
| Directivity: |
Uni-direction |
| Sound Channel: |
Mono |
| Transducer Principle: |
Electromagnetic Microphone |
| Sound Field Force: |
Combined Type |
| Output Impedance: |
50-1000Ω |
| Wireless Technology: |
UHF/VHF |
| Connector(',s): |
M1 Two Pin Connector for Motorola Radios |
Product Description

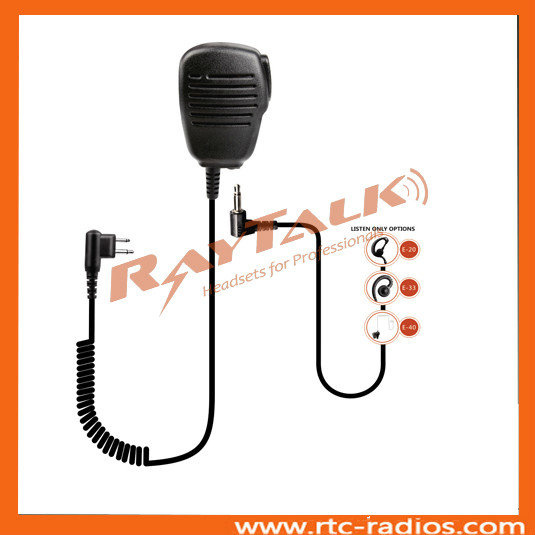

Lightweight Remote speaker microphone for Motorola CP040/CP140,etc
The top selling RSM100 Series speaker mic is built super tough to withstand heavy use in demanding environments. Crystal clear audio, standard 3.5mm accessory jac, Kevlar™ Re-enforced coil cabling and dust, water, vibration and wind resistant. The ultimate OEM alternative at great savings!
Add a 3.5mm listen only wire for the ultimate accessory solution in high noise environments!
Feature
· Professional light weight shoulder microphone
· Loud and clear sound
· Environmental PU cable reinforced with Kevlar
· Built in 3.5mm audio jack
· Rugged belt clip 360 degree rotation
· Available for all radio brands
|
Technical specification |
Speaker |
Dimension |
Φ36*9.8mm |
Impedance |
8Ω |
Rated input power |
1.0W |
Maximum power |
1.5W |
Sound Pressure Level |
98±3dB at 1KHz |
Frequency Range |
50-5KHz |
Microphone |
Dimension |
Φ9.7*6.5mm |
Type |
Electret Condenser Microphone |
Impedance |
2.2KΩ |
Sensitivity |
-40dB±3dB at 1000Hz(0dB=1 V/Pa) |
Operating voltage |
2.0V |
Directivity |
Omni directional |
Wire |
Dimension |
Φ4.2 |
Durable temperature |
60ºC~20ºC |
Material |
TPU Black |
Advantage: All speaker microphone housings are constructed of durable, shockproof, high impact plastic with robust construction coiled cord for strain relief.

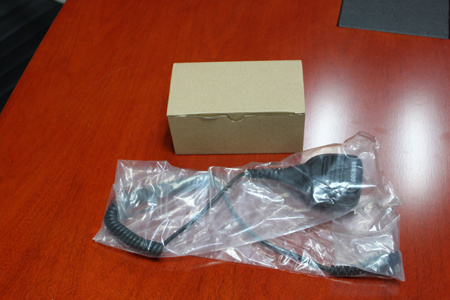

Package:
