| Prod Model: |
WW-TR22-PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White, Black, or Other |
| Panel Size: |
22 Inch |
| Panel Brand: |
LG / Sansung / Auo |
| OS: |
Windows |
| Application: |
Advertising |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
With Remote Control |
| Optimum Resolution: |
1920x1080 |
| Screen Size: |
20-22" |
| Interface Type: |
VGA |
| Response Time: |
5ms |
| 3D: |
Not 3D |
Product Description

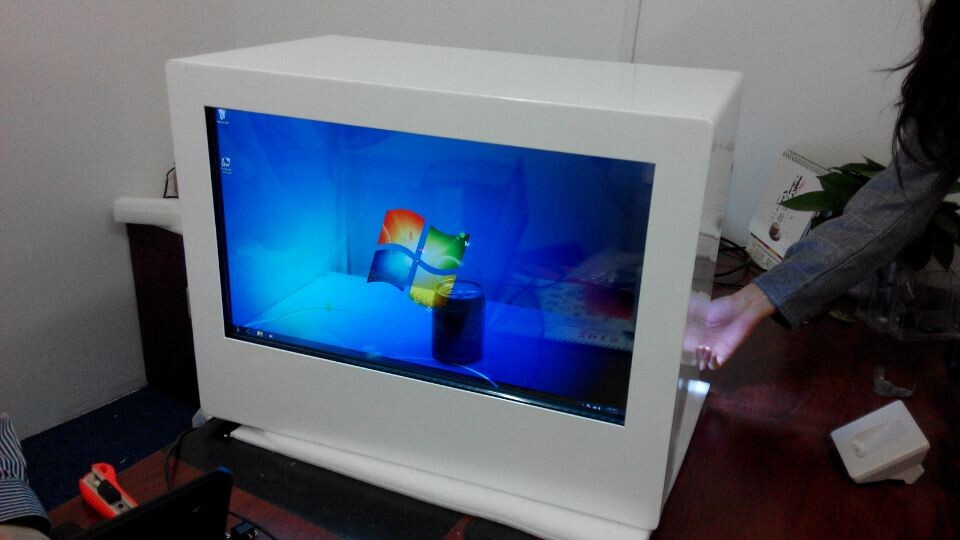

Wifi 22 Inch All In One PC Touch Screen Transparent LCD Showcase Display In Shopping Mall
Quick details:
New transparent LCD showcase display, single side TFT Screen.
With high grade IR touch screen and high grade LCD Panel.
3. Optional for VGA port, HDMI port, compatible all formats.
With lockable door to avoid flash memory card and advertising program being taken away.
4. Support wifi, 3G, optional
Support multi-language: English, Chinese...etc.
6. OS: Win 7 / 8.
Specifications:
| Technical Parameter for 22Inch LCD Panel | Panel Size | 22 inch TFT LCD |
| Aspect Ratio | 16:9 |
| Active Area | 474.8(W) * 297.1 (H) |
| Visual angle | Wide viewing angel |
| Max. Resolution | 1680x1050 |
| Dot Pitch | 0.3300H) x 0.3300 (W)mm |
| Number of Color | 16.7M |
| Brightness | 300cd/m2 |
| Contrast Ratio | 4000:1 |
| Responsive Time | 6ms |
| Panel Life | above 60000 hours |
| Touch Panel | Touch technology | Two point, multi points touch |
| Light transmittance | 100% |
| Physical resolution | 1000x1000 |
| Touch media | Finger/touch pen opaque objects |
| Response time | ≤10ms |
| Click life time | ≥60 M times |
| power | 1W |
| Max current | <350 MA |
| Storage Medium | Flash memory card, SD Card | 2gb to 36gb for the capacity |
| Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats | MP3 |
| Photo formats | JPG |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
| Audio output | stereo L/R, 5W*2, 8Ω |
| Power supply | AC 110V - 240V, 50/60HZ |
| Storage Temperature | -7 to 65 Celsius degree |
| Normal Working Temperature | -5 to 65 Celsius degree |
| PC Specification | CPU | Intel G2020/2.9GHZ/ Dual core |
| RAM | DDR3.2GB |
| HDD | S-Atall 500GB/16MB/5400rpm |
| Graphics | Inter NM10Express |
| Chipset | INTEL 5400 |
| Ports | 5xUSB, 1xVGA, 1XLAN, 1XAUDIO-OUT, 1XMIC-IN, DVI, HDMI |
| Power consumption | 30W |
| Operating system | Windows 8 / 7 |
| Speaker | 2*10W |
Description:
The inside exhibit can be seen while the pictures or videos are displayed on LCD screen. To attract customer's attention on product brand with the combination of dynamic information and the actual product display.
WIN-WIN TECH Transparent Video Showcase can be used in many applications: Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum Craft, etc.
Lcd touch screen all in one PC kiosk made from original Samsung/LG screen.It integrates electronic technology, computer technology, display technology, hardware and software control technology together. It covers
Outer Shell is made of extra good quality metal material, which is painted by power-spray craft work.
Adopts high transparent tempered glass (5-6 mm ) as protection layer to prevent lcd/led panel being broken or distorted.
3.support video display customized LOGO, and support video to show in the irregular shape.
4. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
5. With lockable door to avoid take away flash memory card and advertising playing program.
6.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
7. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new and factory original packing screen.
8. Built-in superior quality stereo speakers,5W *2.
9. Powerful exactly the same as Computer,and you can use your finger to touch and do any operation to it.Include all of feature of Single version and network version.
10. The products pass the national mandatory 3 c authentication, and has the national high and new technology enterprise development of the software copyright certificate.
11. You can set rolling caption and LOGO on the display, rolling caption is showed at the bottom of LCD Screen in the advertisement program.
12.Plug in CF card/SD card/USB(pen drive/U-disk) with advertisement inside, our machine will play the advertisement automatically and do cycle play.
13. Upgrade contents of the memory card (or built - in memory) by simple inserting an USB flash drive, no need to take out to the memory card.
14. Built in clock and calendar function in the system of player.
|
Application:
Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum Craft
Our competitive advantage:
In quality control, using full new imported LCD Panel, professional software and hardware team and QC, using advanced mounting technology, we strictly control every aspect of production , to ensure the quality of the product.
Quality Guaranteed, all of our display have to finish more than 48 hours aging test to guarantee A-class quality, 1 year quality guaranteed.
Good service,We always try our best to respond your inquiry fastest, which is really very helpful for solving your problem at any time, our engineer is 12hrs/day on line to help you if you meet any problem, we will track the entire transport process and report to you timely, till receive all the products which you purchased from our company.
Best price, we own developing team and factory, we can control the cost of each material.
Saving your dollars, we will help you to find the cheapest and also safest shipping way and shipping company.
Best Lead time: 3-5 working time for sample, about 15 days for bulk order.
.OEM/ODM service. We have engineers, professional team for your OEM/ODM service requirements.
Operation process:
|
SHENZHEN WIN-WIN TECHNOLOGY CO., LTD is a high-tech enterprises in ShenZhen City, the company is located in the beautiful JinMing Industrial park, Guangming New District,Shenzhen,Guangdong ,China. The company covers an area of 2500 square meters. We are delicated to providing our clients with one-stop multi-media digital signage advertisement solution. Win-Win is committed to providing products and service that benefit our clients.
Since our company establishment, under the new situation, we will receive the tradition the excellent working style, continue by "best quality, best price,till you satisfies" serves objective for Our company.
Our main products are 7-80inch LCD Digital Signage Display, including floor standing / wall mounted LCD display, network / stand alone LCD Display, LCD Transparent showcase, magic micro LCD Advertising play, ect.Application for retail stores, shopping malls, transit teminal, supermaket,commercial banks, hospital and airport.
