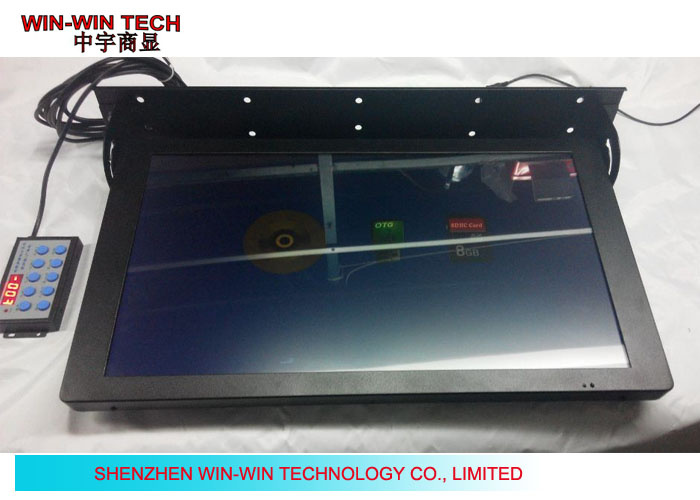

22" Bus LCD Digital Signage Advertising Display with GPS Stop Announcement

Prod Model:	W-B22+GPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Active Area:	473(H)*296(V)Mm(16:10)
Viewing Angle:	H85/V85
Pixel Pitch:	0.118X0.349mm
Contrast Ratio:	800:1
Brightness:	350CD/M2-450CD/M2
Response Time:	5ms
Input Voltage:	110V-240V
Resolution:	1680*1050
Application:	Bus/Car AD Player
Screen Size:	20-30 Inches
Touch Screen Type:	Infrared
Remote Control:	With Remote Control
Screen Technology:	LED
OS:	Android
Installation:	Wall-Mounted
Customized:	Customized
Type:	Bus LCD Advertising Display
Interface Type:	HDMI / VGA / AV Option

Product Description


Android Wifi / 3G Digital Signage 10.1 Inch , Supermarket Touch Screen Monitor


Quick details:
LCD Panel brand, full new LG / SANSUNG / AUO with A grade standard.
High- performance and cost Effective solution for you.
Multi- language OSD: English, Chinese, Russian, etc.
Warranty: 1 year without human damage
Auto and cycle playback when power on.
Adopted latest CMS software which can easily update your contents remotely from PC.
Android 4.2 system.
Specifications:



LCD Panel	Panel size	22 inch lcd panel
	Aspect Ratio	16:9
	Active Area	473(H)*296(V)mm(16:10)
	Max. Resolution	1366*768
	Dot Pitch	0.118x0.349mm
	Number of Color	16.7M
	Brightness	350cd/m2
	Contrast Ratio	500:1
	Responsive Time	5ms
	Panel Life	above 50000 hours
Android board	All Winner A20 dual core or RK3188
	System Memory: 1 / 2GB Ram, 4 / 8GB NAND Flash
	Video output: HDMI / VGA
	SD Slot, LAN (RJ45), USB
	4*USB, 3*COM, 1*SATA, 4*UART extension port
	Android 4.2 system
	Support RTC (Real time clock)
	Built in loudspeaker 2*3W
Storage Medium	Flash memory card, SD Card	2gb to 36gb for the capacity
Support Ad files	Video formats	MP4(AVI:DIVX/XVID),MPG2 (DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
	Audio formats	MP3
	Photo formats	JPG
OSD Language	English, Chinese, French, German, Italian, Spanish,Arabic
Audio output	stereo L/R, 5W*2, 8Ω
Power supply	AC 110V - 240V, 50/60HZ
Storage Temperature	-7 to 65 Celsius degree
Normal Working Temperature	-5 to 65 Celsius degree



Description:

1. Can play advertising program circularly and automatically when power on.
2. Five timers setting one day (can set 5 timers turning on/off automatically ).
3. Android 4.2 OS LCD Advertising player.
4.Network: Wi-Fi, RJ45 (3G is optional with extra cost of about USD48.95)
5. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
6. Product surface frame are made of high-grade tempered glass protection, abrasion resistance, scratch,
prevent damage
7. Built in IR touch screen, using the latest high precision touch technology, unique circuit design, intelligent
decision and infrared anti interference and other advanced technology, strong stability, sensitive response.
8. Security lock protect media content .
9. Built -in lock and calendar function.
10. Industrial power supply system, with constant temperature cooling system, can meet 24 * 7 consecutive boot.
11. The products pass the national mandatory 3 c authentication, and has the national high and new technology
enterprise development of the software copyright certificate.
12. Supports CF Card, SD card and USB Port; Support Full HD 1080P Video Output; HDMI Port, AV Port and VGA
 Port are available.
13. With super long time setting function, Automatic to play advertising programs , all the year round without the
 personnel control .
14. Ipad style design, ultra-thin design.
15. Shelf/ wall mount, application for retail shop, supermarket.
16. Support many kinds of playback modes, such as circulation, timing, spots and so on.
17. Customized Logo and color of outer frame is OK
18. OTG: Support copy, delete, remove, rename, build new file among different cards.
19. Motion sensor / battery / touch screen optional.

Application:

1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
 large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls

Our competitive advantage:

1. In quality control, using full new imported LCD Panel, professional software and hardware team and QC,using advanced mounting technology, we strictly control every aspect of production , to ensure the quality of the product.
2. Quality Guaranteed, all of our display have to finish more than 48 hours aging test to guarantee A-class quality, 1 year quality guaranteed.
3. Good service,We always try our best to respond your inquiry fastest, which is really very helpful for solving  your problem at any time, our engineer is 12hrs/day on line to help you if you meet any problem, we will track  the entire transport process and report to you timely, till receive all the products which you purchased from our company.
4. Best price, we own developing team and factory, we can control the cost of each material.
5. Saving your dollars, we will help you to find the cheapest and also safest shipping way and shipping company.
6. Best Lead time: 3-5 working time for sample, about 15 days for bulk order.
7. OEM/ODM service. We have engineers, professional team for your OEM/ODM service requirements.
