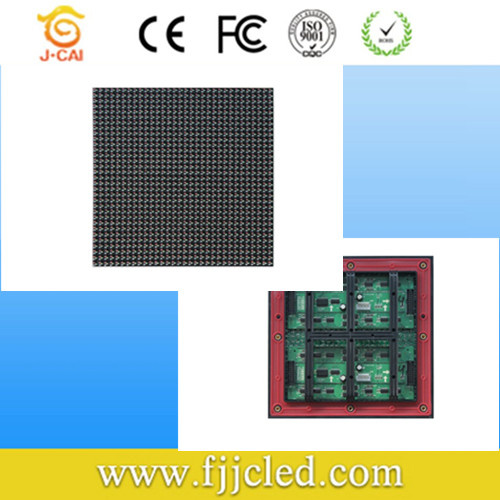

| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
6mm |
| Module Size: |
(W)192mmx(H)192mm |
| Resolution: |
32X32 Dots |
| Density: |
27777dots/Sqm |
| LED Chip: |
Opto+Silan |
| Pixel Color: |
1r1g1b |
| LED Spec: |
DIP 246 |
| Brightness: |
More Than 8000CDS/Sqm |
| Scanning Method: |
1/4 |
| Best View Distance: |
5-150m |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
FCC |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
350W / m² |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777 Dots/Sqm |
Product Description
BRILLIANTOPTO CO., LIMITED
Company Brief Introduction
Founded in 2005, the top 3 in Fujian, China, with registered capital 20.18 million RMB and 40,000 m2 workshop. Quanzhou New Branched Factory founded in 2013, total area 20,000.00 m2, which highly improved our production capability.
Our company specialized in the development and manufacturing of LED display systems. Main products: modules, indoor & outdoor LED display and semi-outdoor LED display. Our company has been awarded CE, RoHS, FCC, IP65, ISO9001 certifications etc,.
A team with 15 professional experts and 400 trained technicians, our technology strength is among the front row in this industry. Strict quality control, quick delivery and good after-service enable us to win trust from the worldwide market.
Through our efforts, our products earned high reputation in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Brilliantopto today!
Why US:
1. CE, RoHS, FCC
2. Low consumption
3. Quality insuranc PCIC
Production:
LED Display /led display screen/led sign/LED video wall
1). Model No.: P6, P8 P10m, P12mm, P16mm, P20mm, P25mm, P31.25mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee: 2 year
| Pixel pitch(mm) | 6mm |
| Size(W×H) | 192mm×192mm |
| Density(dots/ m2) | 27777dots/sqm |
| Resolution(W×H) | 32*32dots |
| Lamp orgin | Opto+Silan |
| Colors | 1R1g1B |
| Led pecs | DIP 246 |
| Module resolution | W32×H32 dots |
| Best viewing distance | 5-150m |
| Best view angle | H120,V90 |
| Environment temperature | -40°C ~ +85°C |
| Working temperature | -20°C ~ +50°C |
| RH | ≤10~90% |
| Module Weight | About 180g |
| Working voltage | 220V±10% |
| Suitable voltage | DC5V |
| Average Power consumption | 220W/m2 |
| Largest power consumption | 500W/m2 |
| Computer | More than p4-80G/512m |
| Control system | WIN 2000/ NT/XP/7 |
| Control method | LINSN synchronous control system |
| Spending card | kilomega network card |
| Scanning method | 4S constant current |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥300HZ |
| Gray color | 4096 lever, can display 16.7M colors |
| Brightness | ≥8000cd/m2 |
| Brightness control lever | software can chance 100 lever |
| Video signal | PAL/NTSC |
| Input/Output | 75 input/75output |
| MTBF | ≥10000H |
| life | 100000H |
| Power | 5V/40A |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
