LED Programmable Moving Message Display
| Price: |
US $ 4.72-4.88/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P10 |
| Usage: |
Text & Message |
| Sign Size: |
670*205*55mm |
| Display Brightness: |
Above 2000CD/Sqm |
| Viewing Distance: |
Best for Above 10m |
| Horizontal View: |
120 Degree |
| Vertical View: |
60 Degree |
| Power Consumption: |
Average 310W/Sqm |
| Control Mode: |
Programmable Via Computer |
| Message Update: |
Via USB, RS232 |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Text Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Advertising |
| Certification: |
FCC,ISO9001,IP65 |
| Pixel Configuration: |
R |
| Average Power Consumption: |
310W/Sqm |
Product Description
LED Programmable Moving Message DisplayProduct Description1) P10 DIP546 led message display is made by first-class LED Lamp, supporting displaying text, graphics with asynchronous mode.
2) High brightness and contrast, good flatness and viewing angle, low energy consumption
3) Easy installation & application, freely meet customers' personalized requirements.
4) Long-term brightness capacity throughout product lifetime
5) Temperature surveillance and humidity display can be extended.
6) General configuration: 200W power supply, controller & iron cabinet
7) Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF.
8) Application location: building facade, roadside column, bank, school, shopping mall, etc.
Introduction to getting started
1) LED display module is used to display lighting moving words/image/video.
2) Different color panels have different functions and are applied in different occasions.
3) Single color display panel is applied in the lintel for shop, bank, enterprise/company building.
4) LED unit panels/modules are assembled into certain sizes to meet customers' personalized requirement.
5) Besides LED panels as main part, power supply and control card are two main functional parts.

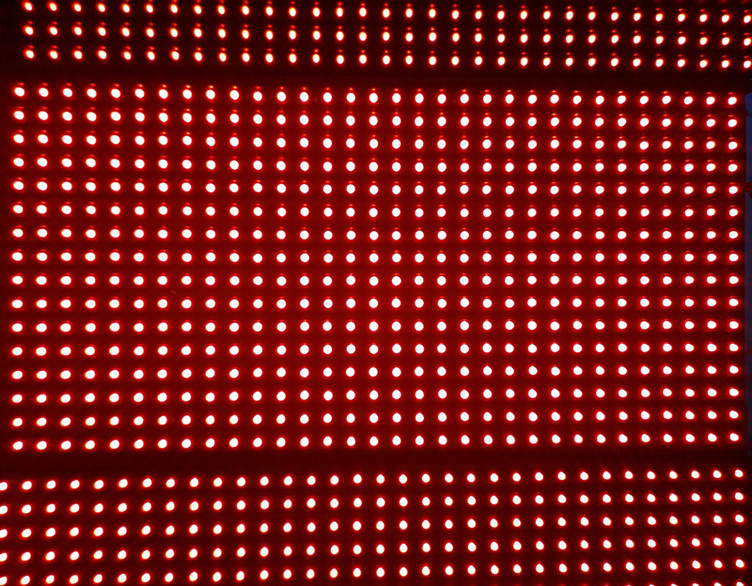

Outdoor Single Red LED Display
1) Brightness above 2000cd/sqm, suitable for outdoor without direct sunshine.
2) Used as advertising text and message moving sign board in different occasions.
3) Can be assembled with other single color modules to create multi-color moving sign.
4) Main accessories: data cable, power cable, water-proofed ring & screws
5) Matching parts: power supply, control card, software, etc.
If LED unit modules will be assembled into a LED moving sign,
What materials do we need?1) LED unit module
The quality of LED module directly affects sign effect.
2) Frame or cabinet
Aluminum Frame or steel cabinet is used to round up modules.
3) Power supply
Switch power supply with AC input and DC output.
4) Control Card
Choose the most suitable control card to guarantee its display effect with lowest expense.
Control mode adapts asynchronous control with off-line function.
(No need to work with computer at the same time.)
5) Date cable & power cable
Data cable is used to connect control card with LED modules and between modules.
Power cable is used to connect power supply with LED module and with control card.Support Accessory
1) Power supply
2) Control card with colorful display function
3) Aluminum frame or steel/aluminum cabinet
Package
We use carton with foam sheet to pack led module.
Cabinet material is usually packed by wooden case.
Flight case is used for packing rental project cabinet.
We will choose the most practical package as to customer's requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package
4) Flight case package with convenient transport.
5) Customizable package can be designed and made
Our Services
1) Responding time to inquiry: within 24 hours
2) OEM&ODM: design and produce your customized requirements.
3) Provide customized design and models from distributors we already have.
4) Protect your sales area, design idea and all your private information.
5) Top quality + reasonable price + patient after-sales service.
6) Our best service starts before order. Related product information will be provided to customers to help him make the decision. Information includes size, color, picture, certificate, packing way, shipping way, etc.
7) As to order production, we update production state and send feedback to customers, keeping them updated with their order, such as finished product quantity, production time, package and also take aging test pictures. After sending goods out, we provide tracking number for customers to track goods state at any time.
8) After-sale service: we provide one year warranty for single/double color and two year for full color. During this period, customers can enjoy maintenance service for free. Related quantities of accessories will be provided to customers for free support.
Other LED Display Products We Provide:| Indoor SMD, Dot Matrix Full Color Series |
| P1.667 | 200*300MM | 120*180 PIXEL | 1R1G1B |
| P1.923 | 200*300MM | 104*156 PIXEL | 1R1G1B |
| P2.0 | 128*128MM | 64*64 PIXEL | 1R1G1B |
| P2.5 | 160*160MM | 64*64 PIXEL | 1R1G1B |
| P3.0 | 192*192MM | 64*64 PIXEL | 1R1G1B |
| | 192*96MM | 64*32 PIXEL | 1R1G1B |
| P4.0 | 256*128MM | 64*32 PIXEL | 1R1G1B |
| P5.0 | 320*160MM | 64*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| | 192*96MM | 32*16 PIXEL | 1R1G1B |
| P7.62 | 244*244MM | 32*32 PIXEL | 1R1G1B |
| | 244*122MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
| |
| Outdoor SMD, Dot Matrix Full Color Series |
| P5.0 | 160*160MM | 32*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| P8.0 | 256*128MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
| | 160*160MM | 16*16 PIXEL | 1R1G1B |
| P12.5 | 400*200MM | 32*16 PIXEL | 1R1G1B |
| P13.33 | 320*160MM | 24*12 PIXEL | 1R1G1B |
| P16 | 256*256MM | 16*16 PIXEL | 1R1G1B |
| P20 | 320*160MM | 16*8 PIXEL | 1R1G1B |
| P25 | 400*200MM | 16*8 PIXEL | 1R1G1B |
Company Information
1) Manufacturer: Brilliantopto Co., Ltd.
2) Foundation year: 2005 with registered capital RMB20.18 million
3) Strength rank: top 3 among same-grade manufacturers in China
4) Workshop area: 40,000 square meters (Headquarter & branch factory)
Mission: Lighten up your vision & make your life brilliant
Values: Be resolute and broad-minded, positive, extend innate knowledge
Vision: Customer first, work hard, work smart and work happy
Slogan: Brilliantopto displays the world
Striving for achievements, fighting for the top.

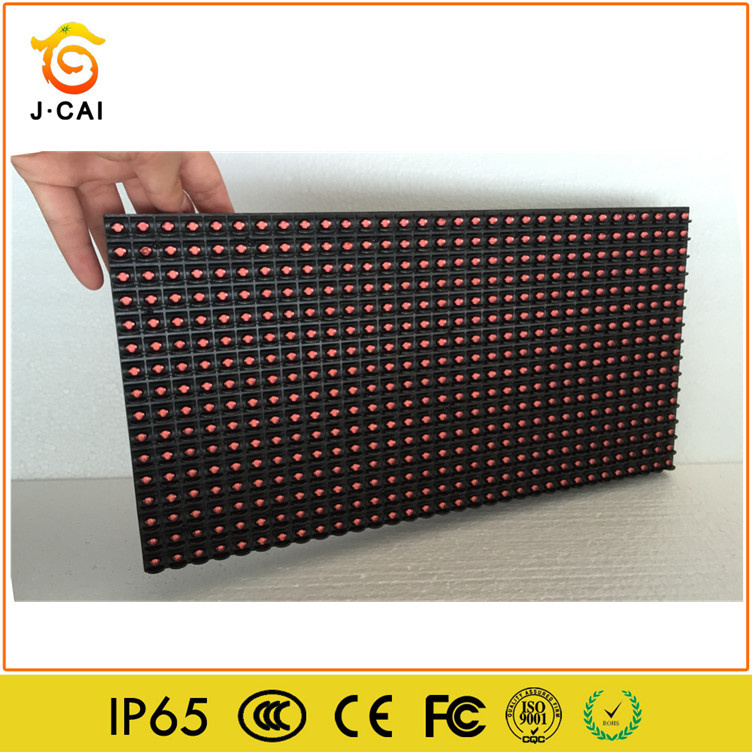

Main Specifications| Brand Name | Brilliantopto |
| Pixel Pitch | 10mm |
| Module Resolution | 32*16 |
| Module Dimension | 320mm*160mm |
| Led Encapsulation | DIP546 |
| Driving IC | 74HC595 |
| Driving Mode | 4S Constant Voltage |
| Display Function | Moving text & message |
| Module Brightness | >2000 cd/sqm |
| Refresh Frequency | >300Hz |
| Max. Power Consumption | 440W/sqm |

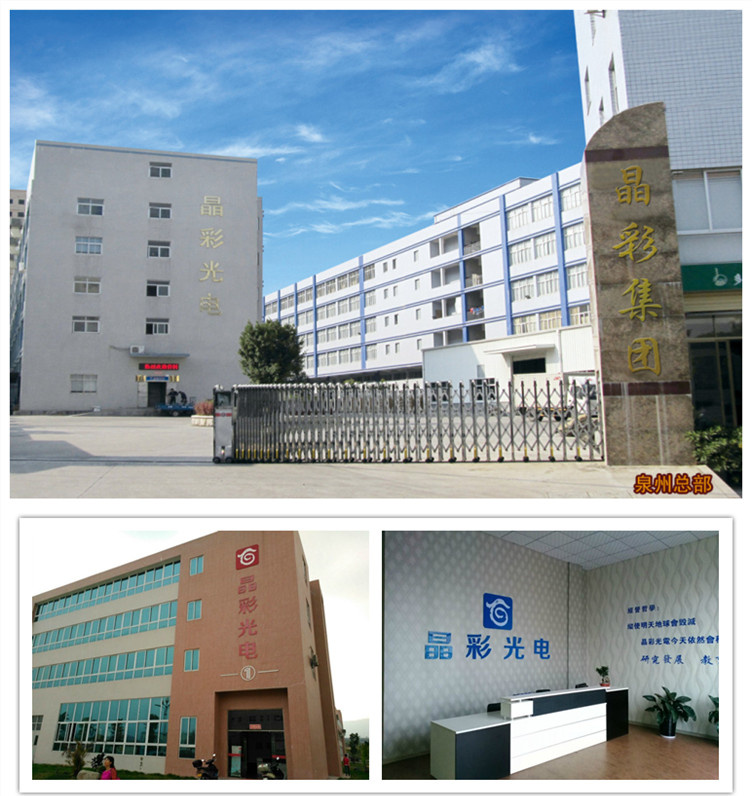

Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
