| Prod Model: |
BST-C1696W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Dot Matrix Display |
| Tube Chip Color: |
Single Color |
| Display Function: |
Text Display |
| Scanning Mode: |
1/16 Scan |
| Application: |
Shopping Guide |
| Pixel Pitch: |
4mm |
| IP Rating: |
IP54 |
| Certification: |
CCC |
| Pixel Configuration: |
Red, Blue, Green, Yellow, White |
| Pixel Density: |
62500 Dots/Sqm |
| System Operating Platform: |
Win XP, Win7, Win 8, Win 8.1 |
Product Description

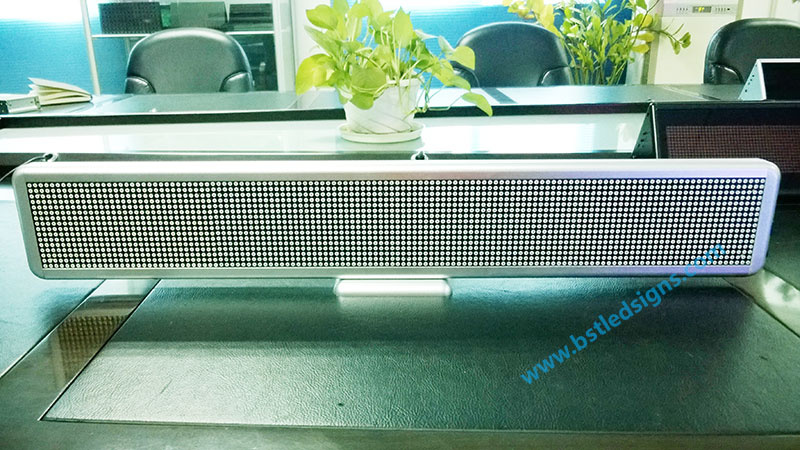

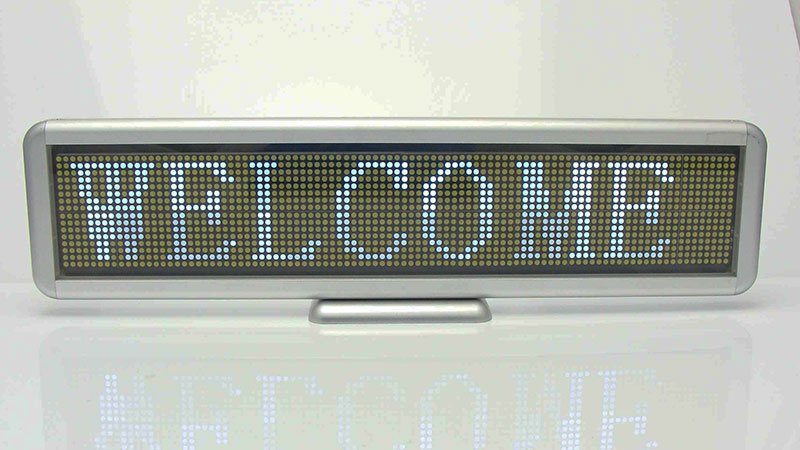

White Color LED Desktop Display 16X96
Feature1. Input: USB Cable from PC / notebook2. Language support:
English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc..
3. Max input letters (Western): 1,500 characters4.

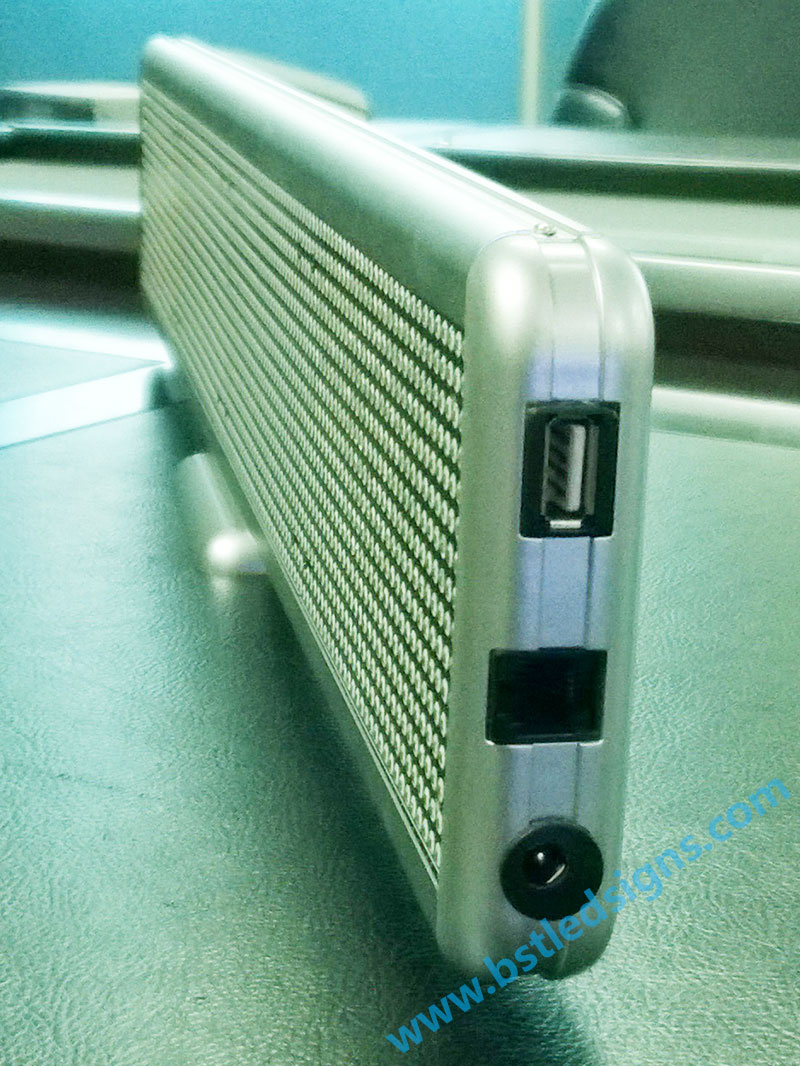

Switch/Port : On/off, Brightness, Message Selection, USB Port (mini-5 pin)
5. Brightness Control: 4 levels (25%, 50%, 75%, 100%)6. 5 action effects
(Scroll from right to left / Snow / Flash / Hold / Hold with circle)7.
Clock support:Time / Date / Year / Day / D-day
8. Power Supply: Build-in
Lithium-Polymer Battery
9. Charging time: 3~4hrs
10. Working time under full charge: 5 ~ 6 Hours at 25% Brightness
11. Charger Type: USB Adapter Enclosed(100~220V AC Input, DC 5V / 1,000 mA Output )12.
Optional Accessories: Tripod Stand, Hand HolderPacking:Packing Size (mm): 550 x 160 x 50mm
Accessories Enclosed: LED Board 1 pcs
USB Cable (70 cm) 1 pcs
USB Adapter 1 pcs
CD (program / manual) 1 pcs
|
Model |
BST-C1696 |
|
Pixel Pitch |
4mm |
|
Screen Size |
384x64mm |
|
Unit Size |
423mmx100mmx20mm |
|
LED Type |
dot matrix |
|
LED Color |
Red, Blue, Yellow, Green, White |
|
Pixel / Unit |
16x96 |
|
Unit Weight |
720g |
|
Viewing Angle |
H140 degree V140 degree |
|
Application |
Storage-40~60° C, Working-20~50° C |
|
Power Supply |
Rechargeable Lithium-Polymer Battery |
