| Prod Model: |
ORD-I-6.25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15~25 Working Days |
| Warranty Time: |
2 Years |
| Cabinet Size: |
500X500mm |
| OEM: |
Yes |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
ETL |
| Pixel Pitch: |
6.25mm |
| Average Power Consumption: |
420W/Sqm |
| Pixel Density: |
25600 Pixels/Sqm |
| Scanning Mode: |
1/13 Scan |
Product Description

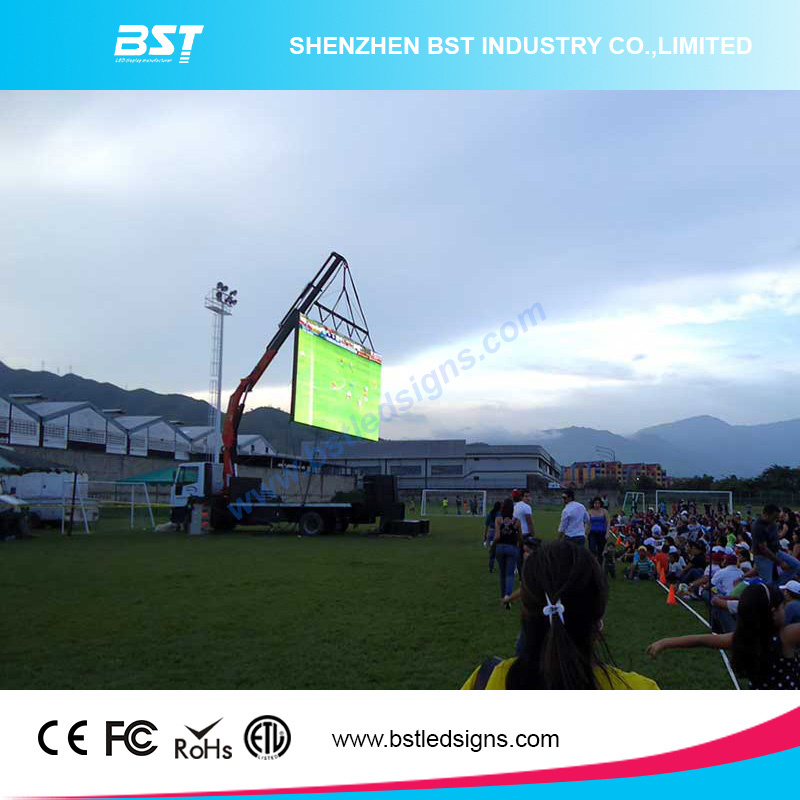

P6.25mm Rental Full Color Outdoor LED Screen Display
Application
BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.
Feature
1. Standard cabinet design and component design
The size of this LED display screen cabinet is only 500x500mm, adopt industry-standard connector. Reduces maintenance time and costs.
2. Lightweight, ultra slim and Seamless splicing
The weight of this LED display screen cabinet is only 9kg, ultra slim, very easy to transport, stock and install. Seamless splicing and advance visual performance.
3. Fanless design, silent operation low heat generated
Low voltage input, low heat generated and fanless design, advance LED Screen reliability.
4. IP65 rated Weatherproof Class
Special designed cabinet for outdoor environment, waterproof LED module with Glue filling technology, standard signal & power interface with waterproof function.
5. Wide Viewing angles, High contrast ratio
Horizontally 140 degree, Vertically 140 degree wide viewing angles.
6. High brightness make sure visibility
Brightness is higher than 5500nits make sure visibility even directly under sun light.
Specification
| Model | ORD-I-6.25 |
| Pixel Pitch | 6.25mm |
| Pixel Density | 25600 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500mmx500mm |
| Cabinet Resolution | 80*80pixels |
| Cabinet Weight | 9kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >5500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/10 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0003 |
