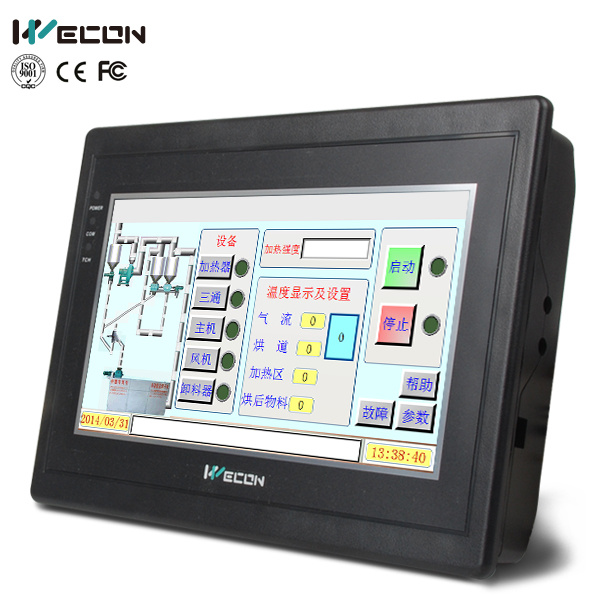

Wecon 7 Inch TFT HMI LCD Touch Screen for Android Tablet PC (2 serial ports)
| Price: |
US $ 120-132/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LEVI-700E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Arm9 2416 400MHz |
| Resolution: |
800*480 |
| Color: |
65536 Color |
| Power Supply: |
12-28V Voltage |
| Ports: |
2 Serial Ports, RS232/RS485/RS422 |
| USB: |
Host and Device |
| SD Card: |
Supported |
| Case Material: |
ABS |
| Software: |
Levistudio |
| Screen Size: |
0-5'' |
| Touch Screen: |
Touch Screen |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| CPU Type: |
Am9 |
Product Description
SPECIFICATIONS
Item | LEVI430T | LEVI700E | LEVI700EL |
General | Screen Size | 4.3 Inch | 7 Inch | 7 Inch |
Resolution | 480*272 | 800*480 | 800*480 |
Color | 65536 color |
Brightness | 300 cd/m2 |
Backlight | LED |
Touch Screen | High precision four-wire resistive |
Backlight Life | 50000 hours |
CPU | 32-bits 400MHz RISC |
Storage | 128M FLASH + 64M DDRAM |
RTC | 256KB |
Printer Port | USB printer/ Serial port Printer |
USB Port | USB Host + USB Client |
COM | COM1 | RS232/RS422/RS485 (RS232+RS422) | RS232/RS422/RS485 | RS232/RS422/RS485 |
COM2 | RS232/RS485 | -- |
COM3 | -- | Optional | -- |
Power | Power | < 5W | < 8W | < 8W |
Power Supply | DC 24V (12 ~ 28V DC) |
Allowed Power Fail | < 5ms |
Insulation Resistance | > 20MΩ 500VDC |
Withstand Voltage | 500V AC <1 minute |
Dimension | Shell | ABS, Black |
Dimension (mm) | 138.0W*86.0H*37.0D | 212.0W*146.0H*36.0D | 212.0W*146.0H* 36.0D |
Mounting size (mm) | 131.0W* 79.0H | 192.0W*138.0H | 192.0W* 138.0H |
Net / Gross (KG) | 0.3/0.6 | 0.6/1.0 | 0.6/1.0 |
Operate Environment | Temperature | Working Temperature:-10 ~ 60ºC; Storage Temperature:-20 ~ 70ºC |
Humidity | Working humidity:10 ~ 90%RH; Storage humidity:10 ~ 90%RH |
Seismic Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
Cooling | Air cooling |
Extension | Ethernet | -- | LEVI 700E-N | -- |
CAN | LEVI 430T-C | LEVI 700E-C | -- |
TTS | -- | LEVI 700E-TTS | -- |
COM3 | -- | LEVI 700E-E | -- |
Protection | IP65 ((Front panel)) |
CE Certification | EN61000-6-2:2005, EN61000-6- 4:2007 Standard |
FCC Certification | FCC Class A |
PROGRAMMING SOFTWARE
Wecon LeviStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. LeviStudioU allows displaying or editing multi language for HMI screen. And it is totally free for its user.
PLC SUPPORT
Brand | Supported Model / Protocol |
Wecon | LX Series PLC / User-Defined Protocol |
Allen-Bradley | MicroLogix 1000/1200/1400/1500 SLC 5/03 5/04 5/05 PLC-5 DF1 CompactLogix 1769 series |
ABB | PM 571/581/591 |
Yudian | BoTa AIBus Protocol |
CANBus | Open CAN / CAN J1939 |
Crouzet | M3 FBD |
Danfoss | FC Series / GLP-NV |
Delta | DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series |
Emerson | DKG2 / EC20 series 984 RTU Slave Modbus |
Fuji | SPB NB |
FB | FB RS484 Protocol |
Fatek | FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT |
Facon | FB Series RS232 (RS232-RTS) / RS485 Modbus |
IDEC | FC4A-C10R2 |
ICPDCS | I-7000 Series |
Koyo | K / Direct Series |
Keyence | KV Series |
LG | K120S / K300S / KCNet / XGB / LG-Bus ASCII |
Omron | HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z |
Panasonic | FP NEWTOCOL |
Mitsubishi | FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 / |
Shinko | CxT series / DCL / PC-900 |
Schneider | Electric Twido Modbus / Modicon Modbus RTU |
IMD H00 | IMD H00 ModBus RTU Slave |
TECO | TP01 / TP02 / TP03 Series |
Hollysys | LK / LM Modbus Tcp |
Yaskawa | NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series |
Yokogawa | FA-M3 Series Modbus |
Regin | Regin PLC |
LG | K120S / K300S |
Inovance | Whole Series |
Modbus RTU | Slave / Master |
Modbus ASCII | Slave / Master |
Modbus TCP / IP | Slave / Master |
Vigor | Vigor PLC |

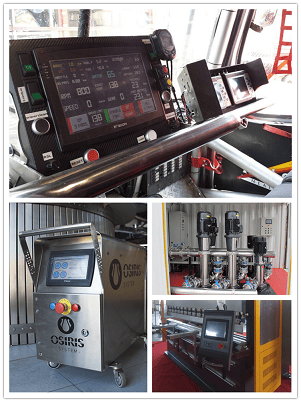

APPLICATIONS
WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.
FACTORY
Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface (HMI), programmable logic controller(PLC).
WARRANTY & SHIPMENT
All of Wecon products are covered 18 month warranty.
Normally we ship out the goods within 5 days after payment received.
WECON Technology Co., Ltd. (commonly referred to as WECON) is a Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface, programmable logic controller. WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.
WECON has attained significant development in human-machine interface products, its independent research and development of programmable controller (PLC) products began in 2010 officially came into the market in June 2012. The emergence of WECON LX series PLC means that the company has again mastered a core technology in the field of automation, indicating that the product lines of WECON began to expand horizontally.
With complete and regular production procurement channels, a rigorous and scientific quality management system, a simple and efficient mechanism for innovative research and development, we provide services to users wholeheartedly, as well as automation technologies and products with better quality, easier application and more reliable technologies.
Since its establishment, the company has gathered a large number of young and vibrant high-tech talents obtained a lot of core technologies in automation industry and product development, accumulated valuable experience in serving users, and formed many effective scientific management systems. All of these are the keys to our success.
