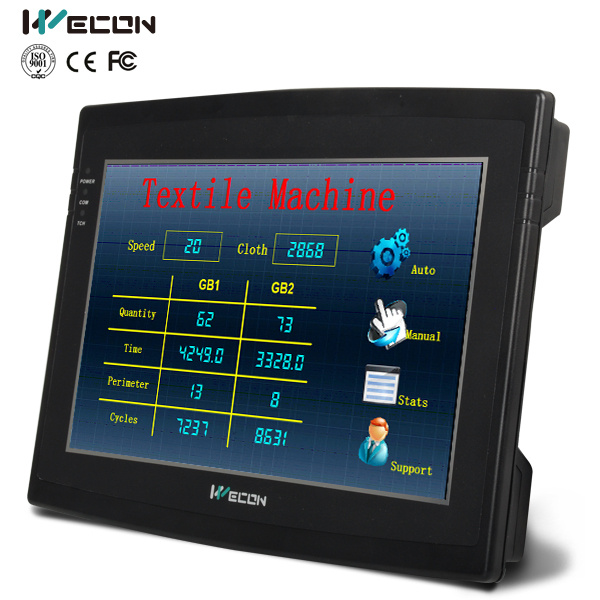

Wecon 10.2'' Good Performance LCD Display HMI (LEVI-102E)
| Price: |
US $ 220-242/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LEVI-102E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Arm9 2416 400MHz |
| Resolution: |
800*480 |
| Color: |
65536 Color |
| Power Supply: |
12-28V Voltage |
| Serial Port: |
2 Serial Ports, RS232/RS485/RS422 |
| USB: |
Host and Device |
| SD Card: |
Supported |
| Case Material: |
ABS |
| Software: |
Levistudiou |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
Product Description
SPECCIFICATIONS
Items | LEVI102E | LEVI102EL | LEVI910T |
General | Screen Size | 10.2 Inch | 10.2 Inch | 10.4 Inch |
Resolution | 800*480 | 800*480 | 800*600 |
Color | 65536 Color |
Brightness | 300 cd/m2 |
Backlight | LED |
Touch Screen | High precision four-wire resistive |
Backlight Life | 50000 hours |
CPU | 32-bits 400MHz RISC |
Storage | 128M FLASH + 64M DDRAM |
RTC | 256KB |
Printer Port | USB printer/ Serial port Printer |
USB Port | USB Host + USB Client |
COM | COM1 | RS232/RS422/RS485 | RS232/RS422/RS485 | RS232/RS422/RS485 |
COM2 | RS232/RS485 | -- | RS232/RS485 |
COM3 | Optional | -- | Optional |
Power | Power | Less than 8W | Less than 8W | Less than 10W |
Power Supply | DC 24V (12 ~ 28V DC) |
Allowed Power Fail | DC 24V (12 ~ 28V DC) |
Insulation Resistance | < 5ms |
Withstand Voltage | Upon 20MΩ 500VDC |
Dimension | Shell | 500V AC <1 minute |
Dimension (mm) | 272.0W*190.5H*36.0D | 272.0W*195.5H*36.0D | 299.0W*222.0H*54.0D |
Mounting size (mm) | 260.0W*179.0H | 260.0W*179.0H | 288.0W*212.0H |
Net / Gross (KG) | 1.2 / 1.7 | 1.2 / 1.7 | 1.9 / 2.5 |
Environment | Temperature | Working Temperature:-10 ~ 60ºC; Storage Temperature:-20 ~ 70ºC |
Humidity | Working humidity:10 ~ 90%RH; Storage humidity:10 ~ 90%RH |
Seismic Resistance | 10 ~ 25 Hz (X,Y,Z direction 2G/30 minutes) |
Cooling | Air cooling |
Extension | Ethernet | LEVI 102E-N | -- | LEVI 910T-N |
CAN | LEVI 102E -C | -- | -- |
TTS | LEVI 102E -TTS | -- | -- |
COM3 | LEVI 102E -E | -- | LEVI 910T-E |
Protection | IP65 (Front panel) |
CE Certification | EN61000-6-2:2005, EN61000-6- 4:2007 Standard |
FCC Certification | FCC Class A |
PROGRAMMING SOFTWARE
Wecon LeviStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. LeviStudioU allows displaying or editing multi language for HMI screen. And it is totally free for its user.
PLC SUPPORT
Brand | Supported Model / Protocol |
Wecon | LX Series PLC / User-Defined Protocol |
Allen-Bradley | MicroLogix 1000/1200/1400/1500 SLC 5/03 5/04 5/05 PLC-5 DF1 CompactLogix 1769 series |
ABB | PM 571/581/591 |
Yudian | BoTa AIBus Protocol |
CANBus | Open CAN / CAN J1939 |
Crouzet | M3 FBD |
Danfoss | FC Series / GLP-NV |
Delta | DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series |
Emerson | DKG2 / EC20 series 984 RTU Slave Modbus |
Fuji | SPB NB |
FB | FB RS484 Protocol |
Fatek | FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT |
Facon | FB Series RS232 (RS232-RTS) / RS485 Modbus |
IDEC | FC4A-C10R2 |
ICPDCS | I-7000 Series |
Koyo | K / Direct Series |
Keyence | KV Series |
LG | K120S / K300S / KCNet / XGB / LG-Bus ASCII |
Omron | HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z |
Panasonic | FP NEWTOCOL |
Mitsubishi | FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 / |
Shinko | CxT series / DCL / PC-900 |
Schneider | Electric Twido Modbus / Modicon Modbus RTU |
IMD H00 | IMD H00 ModBus RTU Slave |
TECO | TP01 / TP02 / TP03 Series |
Hollysys | LK / LM Modbus Tcp |
Yaskawa | NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series |
Yokogawa | FA-M3 Series Modbus |
Regin | Regin PLC |
LG | K120S / K300S |
Inovance | Whole Series |
Modbus RTU | Slave / Master |
Modbus ASCII | Slave / Master |
Modbus TCP / IP | Slave / Master |
Vigor | Vigor PLC |

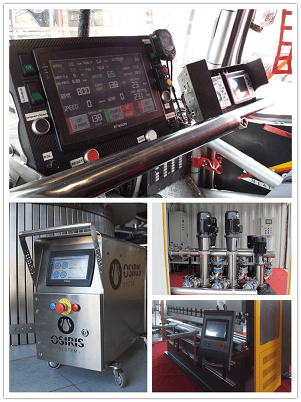

APPLICATIONS
WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.
FACTORY
Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface (HMI), programmable logic controller(PLC).
WARRANTY & SHIPMENT
All of Wecon products are covered 18 month warranty.
Normally we ship out the goods within 5 days after payment received.
